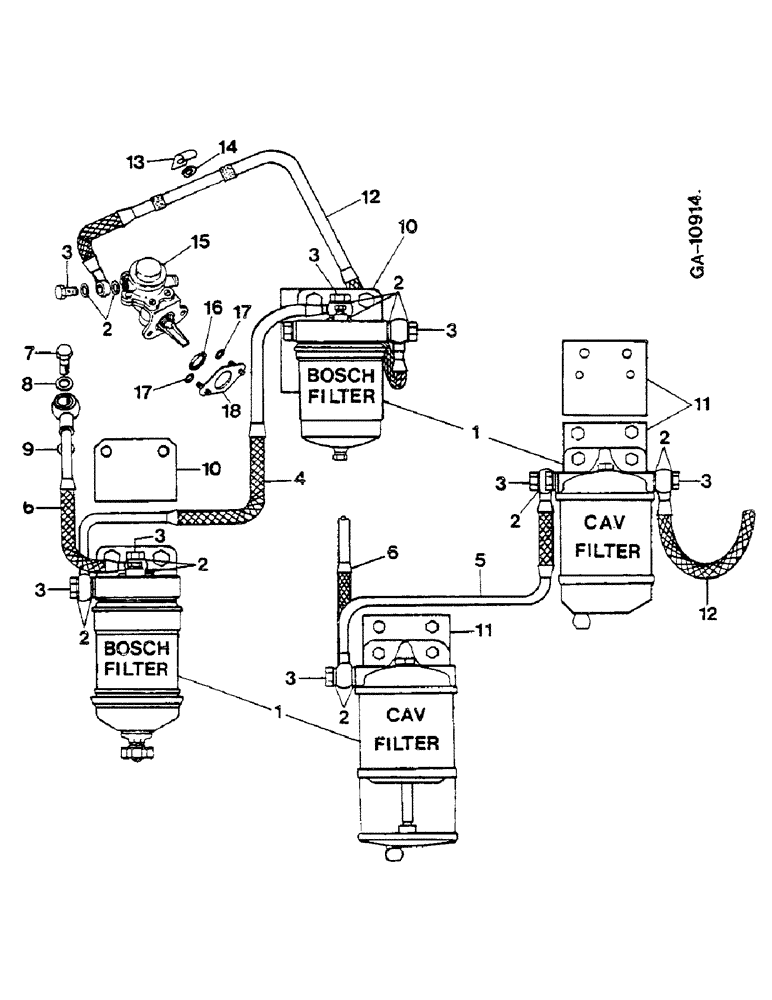

Запчасти Case IH D-179 (11-043) - FUEL FILTER AND LINES

1

NSS

NOT SOLD SEPARAT

FILTER, FUEL "BOSCH AND CAV"

1шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

3

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

1шт.

4

3228144R1

FUEL HOSE

"BOSCH"

1шт.

5

3228145R1

HOSE, "CAV"

1шт.

6

3218479R1

LINE

PIPE, FUEL

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW M12

1шт.

8

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

9

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

10

3059289R1

PLATE

SPACER "BOSCH"

2шт.

11

3132489R2

PLATE

SPACER "CAV"

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

4шт.

12

3228143R1

PIPE

SPARE PART FUEL

1шт.

13

3132052R1

CLIP

PIPE

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

14

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

15

NSS

NOT SOLD SEPARAT

PUMP, FEED

1шт.

16

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

17

3228345R1

O-RING

2шт.

18

3055391R41

RETAINER

FLANGE, FEED PUMP, WITH STUD

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

SPRING 6 MM

2шт.
