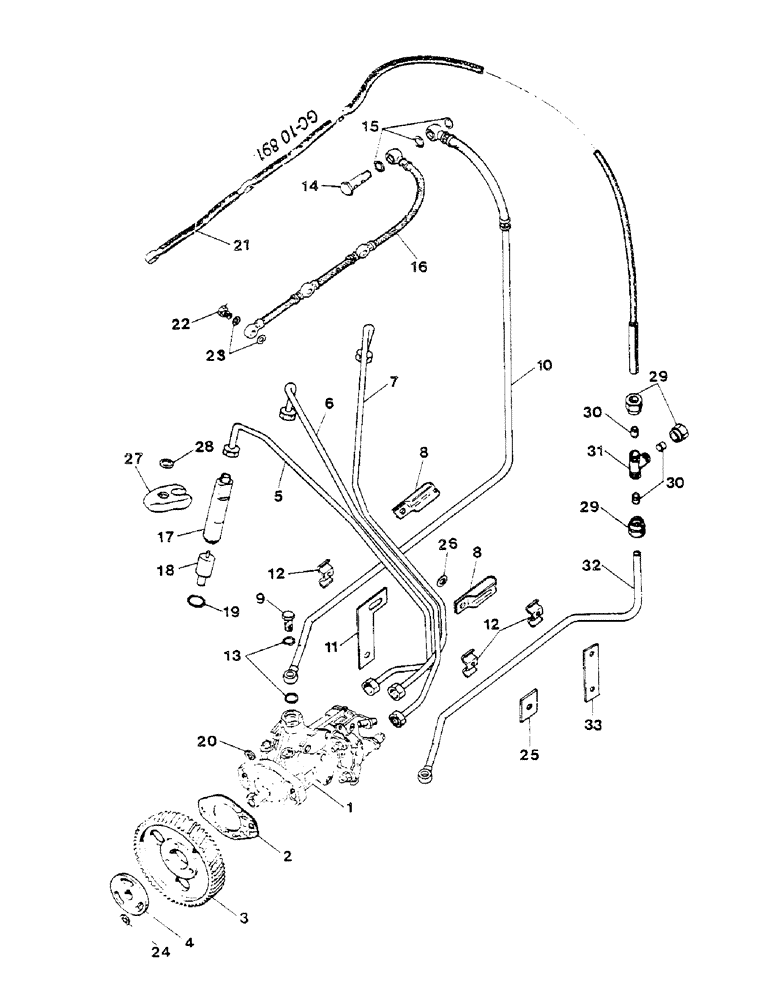

Запчасти Case IH D-179 (11-006) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

1

NSS

NOT SOLD SEPARAT

PUMP, INJECTION

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

933834R1

LOCK WASHER,M12

12 MM

1шт.

2

3055384R1

GASKET

1шт.

3

3055066R3

GEAR

INJECTION PUMP - 66 TEETH - 633 HD+GD

1шт.

3

3056885R3

PINION

GEAR, INJECTION PUMP - 66 TEETH - 248, 484, 2530 TC

1шт.

4

3055067R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

5

3218140R1

FUEL TUBE

INJECTION CYLINDER 1 - 633 HD+GD

1шт.

5

3218136R1

PIPE

INJECTION CYLINDER 1 - 248, 484, 2530TC

1шт.

6

3218141R1

FUEL TUBE

INJECTION CYLINDER 2 - 633 HD+GD

1шт.

6

3218137R1

FUEL TUBE

INJECTION CYLINDER 2 - 248, 484, 2530TC

1шт.

7

3218142R1

FUEL TUBE

INJECTION CYLINDER 3 - 633 HD+GD

1шт.

7

3218138R1

FUEL TUBE

INJECTION CYLINDER 3 - 248, 484, 2530TC

1шт.

8

3132755R1

SUPPORT

CLAMP

2шт.

8

3218242R1

CLAMP

MOULDED RUBBER INSERT

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

9

3059086R1

BANJO BOLT

SCREW, HOLLOW M12

1шт.

10

3144206R1

PIPE

LINE, OVERFLOW - 633GD

1шт.

11

3055678R1

PLATE

BRACKET, ANGLE

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

12

3055386R1

CLAMP

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

14

711734R2

SCREW

HOLLOW M14

1шт.

15

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

16

3218127R1

LINE

LINE LEAK - 633 GD

1шт.

17

NSS

NOT SOLD SEPARAT

HOLDER, NOZZLE

3шт.

18

3218248R1

NOZZLE CAP

3шт.

18

3218251R2

NOZZLE CAP

2530TC ONLY

3шт.

19

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

3шт.

20

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

21

3218126R1

TUBE

LINE LEAK - 633HD, 248, 484, 2530TC

1шт.

22

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

3шт.

23

933696R1

SEALING RING,M6 x 10 x 1

Packing

6шт.

24

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.

25

3132318R1

PLATE

633

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

26

20285H

WASHER

1шт.

27

3218128R1

RETAINER

HOLDER

3шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

28

3218129R1

WASHER

3шт.

29

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

1шт.

30

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

1шт.

31

3056138R1

TEE,M8 Tube

UNION, T - 633HD

1шт.

31

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T - 248, 484, 2530 TC

1шт.

32

3144414R1

PIPE

LINE OVERFLOW

1шт.

33

3132174R1

LINK

FIXING - 248, 484, 2530 TC

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.
