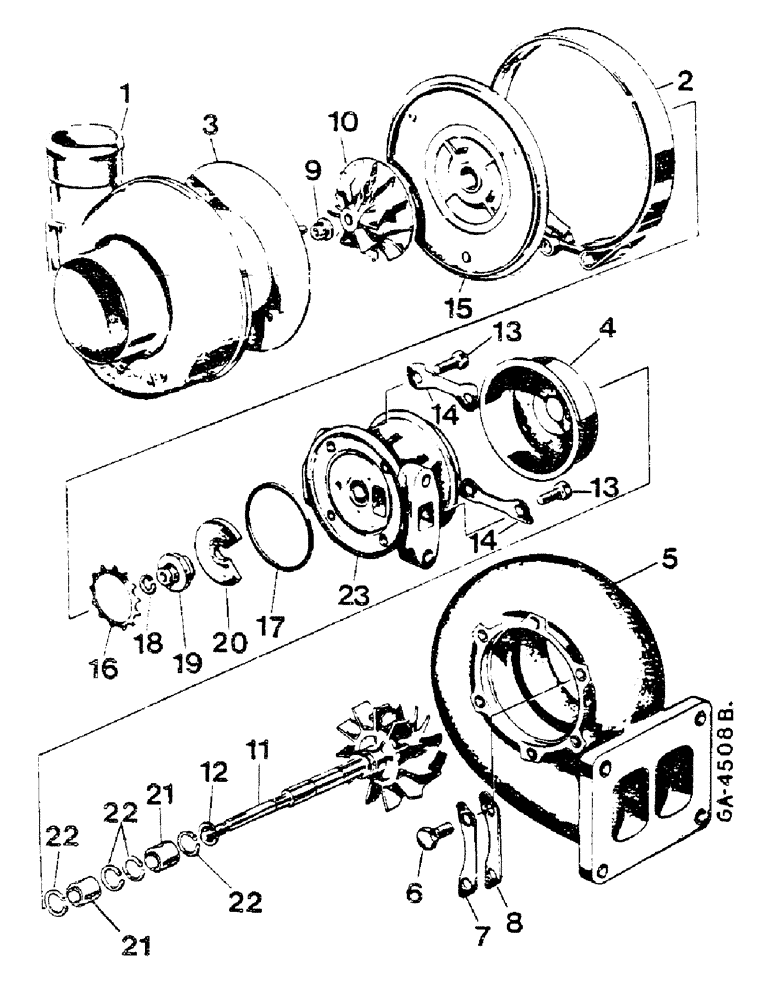

Запчасти Case IH D-155 (15-11) - TURBOCHARGER, C

3144355R92

TURBOCHARGER

CONSISTS OF ITEMS 1 THRU 23

1шт.

1

3078854R2

HOUSING

TURBOCHARGER

1шт.

2

702327C91

CLAMP

1шт.

3

3078856R1

PLATE

DIFFUSER

1шт.

4

627771C1

SHROUD

HOUSING

1шт.

5

3078857R1

HOUSING

TURBINE

1шт.

6

684246C1

BOLT

6шт.

7

615739C1

PLATE, LOCKING

3шт.

8

684245C1

CLAMP

3шт.

9

615741C1

LOCK NUT

LOCKING

1шт.

10

3078862R1

TURBINE

IMPELLER

1шт.

11

3078863R1

TURBINE

1шт.

12

3078864R1

RING

PISTON

1шт.

13

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

1/4 X 16 MM

4шт.

14

625675C1

PLATE, LOCKING

2шт.

15

627772C91

PLATE

WITH ITEM 6

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING

1шт.

17

343847R1

SEALING RING

SEALING

1шт.

18

615746C1

RING

PISTON

1шт.

19

615745C1

COLLAR

RING, THRUST

1шт.

20

627773C1

THRUST BEARING

THRUST

1шт.

21

680444C1

BUSHING

2шт.

22

627774C1

RING

RETAINING

4шт.

23

684360C91

HOUSING

WITH ROLL PIN

1шт.

3078878R91

PACKAGE, REPAIR

SERVICE TURBOCHARGER WITH ITEMS, 6, 7, 9, 12 THRU 14, 17, 18, 20 THRU 22, NOT ILLUSTRATED

1шт.
