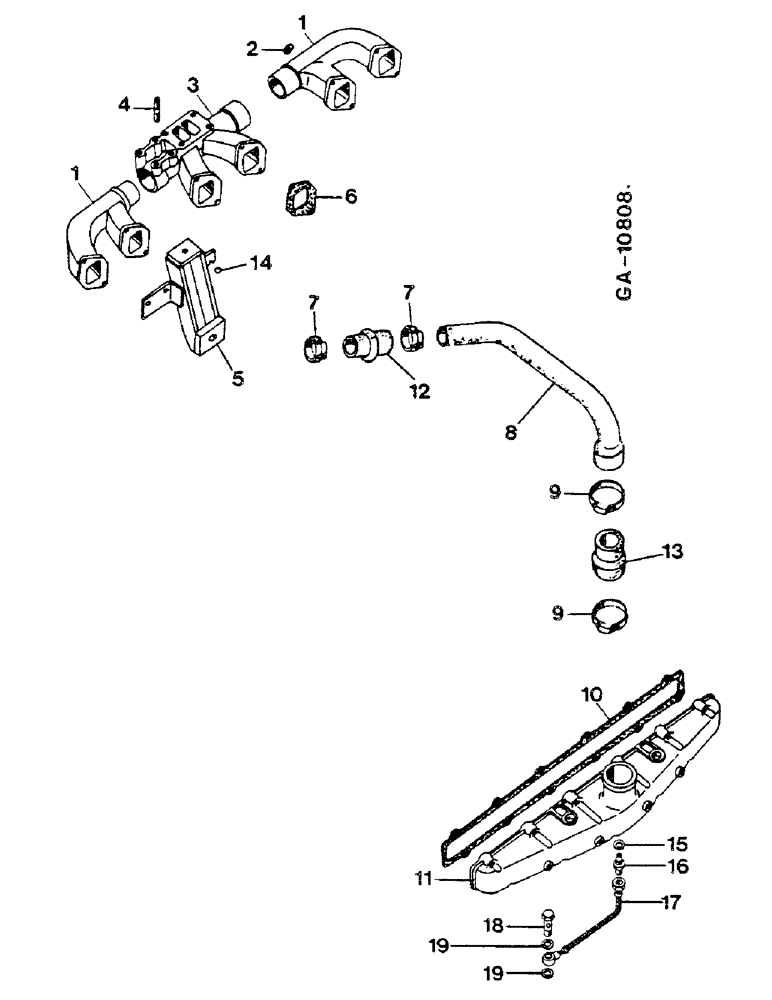

Запчасти Case IH D-155 (14-12) - MANIFOLDS

1

3132081R1

MANIFOLD

SPARE PART EXHAUST

2шт.

2

20285H

WASHER

12шт.

3

3132080R11

MANIFOLD

EXHAUST WITH ITEM 4

1шт.

103026

NUT,3/8"-24, G5

12шт.

4

3055663R1

STUD

1шт.

103026

NUT,3/8"-24, G5

1шт.

5

3218063R1

BRACKET

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

413-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

9/16 X 38 MM

1шт.

103324

LOCK WASHER,9/16"

1шт.

103321

LOCK WASHER,3/8"

1шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

6шт.

7

3218259R1

CLAMP,M40-60, Worm

40-60 DIA

2шт.

8

3228546R1

ELBOW

1шт.

9

3218259R1

CLAMP,M40-60, Worm

40-60 DIA

1шт.

9

684073C1

CLAMP

42-60 DIA

1шт.

10

3055399R1

MANIFOLD GASKET

1шт.

11

3132076R2

MANIFOLD

INTAKE

1шт.

11

3218903R2

MANIFOLD

INTAKE (858F ONLY)

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

12шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16")

12шт.

12

670040C2

HOSE,1.96" ID x 2.50", SAE J200

1шт.

13

683745C2

HOSE

1шт.

14

3057655R2

WASHER

1шт.

15

48166H

WASHER

PACKING

1шт.

16

3132078R1

UNION

1шт.

17

3132079R1

HOSE

CONNECTING FOR INJECTION PUMP - 943

1шт.

17

3218453R1

HOSE

CONNECTING, FOR INJECTION PUMP - 953, 858F

1шт.

18

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW - 943

1шт.

18

710672R1

BANJO BOLT,3mm Tube

HOLLOW - 953, 858F

1шт.

19

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

943

1шт.

19

3053133R1

SEALING RING,M8 x 11.5 x 1

PACKING - 953, 858F

1шт.
