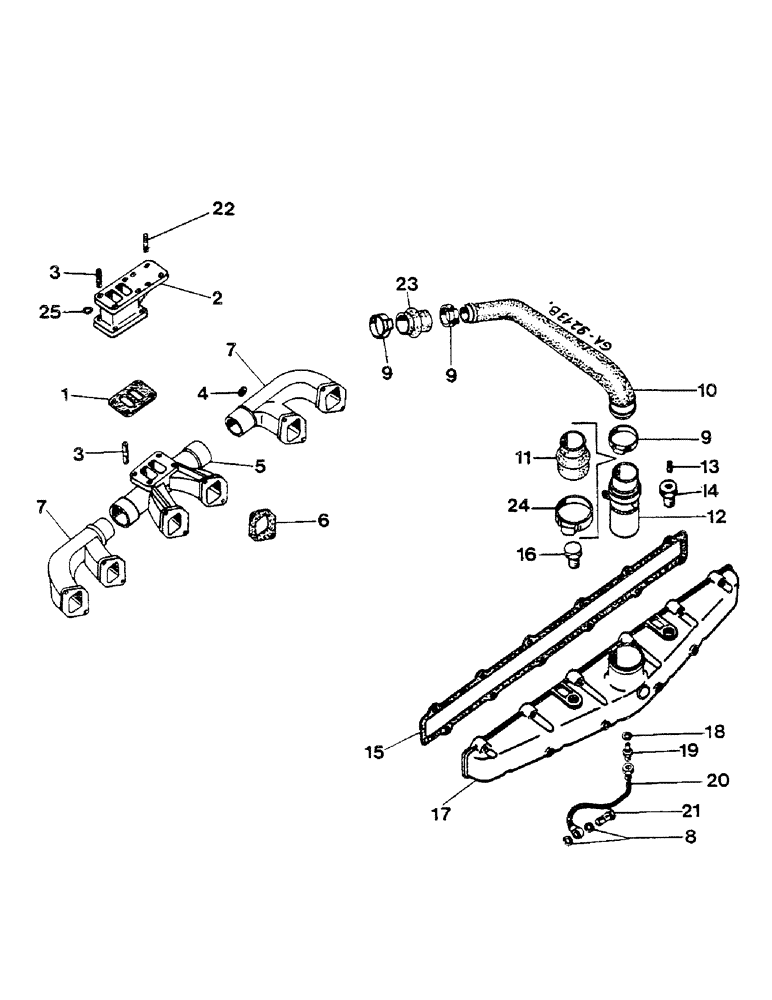

Запчасти Case IH D-155 (14-09) - MANIFOLDS

1

3132090R1

GASKET

1шт.

2

3218028R92

ELBOW

SUPPORT, WITH ITEMS 3 AND 22

1шт.

232-4636

LOCK NUT,3/8"-24, GC

3шт.

3

3055663R1

STUD

12шт.

4

20285H

WASHER

12шт.

5

3218024R91

MANIFOLD

EXHAUST CENTRE

1шт.

103026

NUT,3/8"-24, G5

4шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

6шт.

7

3218026R1

MANIFOLD

EXHAUST, OUTER

2шт.

103026

NUT,3/8"-24, G5

8шт.

8

3053133R1

SEALING RING,M8 x 11.5 x 1

PACKING

2шт.

9

3218259R1

CLAMP,M40-60, Worm

3шт.

10

3228545R1

TUBE

1шт.

11

3228560R1

LARGE HOSE

HOSE,LARGE

1шт.

12

3055580R91

TUBE

HEATING COIL

1шт.

12

3059463R91

COIL

PIPE, HEATING COIL - OPTIONAL

1шт.

13

445684

PLUG

1шт.

14

3146564R1

UNION

1шт.

15

3055399R1

MANIFOLD GASKET

1шт.

16

3136229R1

PLUG,7/8" - 14

1шт.

17

3132076R2

MANIFOLD

INTAKE

1шт.

17

3144666R92

MANIFOLD

INTAKE, WITH ITEM 12

1шт.

17

3055275R4

MANIFOLD

INTAKE - UP TO S/N XXX - UNIT II

1шт.

17

3136236R92

MANIFOLD

INTAKE - WITH ITEM 12 - UP TO S/N XXX - UNIT II

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

12шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16")

12шт.

18

48166H

WASHER

RING, PACKING

1шт.

19

3132078R1

UNION

1шт.

20

3218453R1

HOSE

1шт.

21

710672R1

BANJO BOLT,3mm Tube

HOLLOW

1шт.

22

3228189R1

STUD

1шт.

23

670040C2

HOSE,1.96" ID x 2.50", SAE J200

1шт.

24

684073C1

CLAMP

1шт.

25

25896R1

WASHER,13/32" x 13/16" x .09", HDN

4шт.
