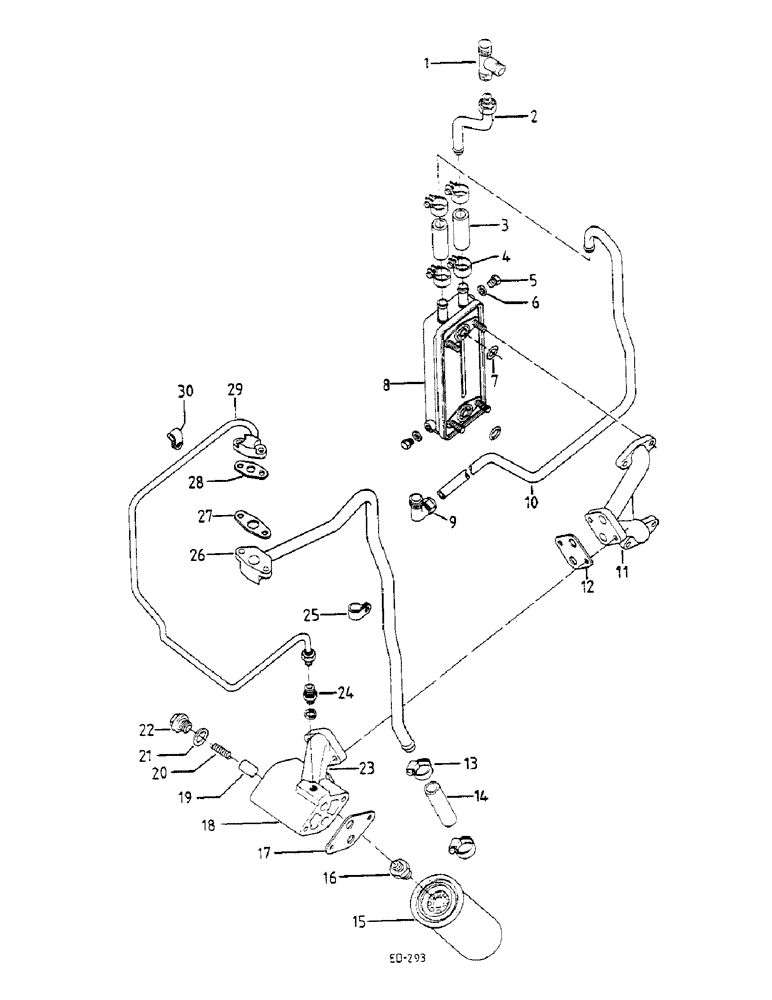

Запчасти Case IH D-155 (13-21) - OIL FILTER, OIL COOLER

1

3401357R1

UNION

T

1шт.

2

3228741R1

PIPE ASSY.

OIL COOLER WATER INLET

1шт.

3143333R1

TUBE NUT,Coupling, M22 x 1.5

TUBE

1шт.

3143334R1

OLIVE

SLEEVE, FERRULE

1шт.

3

3136370R1

HOSE,16.00 mm ID x 65.00 mm

Connecting

2шт.

4

3143364R1

CLAMP,19mm - 23mm

HOSE

4шт.

5

934359R1

PLUG

FILLER AND DRAIN

2шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

SEALING

2шт.

7

350684

O-RING

2шт.

8

3228231R1

VALVE COVER

COOLER, OIL - WITH ITEMS 5 AND 6

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

9

3058712R91

90 ELBOW

1шт.

10

3228742R1

PIPE ASSY.

OIL COOLER TO THE THERMOSTAT HOUSING

1шт.

3143333R1

TUBE NUT,Coupling, M22 x 1.5

TUBE

1шт.

3143334R1

OLIVE

SLEEVE, FERRULE

1шт.

11

3136403R1

ELBOW

MANIFOLD, OIL COOLER

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

DISC

2шт.

12

3136404R1

GASKET

1шт.

13

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING

2шт.

14

3144812R2

HOSE

1шт.

15

3132737R93

FILTER, ENGINE OIL

FILTER, OIL

1шт.

16

3136308R1

CONNECTOR, ELEC

CONNECTOR THREADED

1шт.

17

3228512R1

SEAL ASSY.

1шт.

18

3228737R1

BASE

OIL FILTER

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

HEX HD 3/8-16 X 3-1/2

2шт.

3144513R1

SPRING WASHER

SPRING

2шт.

19

251400

DECAL KIT

VALVE, OIL COOLER RELIEF

1шт.

20

279163R1

SPRING

OIL COOLER RELIEF VALVE

1шт.

21

3058431R1

COPPER WASHER

RELIEF VALVE PLUG

1шт.

22

3138581R1

PLUG

RELIEF VALVE

1шт.

23

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

24

606819C1

CONNECTOR, ELEC

CONNECTOR

1шт.

25

3144904R1

CLAMP

OIL DRAIN TUBE

1шт.

931364R1

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

HEX HD M5 X 20

1шт.

933187R1

NUT,M5, Cl 8

HEX M5

1шт.

933844R1

LOCK WASHER,M5

SPRING LOCK

1шт.

25

315594R1

CLAMP

OIL DRAIN TUBE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

670278R1

WASHER

HARDENED

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

95-11041

WASHER,3/8"

Optional

1шт.

26

3228744R1

TUBE

OIL DRAIN

1шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

HEX HD

2шт.

933334R1

LOCK WASHER,M8

2шт.

27

3144359R1

GASKET

TURBO OIL DRAIN

1шт.

27

670079C1

GASKET

TURBO OIL DRAIN - OPTIONAL

1шт.

28

3132062R1

GASKET

TURBO OIL INLET

1шт.

28

253660R1

GASKET

TURBO OIL INLET - OPTIONAL

1шт.

29

3228743R1

PIPE ASSY.

TURBO OIL INLET

1шт.

930224

BOLT, HEX HD

2шт.

933334

WASHER, SPRING LOCK

2шт.

3228191R1

SEALING WASHER

SLEEVE

1шт.

3143333R1

TUBE NUT,Coupling, M22 x 1.5

TUBE

1шт.

3143334R1

OLIVE

SLEEVE, FERRULE

1шт.

30

3144903R1

CLAMP

OIL INLET TUBE

1шт.

931364R1

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

HEX HD M5 X 20

1шт.

933187R1

NUT,M5, Cl 8

HEX M5

1шт.

933844R1

LOCK WASHER,M5

SPRING LOCK

1шт.

30

327071R1

CLAMP

OIL INLET TUBE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

670278R1

WASHER

HARDENED

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

95-11041

WASHER,3/8"

Optional

1шт.
