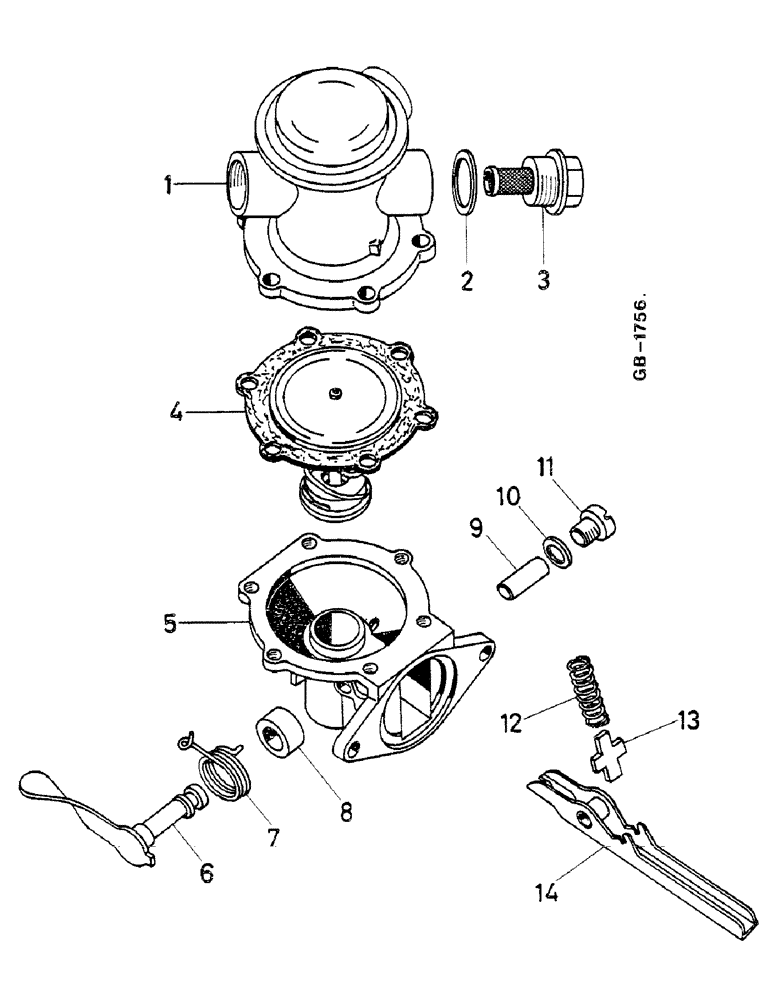

Запчасти Case IH D-155 (11-091) - FUEL FEED PUMP

3132697R92

FEED PUMP

1шт.

3136002R91

SET

REPAIR, FEED PUMP W/SCREW AND ITEM 2 THRU 4 AND 10

1шт.

1

3132796R91

HOUSING

1шт.

3132330R1

SCREW

WITH LOCK WASHER

6шт.

2

897748H1

PACKING RING

1шт.

3

3132797R1

FILTER

PLUG, WITH SCREEN

1шт.

4

3132798R1

DIAPHRAGM

PUMP

1шт.

5

3132836R1

HOUSING

PUMP

1шт.

6

3132334R1

HANDLE

1шт.

3132331R1

SCREW

OVAL HEAD SLOTTED, DOG-POINT

1шт.

7

3132332R1

SPRING

SPARE PART

1шт.

8

3132333R1

SPARE PART BUSHING

1шт.

9

3132337R1

SPLIT PIN/SAFETY PIN

1шт.

10

3132335R1

RING

PACKING

1шт.

11

3132336R1

SCREW

PLUG

1шт.

12

3132339R1

SPRING

1шт.

13

3132338R1

RETAINER

SPRING

1шт.

14

3132340R1

LEVER

PUMP

1шт.
