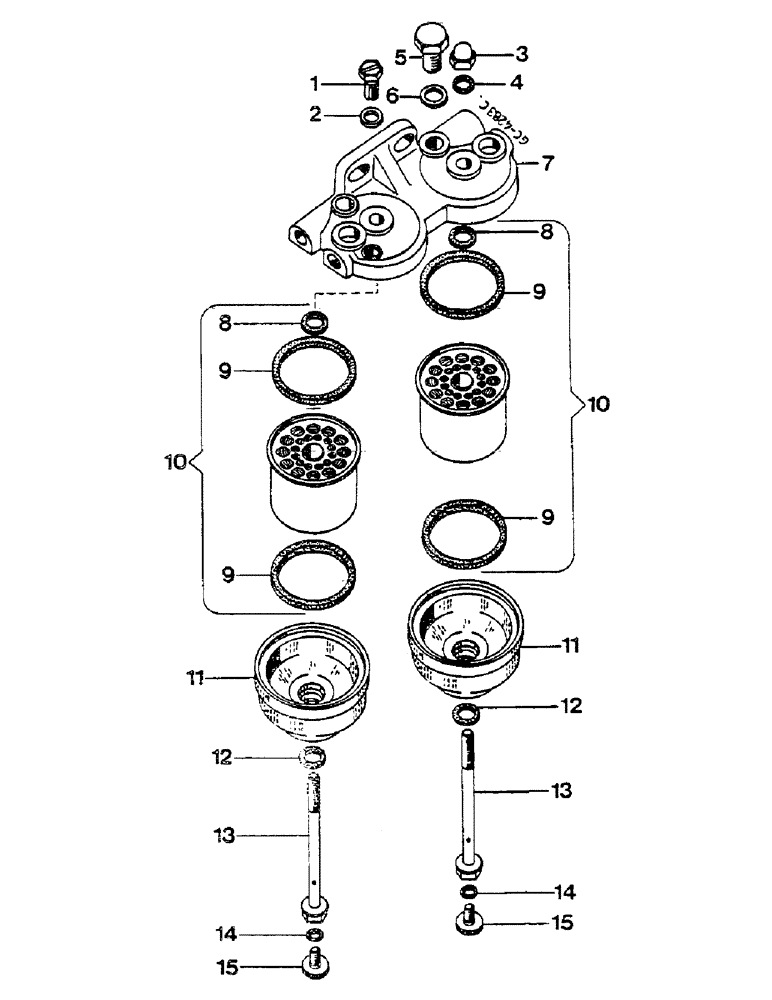

Запчасти Case IH D-155 (11-085) - FUEL FILTER, BOSCH

3144227R91

FILTER

FUEL - CONSISTS OF ITEMS 1 THRU 15

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

2шт.

102635

NUT,3/8"-16, G5

2шт.

1

3144780R1

SCREW

AIR VENT

1шт.

2

757760R1

RING

PACKING

1шт.

3

3144473R1

CROWN NUT

ACORN

2шт.

4

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

PACKING

2шт.

5

712616R1

PLUG,Hex, M14 x 1.5

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

7

3144484R1

HEAD

COVER, HOUSING

1шт.

8

3144779R1

RING

PACKING "BOSCH"

2шт.

8

3044505R1

SEAL

PACKING "CAV"

2шт.

9

3144472R1

RING

PACKING "BOSCH"

4шт.

9

3123890R1

SEALING WASHER

SEALRING PACKING "CAV"

4шт.

10

3144477R92

FILTER

ELEMENT, WITH SEAL "BOSCH"

2шт.

10

3044506R93

FILTER, FUEL

ELEMENT, WITH SEAL "CAV"

2шт.

11

3144478R1

FILTER BOWL

GLASS

2шт.

12

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

PACKING

2шт.

13

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

HOLLOW

2шт.

14

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

PACKING

2шт.

15

3144475R1

SCREW

PLUG, DRAIN

2шт.
