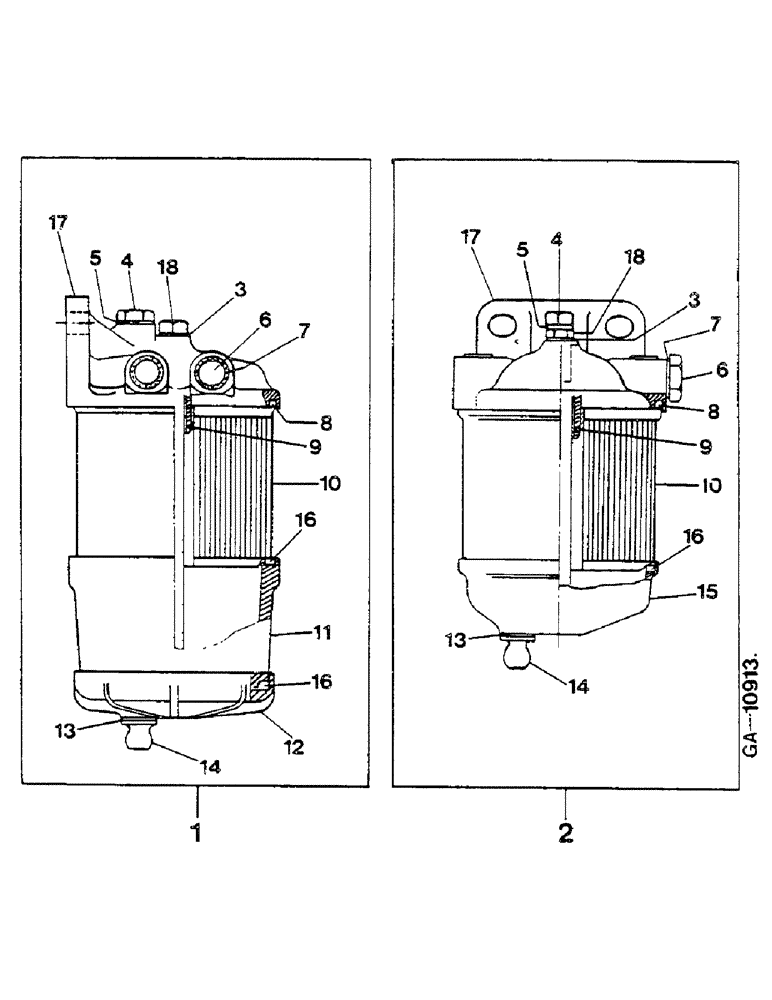

Запчасти Case IH D-155 (11-083) - FUEL FILTER, CAV

1

3138805R92

FILTER

FUEL PRIMARY, CONSISTS OF ITEMS 3 THRU 14, 16 THRU 18

1шт.

2

3138807R92

FILTER

FUEL FINAL, CONSISTS OF ITEMS 3 THRU 10, 13 THRU 18

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

3

3144668R1

SEALING WASHER

1шт.

3

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

4

3070770R1

PLUG

SCREW, AIR VENT

1шт.

5

3049111R1

SEALING WASHER

PACKING

1шт.

6

3078689R1

PLUG

1шт.

7

3078690R1

SEALING WASHER

PACKING

1шт.

8

3123890R1

SEALING WASHER

SEALRING PACKING

1шт.

9

3044505R1

SEAL

PACKING

1шт.

10

3044506R93

FILTER, FUEL

ELEMENT, WITH ITEM 8, 9 AND 16

1шт.

11

3069610R1

BOWL

GLASS

1шт.

12

3078688R91

COVER

LOWER

1шт.

13

3117039R1

SEALING WASHER

PACKING

1шт.

14

3117038R91

PLUG

DRAIN

1шт.

15

3078691R91

COVER

LOWER

1шт.

16

3123889R1

SEALING WASHER

RING, PACKING

1шт.

17

3078693R2

FILTER HEAD

COVER

1шт.

18

3070771R2

BOLT

1шт.
