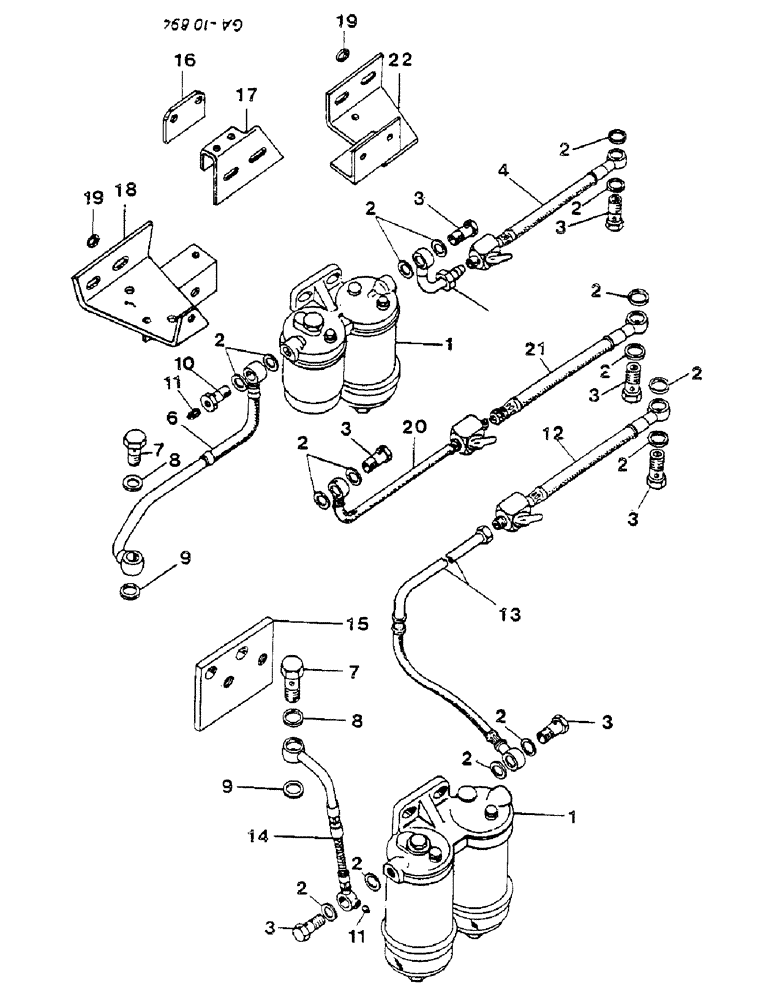

Запчасти Case IH D-155 (11-040) - FUEL FILTER AND LINES

1

NSS

NOT SOLD SEPARAT

FILTER, FUEL, "BOSCH"

1шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

3

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

1шт.

4

3136222R91

LINE

HOSE, WITH VALVE

1шт.

5

787648R1

PIPE FITTING

ELBOW

1шт.

6

3144226R1

LINE

HOSE, FILTER - INJECTION PUMP - 433/533/633/SU-533 - USED WITH 3144227R91

1шт.

6

3144906R1

LINE

HOSE, FILTER - INJECTION PUMP - SU-633GD, SU-644

1шт.

6

3144906R1

LINE

HOSE, FILTER - INJECTION PUMP - 433/533/633/SU-533 - USED WITH 3218705R91/3138816R93

1шт.

6

3144265R1

PIPE

FILTER - INJECTION PUMP - 733 - USED WITH 3218705R91 / 3138816R93

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW M12

1шт.

8

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

9

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

10

3218344R1

BANJO BOLT

SCREW, HOLLOW 1/8 X M14

1шт.

11

445684R1

PLUG, 1/8

1шт.

12

3136221R91

FUEL TUBE

HOSE, WITH VALVE - 743/745S

1шт.

12

3144897R1

FUEL TUBE

HOSE, WITH VALVE - 844S

1шт.

12

3228328R1

LINE

HOSE, WITH VALVE - 856XL

1шт.

13

3218721R1

FUEL TUBE

HOSE, 743/745S/844S

1шт.

14

3144680R2

FUEL TUBE

HOSE, 743/745S/844S/856XL

1шт.

15

3144225R1

BAR

SUPPORT, 743/745S/844S

1шт.

15

3228713R91

BRACKET

856XL

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

3059289R1

PLATE

SUPPORT, SU-633GD

1шт.

17

3144285R2

SUPPORT, SU-533 S/N 026783 UP

1шт.

18

3144272R91

SUPPORT

SU-533 UP TO S/N 026782

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

3/8 X 22 MM

1шт.

103321

LOCK WASHER,3/8"

1шт.

19

20285H

WASHER

2шт.

20

3136221R91

FUEL TUBE

HOSE, WITH VALVE - SU-644

1шт.

21

3133290R1

HOSE

SU-644

1шт.

22

3218886R1

SPARE PART SU-644

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.
