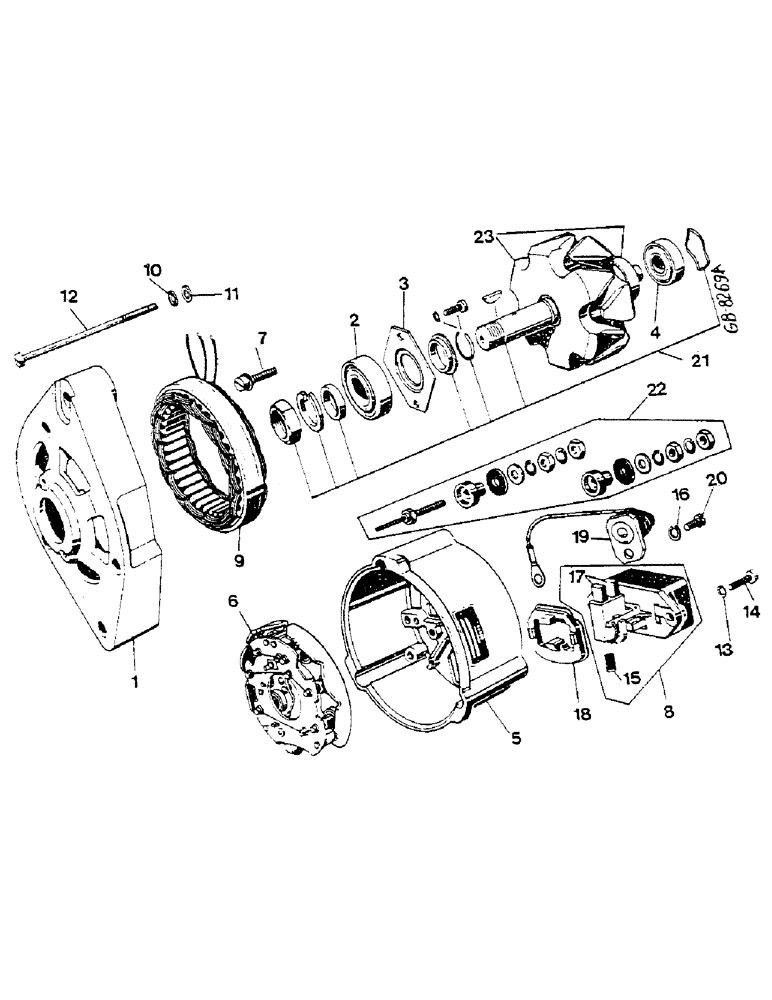

Запчасти Case IH D-155 (09-19) - ALTERNATOR
№
Артикул
Название
Примечание
Количество
3218239R91
ALTERNATOR
WITH REGULATOR (33A) - UNIT I
1шт.
3218544R91
ALTERNATOR
WITH REGULATOR (55A) - UNIT II
1шт.
1
3078582R1
COVER
UNIT I
1шт.
1
3079380R1
COVER
UNIT II
1шт.
2
3078585R91
BEARING, BALL
1шт.
2
3079129R91
BALL BEARING
BALL - UNIT II
1шт.
3
3078587R1
PLATE
UNIT I
1шт.
3
3078379R1
COVER
PLATE, UNIT II
1шт.
4
3079139R91
BEARING, BALL
UNIT I
1шт.
4
3079383R2
BEARING
BALL - UNIT II
1шт.
5
3079036R1
HOUSING
UNIT I
1шт.
5
3079384R2
HOUSING
UNIT II
1шт.
6
3078957R92
PLATE
WITH DIODES - UNIT I
1шт.
6
3079411R91
PLATE
WITH DIODES - UNIT II
1шт.
7
3078588R91
BOLT
WITH WASHER
3шт.
8
3079037R91
REGULATOR
HOLDER, BRUSH - UNIT I
1шт.
8
3079412R91
GOVERNOR
HOLDER, BRUSH AND REGULATOR - UNIT II
1шт.
9
3079121R1
STATOR
UNIT I
1шт.
9
3079413R91
IGNITION SWITCH
STATOR, UNIT II
1шт.
10
933986R1
LOCK WASHER,M5
3шт.
11
887416R1
WASHER
3шт.
12
3079414R1
SCREW
UNIT II
4шт.
12
3209676R1
SCREW
UNIT I
3шт.
13
933982R1
WAVE WASHER,M4.3 ID x 9 OD x .5 Thk
4 MM
2шт.
14
3079379R1
SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8
M4 X 18 MM - UNIT I
2шт.
14
931532R1
SCREW,M4 x 18mm, Cl 8.8
M4 X 18 MM - UNIT II
2шт.
15
3209062R11
VALVE SPRING
UNIT I
2шт.
15
3079393R1
SPRING
UNIT II
2шт.
16
933677R1
WAVE WASHER
5 MM
1шт.
17
3079038R91
BRUSH SET
UNIT I
1шт.
17
3079131R91
BRUSH, COMMUTATOR
BRUSH SET- UNIT II
1шт.
18
3079039R1
GASKET
UNIT I
1шт.
18
3079395R1
GASKET
UNIT II
1шт.
19
3079040R91
DIODE
RECTIFIER, (ZENER) - UNIT I
1шт.
20
625589C1
SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8
M5 X 10 MM
1шт.
21
3078595R91
SET OF PARTS
ROTOR - UNIT I
1шт.
21
3078897R1
SET OF PARTS
ROTOR - UNIT II
1шт.
22
3078596R91
PACKAGE
CONNECTING PARTS (TERMINAL B) - UNIT I
1шт.
22
3078597R91
PACKAGE
CONNECTING PARTS (TERMINAL D) - UNIT I
1шт.
22
3079391R91
PACKAGE, REPAIR
CONNECTING PARTS (TERMINAL D, B) - UNIT II
1шт.
23
3079035R2
ROTOR
UNIT I
1шт.
23
3079409R91
ROTOR
UNIT II
1шт.
3079386R1
O-RING
UNIT II
1шт.
Выбрано товаров: 43
