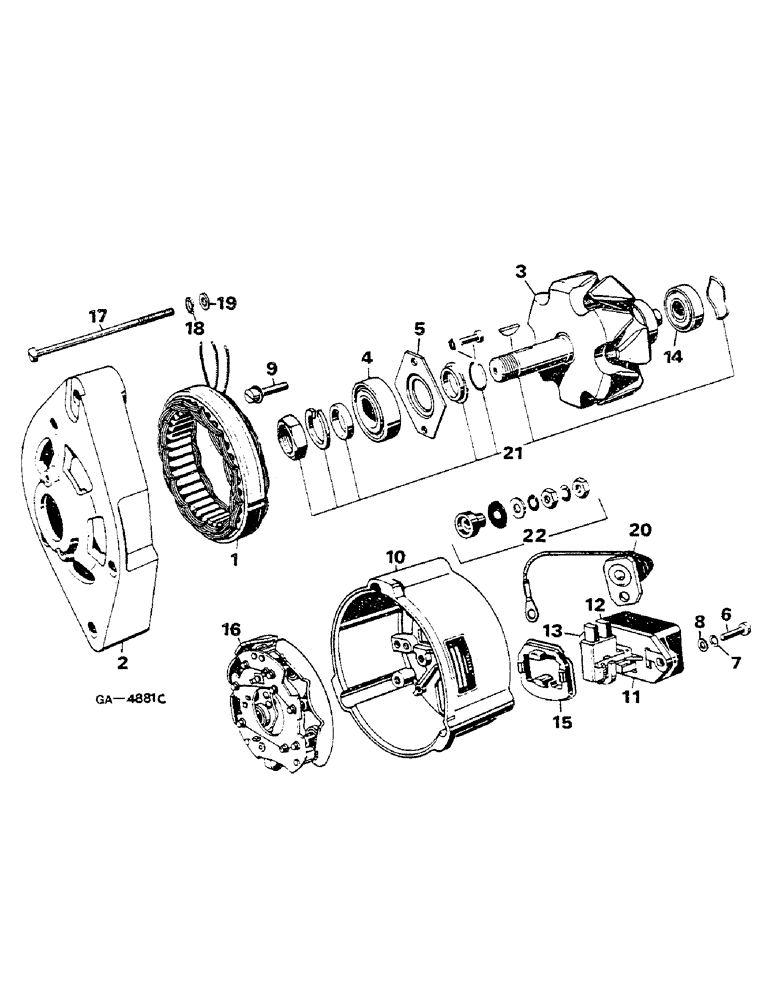

Запчасти Case IH D-155 (09-16) - ALTERNATOR, 28 AMP

3144907R91

ALTERNATOR

ORDER - 3218577R91 - CONSISTS OF ITEMS 1 THRU 19

1шт.

1

3079033R1

STATOR

1шт.

2

3079034R1

COVER

1шт.

3

3079035R2

ROTOR

1шт.

4

3078585R91

BEARING, BALL

1шт.

5

3078587R1

PLATE

1шт.

6

3079379R1

SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8

2шт.

7

933994R1

LOCK WASHER,M4

2шт.

8

3078617R1

GASKET

2шт.

9

3078588R1

SCREW

WITH WASHER

3шт.

10

3079036R1

HOUSING

1шт.

11

3079037R91

REGULATOR

HOLDER, BRUSH

1шт.

12

3079038R91

BRUSH SET

1шт.

13

3209062R11

VALVE SPRING

2шт.

14

3079139R91

BEARING, BALL

1шт.

15

3079039R1

GASKET

1шт.

16

3078957R92

PLATE

WITH DIODES

1шт.

17

3209676R1

SCREW

3шт.

18

933986R1

LOCK WASHER,M5

3шт.

19

887416R1

WASHER

3шт.

20

3079040R91

DIODE

RECTIFIER, (ZENER)

1шт.

21

3078595R91

SET OF PARTS

ROTOR

1шт.

22

3078596R91

PACKAGE

CONNECTION PARTS (TERMINAL B)

1шт.

22

3078597R91

PACKAGE

CONNECTION PARTS (TERMINAL D)

1шт.
