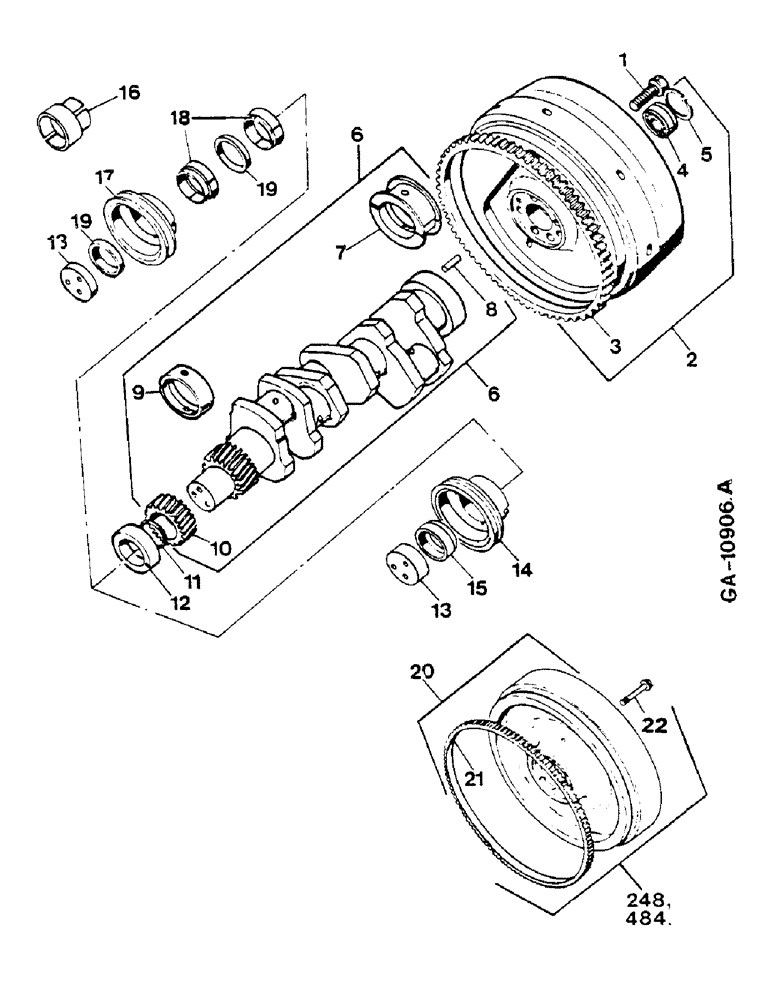

Запчасти Case IH D-155 (07-02) - CRANKSHAFT, 3 CYLINDER

1

3055497R2

BOLT

FLYWHEEL - 433+V+E, 533+V+E, SU-533 V+4WD, 633+V+E, SU-633 HD+GD -

7шт.

2

3055430R31

FLYWHEEL

433+V+E, 533+V+E

1шт.

2

3228404R91

FLYWHEEL

633+V+E - 633 +V+E S/N XXX UP

1шт.

2

NSS

NOT SOLD SEPARAT

FLYWHEEL - ORDER 3228404R91 + 3228406R1 - 633 +V+E UP TO S/N XXX

1шт.

2

3228206R91

FLYWHEEL

SU-533 V+4WD S/N 028405 UP

1шт.

2

3055429R31

FLYWHEEL

SU-533 V+4WD UP TO S/N 028404

1шт.

2

3144795R91

FLYWHEEL

SU-633 HD

1шт.

2

3228157R91

FLYWHEEL

SPARE PART SU-633 GD - WITH ITEMS 1, 3 - 5

1шт.

3

3055358R1

CROWN WHEEL

GEAR, RING - D-155

1шт.

3

3144612R1

GEAR

RING - D-179

1шт.

4

3055431R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BALL

1шт.

5

933616R1

CIRCLIP,#47, 43.7 x 4.04 x 1.12

SNAP

1шт.

6

3055746R92

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - 433+V+E, 533+V+E, SU-533 V+4WD

1шт.

6

3055782R92

CRANKSHAFT BEARING

633+V+E, SU-633 HD+GD, 284, 484

1шт.

6

3136045R93

CRANKSHAFT

2530TC

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll - With items 7 - 10

1шт.

7

3055129R21

CRANKSHAFT BEARING

MAIN, STANDARD SIZE

1шт.

7

3056820R11

BEARING ASSY

UNDERSIZE 0.25 MM

1шт.

7

3056875R11

BEARING ASSY

UNDERSIZE 0.50 MM - .02 INCHES

1шт.

7

3055776R11

BEARING ASSY

UNDERSIZE 0.75 MM 0.03 INCHES

1шт.

8

NLS

NO LONGER SERVICED

PIN

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING, MAIN STANDARD SIZE

3шт.

9

3056832R21

BEARING ASSY

UNDERSIZE 0.25 MM

1шт.

9

3056877R21

BEARING ASSY

UNDERSIZE 0.50 MM/.02 INCHES

1шт.

9

3055779R21

BEARING ASSY

UNDERSIZE 0.75 MM/.03 INCHES

1шт.

10

3055028R1

PINION

GEAR, CRANKSHAFT- 33 TEETH

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

12

3228133R93

SEAL KIT

DISTANCE, WITH O-RING AND OIL SEAL 3136724R91

1шт.

13

3139161R1

WASHER

THRUST 62 MM. DIA - 633+V+E

1шт.

13

3055154R1

WASHER

THRUST 65 MM DIA - ALL OTHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

14

3138778R1

PULLEY

433+V+E, 533+V+E

1шт.

14

3144613R1

PULLEY

248, 484

1шт.

14

3138790R1

PULLEY

2530 TC

1шт.

15

3138874R1

BEARING WASHER

RING, THRUST, 433+V+E, 533+V+E, 248, 484

1шт.

16

3218394R1

BUSHING

SPRING, ANNULAR 2 X 3055515R91/3055153R1

1шт.

17

3228406R1

PULLEY

633 + V+E S/N XXX UP

1шт.

17

NSS

NOT SOLD SEPARAT

PULLEY, ORDER - 633 + V+E UP TO S/N XXX

1шт.

17

3132415R1

PULLEY

SU-533 V+43WD

1шт.

17

3228142R1

PULLEY

SPARE PART SU-633 HD+GD

1шт.

18

3055152R91

RING

SPRING, ANNULAR - 633+V+E, SU-533 V+4WD SU-633 HD+GD

2шт.

19

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

THRUST - 633+V+E, SU-55 V+4WD, SU-633 HD+GD

2шт.

20

3144614R94

FLYWHEEL

WITH ITEMS 15 + 21 - 248, 484

1шт.

20

3218556R92

FLYWHEEL

2530 TC

1шт.

21

60883H

RING GEAR

1шт.

22

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel - 248, 484

7шт.

22

3218558R1

BOLT

FLYWHEEL - 2530 TC

7шт.

3218995R1

WASHER

2530 TC

7шт.
