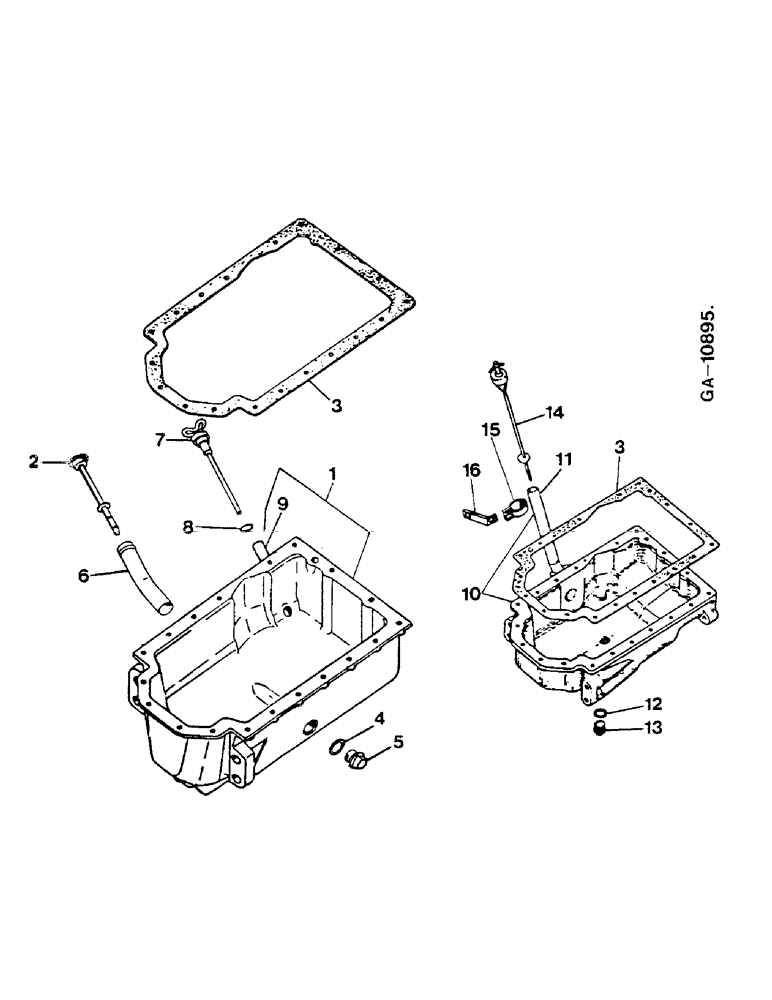

Запчасти Case IH D-155 (06-26) - OIL PAN, 3 CYLINDER

1

3218615R91

SUMP

PAN, OIL - 433+V+E, 533+V+E, SU-533 V+4WD, 633+V+E, SU-633 HD+GD

1шт.

1

3055352R12

PAN, ENGINE OIL

PAN, OIL WITH ITEM 6 - 433+V+E: UP TO S/N 131392 - 533+V+E : UP TO S/N 223839 - 633+V+E : UP TO S/N 291835

1шт.

3055668R1

SCREW,Hex, 5/16" - 18 x 176mm

5/16 X 178 MM

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

13шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

15шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16")

4шт.

2

3055354R91

DIPSTICK

GAUGE, OIL LEVEL - 433+V+E : UP TO S/N 131392 - 533+V+E : UP TO S/N 223839 - 633+V+E: UP TO S/N 291835

1шт.

2

3144802R1

ELECTRICAL GAUGE

SPREADER TYPE - 433+V+E: UP TO S/N 131392 - 533+V+E: UP TO S/N 223839 - 633+V+E: UP TO S/N 291835

1шт.

3

3055160R1

OIL PAN GASKET SET

1шт.

4

933609R1

RING

1шт.

5

3131883R2

SCREW

PLUG

1шт.

6

3055353R2

PIPE FITTING,192 mm Length

OIL FILLER - 433+V+E: UP TO S/N 131392 - 533+V+E: UP TO S/N 223839 - 633+V+E : UP TO S/N 291835

1шт.

7

3218617R91

DIPSTICK

GAUGE, OIL LEVEL

1шт.

8

3218634R1

O-RING,2.4mm Thk x 8.3mm ID, 72 Duro

1шт.

9

3218412R1

TUBE

GUIDE, FOR GAUGE, OIL LEVEL

1шт.

10

3136042R95

SUMP

PAN, OIL - 248, 484

1шт.

10

3228869R1

PAN

OIL - 2350TC

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

103320

LOCK WASHER,5/16"

15шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.

11

3136241R1

TUBE,29.556 mm OD, 250 mm Length

OIL FILLER - 248, 484

1шт.

11

3228699R1

TUBE

OIL FILLER - 2530TC

1шт.

12

933608R1

SEALING RING,M26 x 31 x 2

Packing

1шт.

13

3132544R2

PLUG

1шт.

14

3136242R2

DIPSTICK

GAUGE, OIL LEVEL - 248, 484

1шт.

14

3218554R1

ELECTRICAL GAUGE

OIL LEVEL - 2530TC

1шт.

15

3132818R1

CLAMP

2530TC

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 X 19 MM

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

934850R1

WASHER

1шт.

16

3218553R1

SUPPORT

2530TC

1шт.
