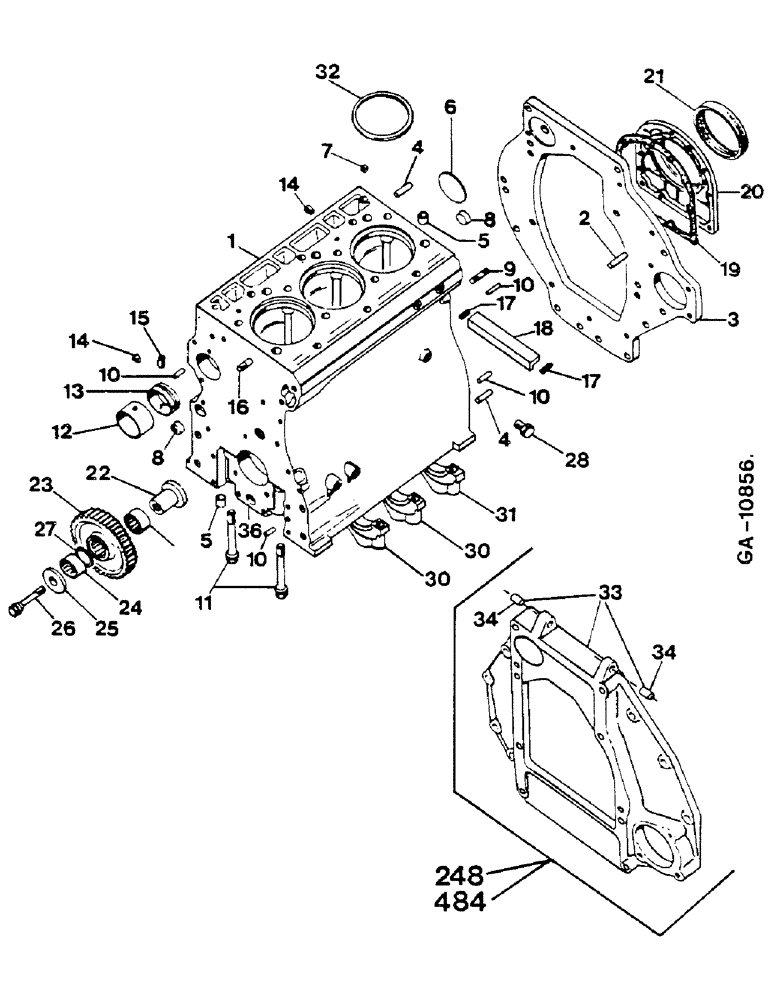

Запчасти Case IH D-155 (06-02) - CRANKCASE, 3 CYLINDER

1

3055000R36

CRANKCASE

WITH ITEM 4 - 15, 36 - 38, - D-155

1шт.

1

3055001R36

CRANKCASE

WITH ITEM 4 - 15, 36 - 38, - D-179

1шт.

2

141287

DOWEL,1/2" x 1 1/2"

DOWEL

2шт.

3

3132390R91

PLATE

WITH DOWEL PIN - D-155

1шт.

3

3144797R91

PLATE

WITH DOWEL PIN - D-179

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 X 30 MM

4шт.

28293R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 X 35 MM

12шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 X 38 MM

3шт.

28294R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 X 44 MM

1шт.

28228R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1/2 X 51 MM

1шт.

103323

LOCK WASHER,1/2"

22шт.

102637

NUT,1/2"-13, G5

1шт.

3052074R1

STUD

1/2 X 70 MM

1шт.

PO10535

WASHER

13.5 X 32 X 2.7 MM

1шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin

2шт.

5

3055007R1

BUSHING

DOWEL

2шт.

6

41-3044

PLUG,Exp, 2 3/4"

EXPANSION

1шт.

7

3136004R1

COVER

CLOSING

1шт.

8

933537R1

PLUG,M25, Conical

COVER, CLOSING

2шт.

9

3055270R1

STUD

1шт.

10

141242

DOWEL

PIN

4шт.

11

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

1шт.

12

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

CAMSHAFT, FRONT

1шт.

13

3055009R2

BEARING LINER

CAMSHAFT

3шт.

14

3144520R1

PLUG

1/4

3шт.

15

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

2шт.

16

3055065R1

STUD

1шт.

17

714868R1

SEALING STRIP

SEAL

2шт.

18

3055214R1

SUPPORT

BAR, SEALING

1шт.

19

3055215R1

GASKET

1шт.

20

3055216R1

RETAINER

OIL SEAL

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

(5/16")

9шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

3138701R91

SEAL

1шт.

22

3055373R1

CARRIER

IDLER GEAR

1шт.

23

3055043R3

PINION

GEAR, ILDER (68 TEETH)

1шт.

24

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

2шт.

25

3055372R1

DISC

WASHER, THRUST

2шт.

26

3055374R2

BOLT

IDLER GEAR, LH THREAD

1шт.

27

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

1шт.

28

20990R1

PLUG

3/8

1шт.

29

NSS

NOT SOLD SEPARAT

CAP, BEARING, ORDER CRANKCASE

1шт.

30

3144438R91

BEARING ASSY

PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAP

1шт.

31

3144436R91

CRANKSHAFT BEARING

PACKAGE, SERVICE, FOR CRANKSHAFT BEARING CAP

1шт.

32

3218538R1

SHIM

0.05 MM

1шт.

32

3218539R1

SHIM

0.10 MM

1шт.

32

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

0.25 MM

1шт.

32

3218541R1

SHIM

0.50 MM

1шт.

32

3218542R1

SHIM

0.80 MM

1шт.

33

3136059R22

PLATE ASSY.

WITH BUSHING - D-179

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

103323

LOCK WASHER,1/2"

4шт.

34

3136060R2

BUSHING

2шт.

3136802R98

GASKET KIT

PACKAGE, CRANKCASE GASKETS, NOT ILLUSTRATED

1шт.
