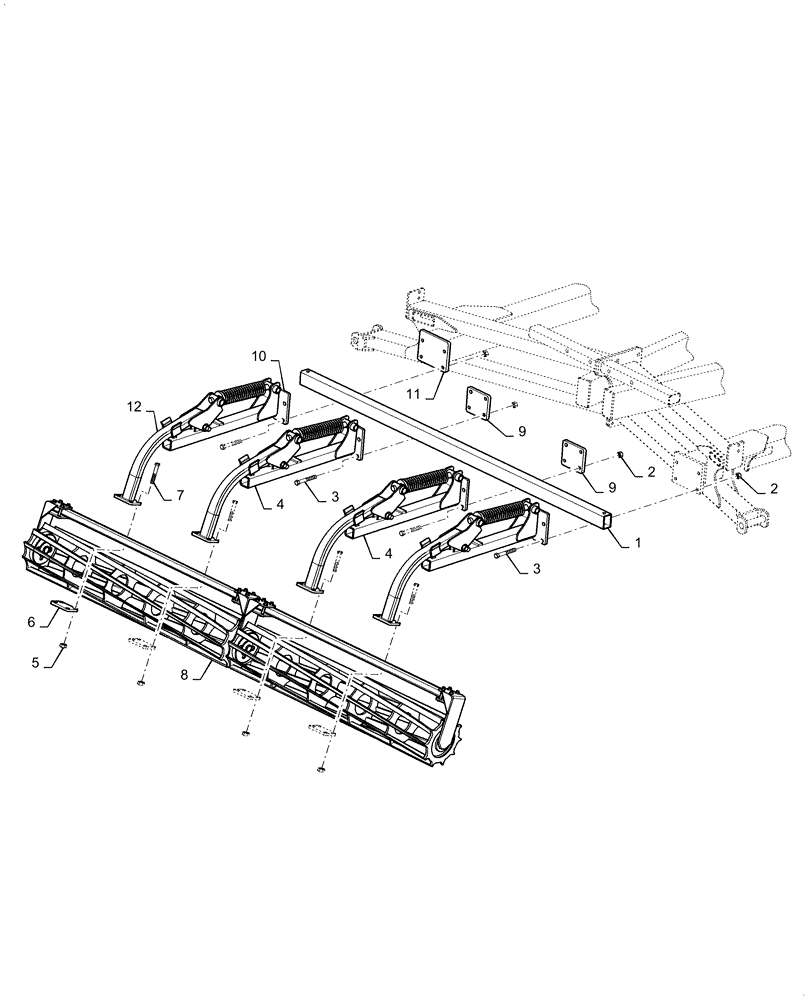

Запчасти Case IH TRUE-TANDEM 335VT (75.200.AA[11]) - MAIN FRAME FLAT BASKET MOUNT (75) - SOIL PREPARATION

1

86988847

TUBE,2972 mm L

1шт.

2

280375

NUT,3/4"-10, GC

16шт.

3

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

16шт.

4

87731452

MOUNT

Inside

2шт.

5

85700693

NUT,5/8" - 11, Gr C

16шт.

6

87729259

PLATE

Basket Mount

4шт.

7

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

16шт.

8

87441583

BASKET ASSY

75" Flat Bar

2шт.

9

87731168

PLATE

Arm Mount

2шт.

10

87704965

SUPPORTING ARM

Outside

2шт.

11

87729259

PLATE

Basket Mount

2шт.

12

87731453

SUPPORTING ARM

Rear Basket

4шт.
