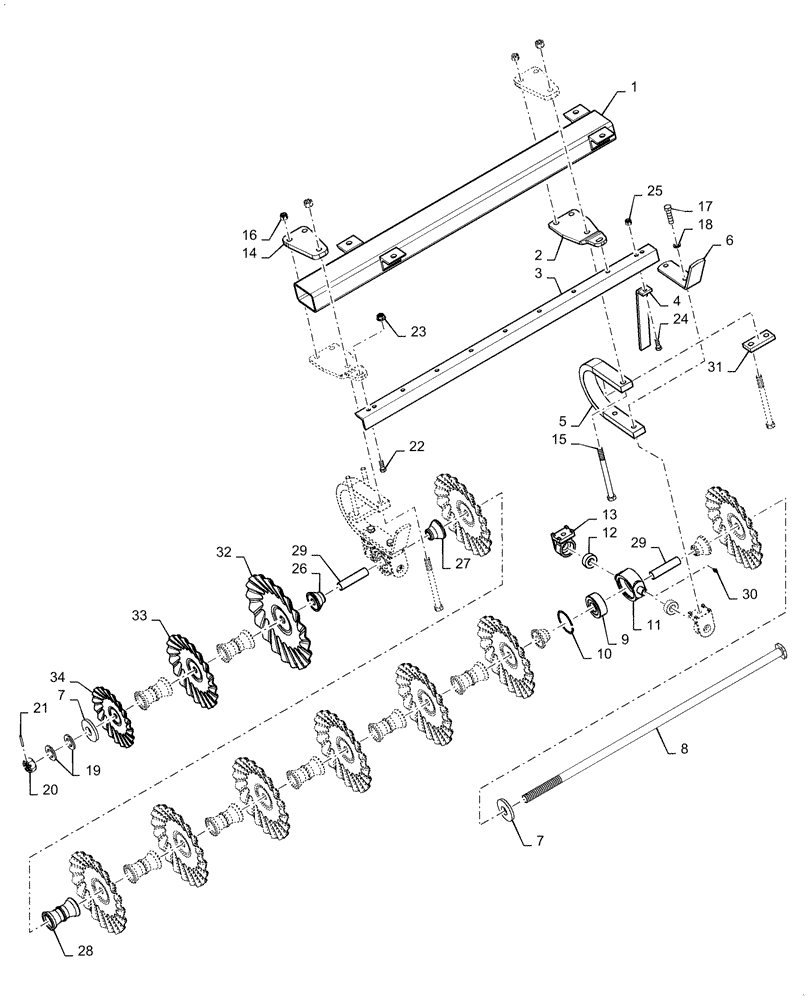

Запчасти Case IH TRUE-TANDEM 335VT (75.200.AA[10]) - CUSHION OUTER WING GANG PARTS REAR (75) - SOIL PREPARATION

1

84148655

U-FRAME

Gang Mount 42'

1шт.

2

84136899

BAR

Scraper Mount

2шт.

3

84151443

ANGLE

Scrape Blader Turbo

1шт.

4

84151445

SCRAPER BLADE

Turbo

6шт.

5

193831A1

SPRING

Hanger

3шт.

6

84206125

ANGLE

Shield Deflector Painted CNH Black

3шт.

7

139773C1

WASHER

Domed Painted CNH Black

2шт.

8

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

1шт.

9

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

2шт.

10

101-21433

SNAP RING,#433, 4.641", Int

2шт.

11

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

2шт.

12

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

4шт.

13

195109A1

TRUNNION

Pivot

4шт.

14

84205366

PLATE

4 x 6

2шт.

15

280441

BOLT,Hex, 3/4" - 10 x 9", Gr 5

6шт.

16

87681198

NUT,Hex, 7/8"-9, 0.45 high

6шт.

17

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

18

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

19

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

2шт.

20

84151572

SLOTTED NUT

1-1/2"

1шт.

21

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.

22

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

23

84180923

FLANGE NUT

5/8"

2шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

7шт.

25

85700693

NUT,5/8" - 11, Gr C

7шт.

26

1263636C1

SPOOL

Bearing Short

2шт.

27

101190C1

SPOOL

Bearing Short

2шт.

28

1263631C1

SPOOL

Spacing 7.5"

8шт.

29

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

2шт.

30

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

31

410082A1

STRAP

Gangs

2шт.

32

87630573

TILLAGE BLADE

20" Left

9шт.

32

87630572

TILLAGE BLADE

20" Right

9шт.

33

87574699

TILLAGE BLADE

18" Left

1шт.

33

87574703

TILLAGE BLADE,466mm OD x 6.5mm Thk

18" Right

1шт.

34

87574698

TILLAGE BLADE

16" Right

1шт.

34

87574695

TILLAGE BLADE

16"Left

1шт.
