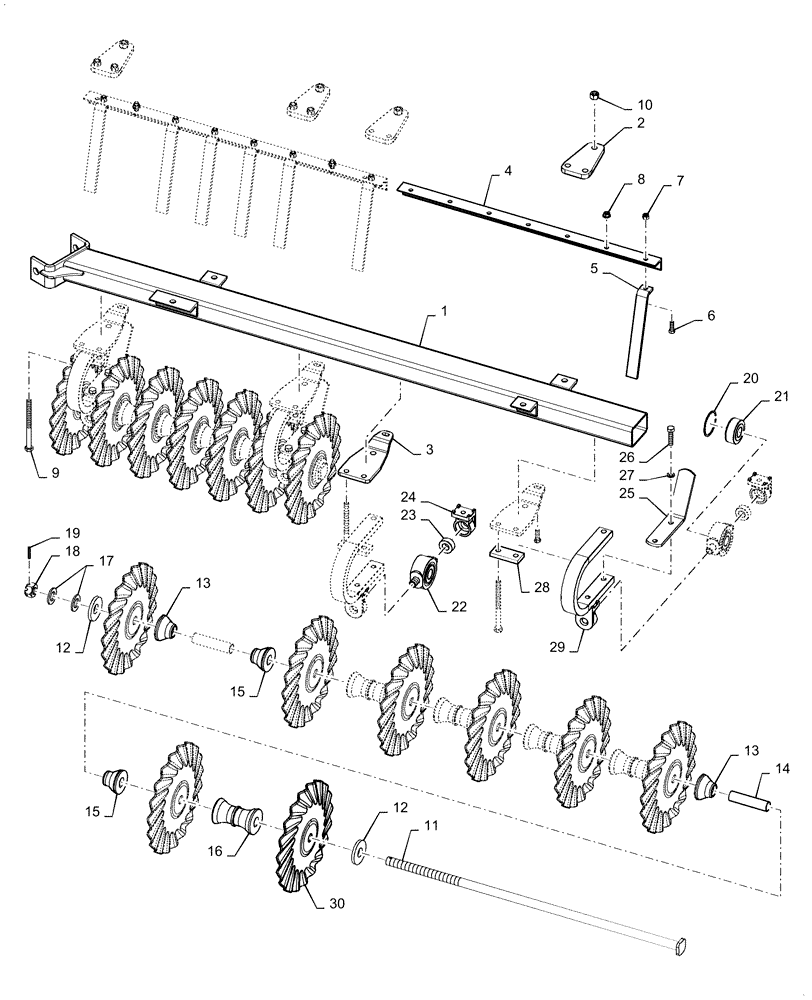

Запчасти Case IH TRUE-TANDEM 335VT (75.200.AA[08]) - CUSHION MIDDLE WING GANG PARTS REAR (75) - SOIL PREPARATION

1

84136935

U-FRAME

Left Rear

1шт.

1

84144830

U-FRAME

Right Rear

1шт.

2

84205366

PLATE

4 x 6 Gang

4шт.

3

84136899

BAR

Gang Scraper

4шт.

4

84151442

SCRAPER BLADE

Toward The Outside

1шт.

4

84151440

SCRAPER BLADE

Toward The Inside

1шт.

5

84151445

SCRAPER BLADE

Turbo

11шт.

6

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

11шт.

7

85700693

NUT,5/8" - 11, Gr C

11шт.

8

84180923

FLANGE NUT

5/8"

4шт.

9

87490804

BOLT

7/8-9 x 8"

9шт.

10

87681198

NUT,Hex, 7/8"-9, 0.45 high

9шт.

11

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

Toward The Inside

1шт.

11

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

Toward The Outside

1шт.

12

139773C1

WASHER

Blade

4шт.

13

1263636C1

SPOOL

Bearing Short

4шт.

14

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

4шт.

15

101190C1

SPOOL

Bearing Short

4шт.

16

1263631C1

SPOOL

Spacing 7.5"

9шт.

17

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

4шт.

18

84151572

SLOTTED NUT

1/2"

2шт.

19

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

2шт.

20

101-21433

SNAP RING,#433, 4.641", Int

2шт.

21

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

4шт.

22

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

4шт.

23

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

8шт.

24

195109A1

TRUNNION

Pivot

8шт.

25

84206125

ANGLE

Deflector

4шт.

26

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

27

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

28

410082A1

STRAP

Plate Gangs

4шт.

29

193831A1

SPRING

Hanger

4шт.

30

87630573

TILLAGE BLADE

Left Front And Right Rear

15шт.

30

87630572

TILLAGE BLADE

Right Front And Left Rear

15шт.
