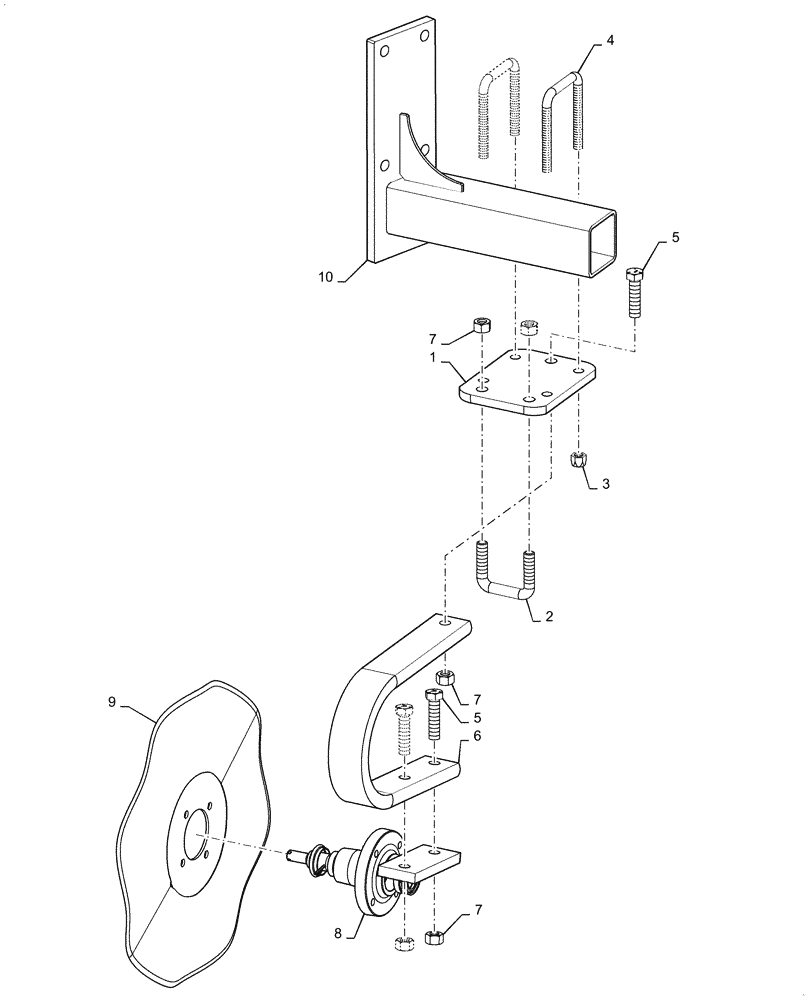

Запчасти Case IH TRUE-TANDEM 335VT (75.200.AA[03]) - CENTER COULTER ASSEMBLY (75) - SOIL PREPARATION

1

87614378

PLATE

Plate, Coutler Hanger

1шт.

2

16312085

U-BOLT

3/4 x 3 x 3

1шт.

3

86992216

NUT

5/8"

4шт.

4

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2

2шт.

5

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

6

33090001

HANGER

Bearing

1шт.

7

86992217

NUT

3/4"

5шт.

8

87614379

MOUNTING PARTS

633 Hub And Spindle, Coutler Mount

1шт.

9

47674759

DISC

Thick Wavy Blade, Coulter, 22"

1шт.

9

443637A1

PLOW DISC

Original Wavy Blade, Coulter, 22"

1шт.

10

84189243

MOUNT

Coulter

1шт.
