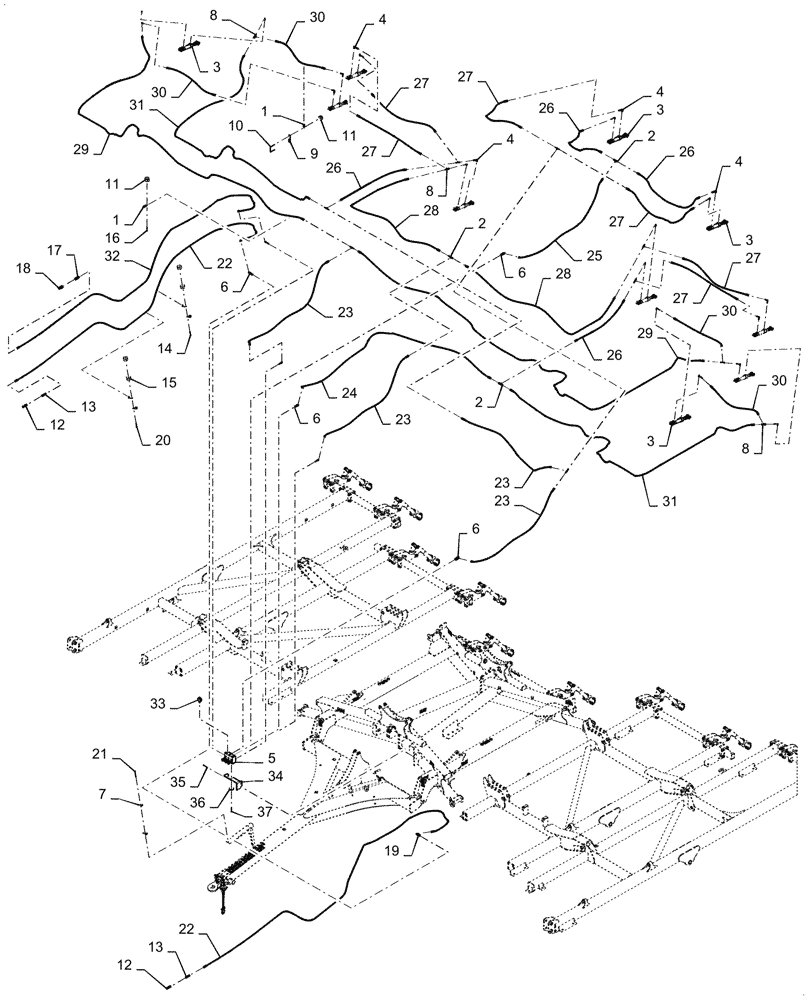

Запчасти Case IH TRUE-TANDEM 335VT (35.525.AA[13]) - HYDRAULIC BASKETS 42 FOOT 375 (35) - HYDRAULIC SYSTEMS

1

22510700

HOSE CLAMP,15.86mm

65шт.

2

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

6шт.

3

47404915

HYDRAULIC CYLINDER

10шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

20шт.

5

47903119

1шт.

6

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

7шт.

7

06200125

HOSE CLAMP

4шт.

8

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9шт.

9

47907419

4шт.

10

16306045

U-BOLT

4шт.

11

88902

NUT,3/8"-16

16шт.

12

25705041

COUPLING

2шт.

13

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

14

84198529

CARRIAGE BOLT

11шт.

15

9628503

NUT,3/8"-16, G5

29шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

17

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

18

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

1шт.

19

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

1шт.

20

84198531

CARRIAGE BOLT

2шт.

21

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

22

129673C2

HOSE

2шт.

23

129671C2

HYDRAULIC HOSE

4шт.

24

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

1шт.

25

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

1шт.

26

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

4шт.

27

147878C1

HOSE

6шт.

28

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

2шт.

29

87455769

HOSE ASSY.

2шт.

30

129908C1

HYDRAULIC HOSE

4шт.

31

227185A1

HYDRAULIC HOSE,6.35 mm ID x 6350.00 mm, SAE 100R1

2шт.

32

193759A1

HYDRAULIC HOSE

1шт.

33

47933428

Pressure Gauge, 1500 psi

GAUGE

3шт.

34

47926131

1шт.

35

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

Valve Mount

2шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
