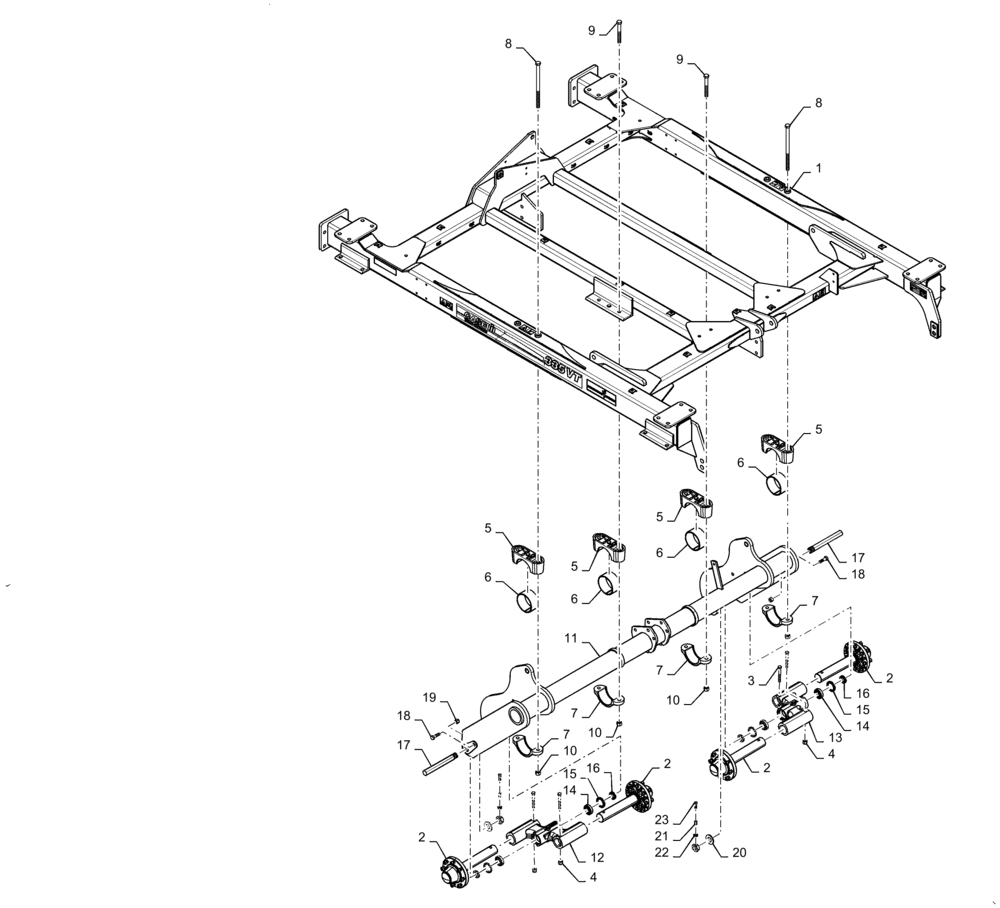

Запчасти Case IH TRUE-TANDEM 335VT (39.110.AB[20]) - FRAME AND ROCKSHAFT 34 FOOT (39) - FRAMES AND BALLASTING

1

47482716

FRAME

Main With Decals

1шт.

2

47407789

HUB

8 Bolt With Spindle

4шт.

3

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

5

84294608

CASTING

Rockshaft Bearing

4шт.

6

87703164

BUSHING,143mm ID x 155.7mm OD x 76.2mm L

4шт.

7

87715831

BEARING CAP

Painted CNH Black

4шт.

8

84144043

BOLT

.875 x 15.5"

4шт.

9

87490802

BOLT

.875 x 7.00"

4шт.

10

87681198

NUT,Hex, 7/8"-9, 0.45 high

8шт.

11

47468078

SHAFT

Rockshaft Large

1шт.

12

47691891

CASTER

2.75 Right

1шт.

13

47691892

CASTER

2.75 Left

1шт.

14

84229861

BEARING

Cone

4шт.

15

21932510

SEAL

3.154 mm x .160mm

4шт.

16

84422537

SPACER

Bearing

4шт.

17

47691977

PIN

Tandem Pivot

2шт.

18

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

19

280375

NUT,3/4"-10, GC

2шт.

20

84156982

WASHER,1.53" ID x 3" OD x 0.26" Thk

1.531 x 3.00"

2шт.

21

14032409

NUT

1.5"

2шт.

22

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

23

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

2шт.
