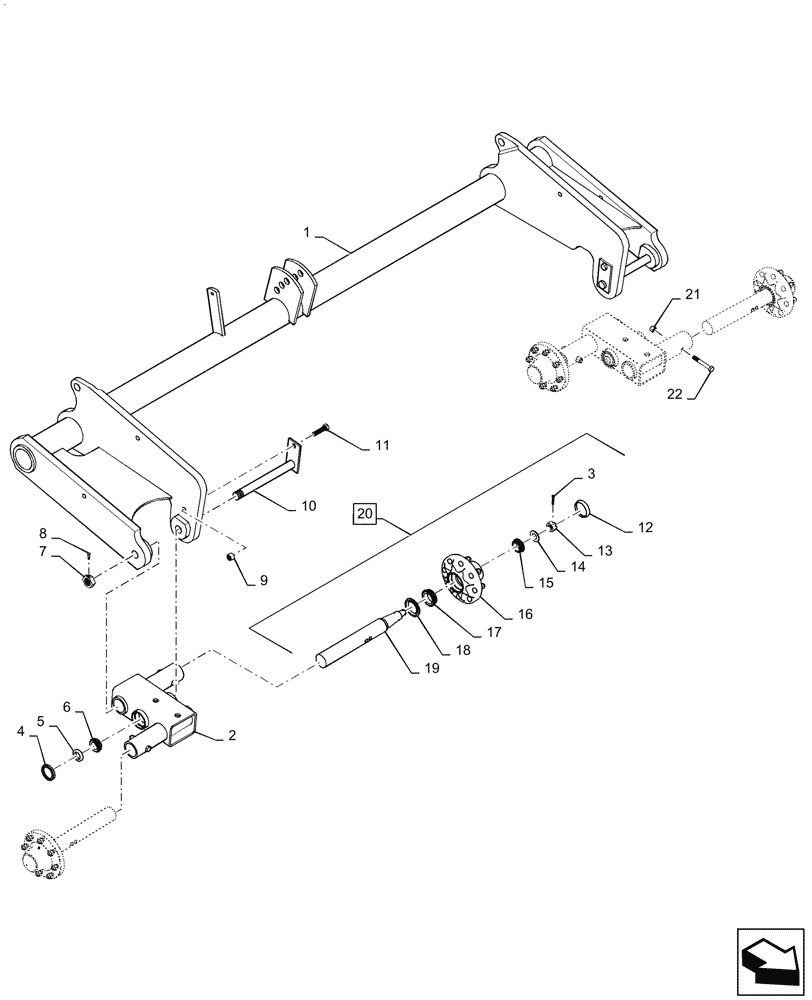

Запчасти Case IH 330 TRUE-TANDEM (44.100.01[02]) - MAIN FRAME ROCKSHAFT TANDEM 8-BOLT 2011 UPDATE (44) - WHEELS

1

84360623

ROCKSHAFT

Large Painted

1шт.

2

84359848

AXLE

Right

1шт.

2

84359847

AXLE

Left

1шт.

3

87400

COTTER PIN,3/16" x 2"

4шт.

4

21932510

SEAL

3.154 mm x .160 mm

1шт.

5

06400573

SPACER

Bearing

4шт.

6

86977427

BEARING CUP,76.22mm OD x 19.05mm W

4шт.

7

14032409

NUT

2шт.

8

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

2шт.

9

280375

NUT,3/4"-10, GC

4шт.

10

84177745

PIN

Tandem 1-1/2"

2шт.

11

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

12

560950R1

HUB CAP

Painted CNH Red

4шт.

13

86632555

SLOTTED NUT,1 1/8"-12, G5

4шт.

14

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

4шт.

15

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

4шт.

16

87407202

HUB

8 Bolt

4шт.

17

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

4шт.

18

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

4шт.

19

84138533

SPINDLE

4шт.

20

86989139

HUB

With Spindle 60-8 Painted CNH Black

4шт.

21

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

22

85700693

NUT,5/8" - 11, Gr C

4шт.
