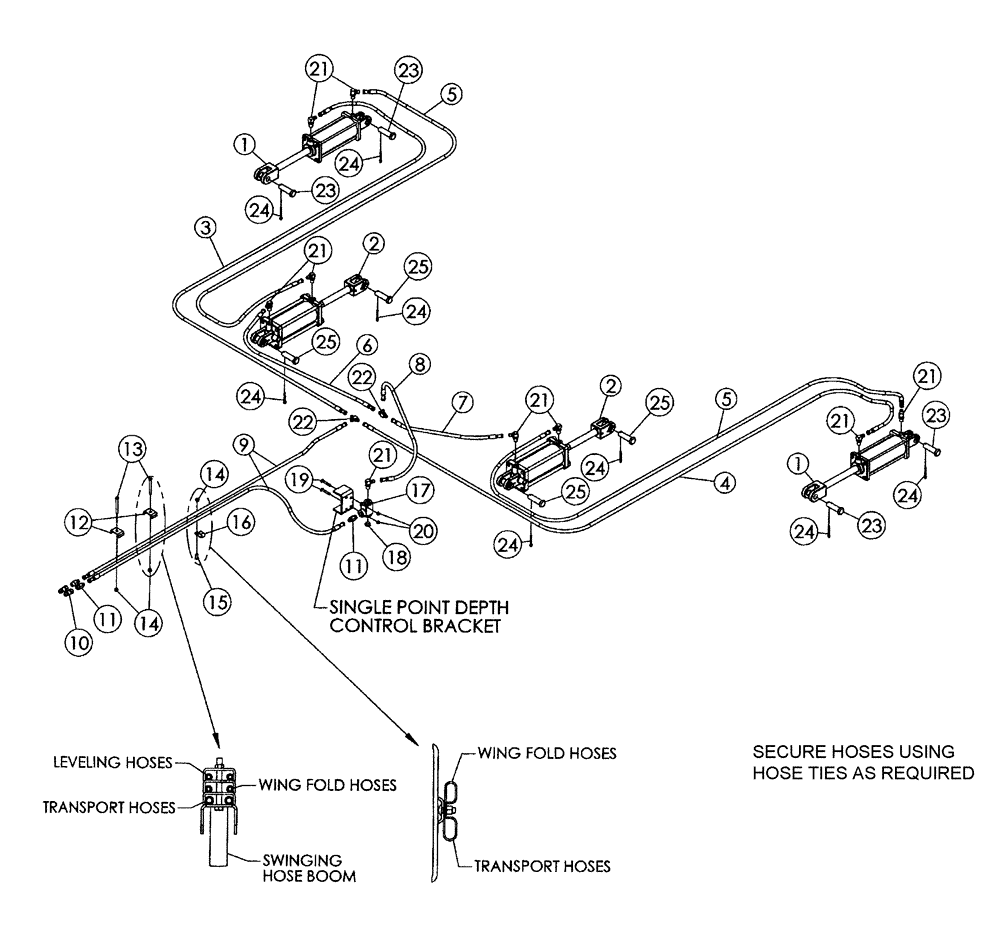

Запчасти Case IH 330 TRUE-TANDEM (35.100.01) - TRANSPORT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84262947

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Hydraulic, 3-1/2 x 8, Wing, 22 ft

2шт.

1

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 3.75 In x 8, Wing Lift, 25 ft

2шт.

1

84262946R

REMAN-HYD CYLINDER

330 TRUE-TANDEM 22'-34' DISK HARROW, Hydraulic, 3-3/4 x 8, Main Lift, 22 ft

2шт.

1

84262946C

CORE-HYD CYLINDER

Return Number

2шт.

1

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 3-3/4 x 8, Wing, 31 ft

2шт.

1

84262946R

REMAN-HYD CYLINDER

330 TRUE-TANDEM

2шт.

1

84262946C

CORE-HYD CYLINDER

Return Number

2шт.

1

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 4 x 8, Wing, 34 ft

2шт.

1

84281668R

REMAN-HYD CYLINDER

35.100.01

2шт.

1

84281668C

CORE-HYD CYLINDER

Return Number

2шт.

2

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 3-3/4 x 8, Main Lift, 22 ft

2шт.

2

84262946R

REMAN-HYD CYLINDER

330 TRUE-TANDEM

2шт.

2

84262946C

CORE-HYD CYLINDER

Return Number

2шт.

2

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 4 x 8, Main Lift, 25 ft

2шт.

2

84281668R

REMAN-HYD CYLINDER

35.100.01

2шт.

2

84281668C

CORE-HYD CYLINDER

Return Number

2шт.

2

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 4 x 8 x 1-3/8 Rod, Main Lift, 31 ft

2шт.

2

84281668R

REMAN-HYD CYLINDER

35.100.01

2шт.

2

84281668C

CORE-HYD CYLINDER

Return Number

2шт.

2

47576396R

REMAN-HYD CYLINDER

Reman Double Acting, 35.05mm Rod, 203.2mm Stroke

2шт.

2

47576396C

CORE-HYD CYLINDER

Return Number

2шт.

2

84281659

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, 4.25 x 8, Main Lift 34 ft

2шт.

3

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 x 185, 22 ft

1шт.

3

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8 x 225, 25 ft

1шт.

3

1284259C1

HYDRAULIC HOSE

3/8 x 250, 31 And 34 ft

1шт.

4

1284254C1

HYDRAULIC HOSE

3/8 x 170, 22 ft

1шт.

4

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 x 210, 25 ft

1шт.

4

1284314C1

HYDRAULIC HOSE

3/8 x 235, 31 And 34 ft

1шт.

5

1284298C1

HYDRAULIC HOSE

3/8 x 160, 22 ft

2шт.

5

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 x 185, 25 ft

2шт.

5

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 x 210, 31 ft

2шт.

5

435694A1

HYDRAULIC HOSE

3/8 x 190, 34 ft

2шт.

6

1251944C1

HYDRAULIC HOSE

3/8 x 41, 22 ft

1шт.

6

1285380C2

HYDRAULIC HOSE

3/8 x 50, 25 & 31 ft

1шт.

6

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

1шт.

7

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

22, 25, and 31 ft

1шт.

7

1285380C2

HYDRAULIC HOSE

3/8 x 50, 34 ft

1шт.

8

1284323C1

HYDRAULIC HOSE

3/8 x 15, 22, 25, And 31 ft

1шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

34 ft

1шт.

9

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 x 185, 22, 25, And 31 ft

2шт.

9

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 x 210, 34 ft

2шт.

10

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

3/4 SAEM - 9/16 JICM

3шт.

12

06200125

HOSE CLAMP

3шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(2 clamps)

3шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2, NC (3 Clamps)

2шт.

14

86992213

NUT

3/8, NC, Lock

1шт.

15

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1, NC

1шт.

16

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

17

396150A1

VALVE, CONTROL

Hydraulic Depth

1шт.

396151A1

KIT

Hydraulic Depth (For 396150A1)

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16 x 2-1/4, NC

2шт.

20

86992212

NUT

5/16, NC, Lock

2шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

9шт.

22

218-593

TEE,9/16"-18, 37 Degree

9/16 JICM

2шт.

23

87735776

PIN,25.4mm OD x 111.5mm L

1 Clevis

4шт.

24

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

8шт.

25

87735776

PIN,25.4mm OD x 111.5mm L

1 Clevis, 19 - 31 ft

4шт.

25

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

1-1/4 Clevis, x 3-3/4, 34 ft

4шт.
