(90.100.AA[05]) - HEAVY DUTY EYEBOLT UPGRADE KIT 330

Запчасти Case IH 330 TRUE-TANDEM (90.100.AA[05]) - HEAVY DUTY EYEBOLT UPGRADE KIT 330 (90) - PLATFORM, CAB, BODYWORK AND DECALS

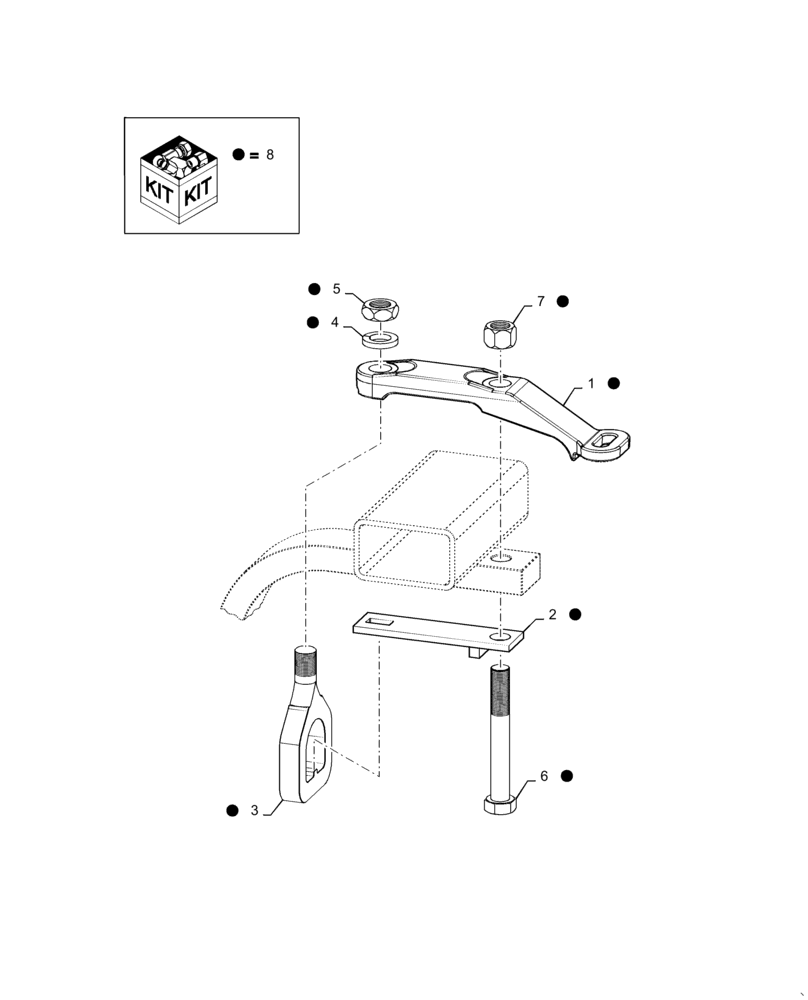

Схема запчастей Case IH 330 TRUE-TANDEM - (90.100.AA[05]) - HEAVY DUTY EYEBOLT UPGRADE KIT 330 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
1
8
8
2
4
3
5
6
8
8
8
8
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47762502

MOUNT

Scraper 1" Eyebolt

1шт.

2

84559560

RETAINER

1шт.

3

84554629

EYEBOLT

1шт.

4

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

5

87553819

JAM NUT

1.000-8

1шт.

6

87477172

BOLT

.875 x 6.50

1шт.

7

87012309

LOCK NUT,7/8"-9, GB

1шт.

8

47708605

KIT

heavy duty eyebolt upgrade kit Incl 1 - 7 Ins sheet 47708608

1шт.
