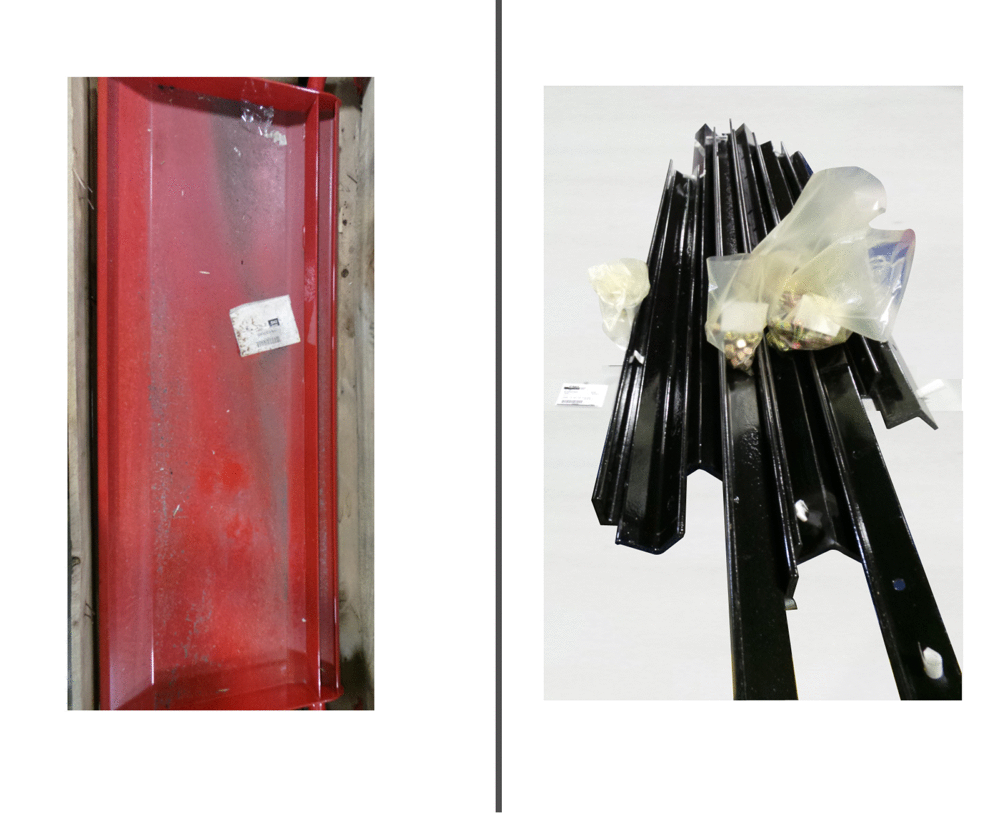

Запчасти Case IH 330 TRUE-TANDEM (75.200.33) - KIT SPOOL SCRAPERS 34 FT FIELD INSTALLED (75) - SOIL PREPARATION

1

87635304

KIT

Incl 2 - 16

1шт.

2

87590727

SCRAPER

74шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

74шт.

4

86992215

LOCK NUT,1/2"-13, GC

74шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

28шт.

6

85700693

NUT,5/8" - 11, Gr C

28шт.

7

87590728

SCRAPER BLADE

8 BLADE SCRAPPER ANGLE RR WING

1шт.

8

87590729

SCRAPER BLADE

8 BLADE SCRAPPER ANGLE RE WING

2шт.

9

87590730

SCRAPER BLADE

8 BLADE SCRAPER ANGLE LR WING

1шт.

10

87590742

SCRAPER BLADE

12 BLADE SCRAPPER ANGLE LF MAIN

1шт.

11

87590741

SCRAPER BLADE

12 BLADE SCRAPPER RE MAIN

1шт.

12

87590738

SCRAPER BLADE

ANGLE SCRAPPER 11 BLADE LR MAIN

1шт.

13

87612277

SCRAPER BLADE

ANGLE SCRAPPER 10 BLADE LR WING

1шт.

14

87612278

SCRAPER BLADE

ANGLE SCRAPPER 10 BLADE RR WING

1шт.

15

87590736

SCRAPER BLADE

11 BLADE SCRAPER ANGLE RR MAIN

1шт.

16

87590731

SCRAPER BLADE

8 BLADE SCRAPPER ANGEL LF WING

2шт.
