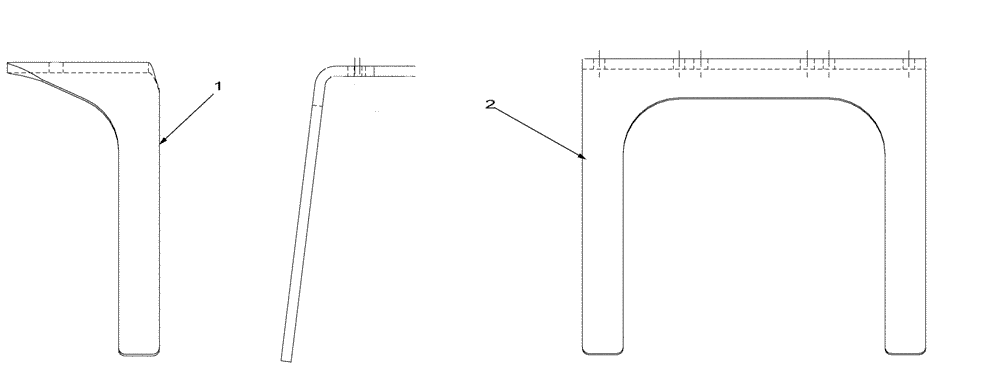

Запчасти Case IH 330 TRUE-TANDEM (75.200.20) - SCRAPER EXTENSION (75) - SOIL PREPARATION

1

84232143

SCRAPER BLADE

Right Hand

3шт.

1

84232149

SCRAPER BLADE

Left Hand

3шт.

2

84226988

SCRAPER BLADE

Double Wide

2шт.

3

84229417

SPACER

Not Shown

2шт.

4

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

Not Shown

6шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

Not Shown

2шт.

6

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Not Shown

2шт.

7

9602228

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

Not Shown

2шт.

8

86992216

NUT

5/8, Not Shown

8шт.

9

86992215

LOCK NUT,1/2"-13, GC

Not Shown

4шт.
