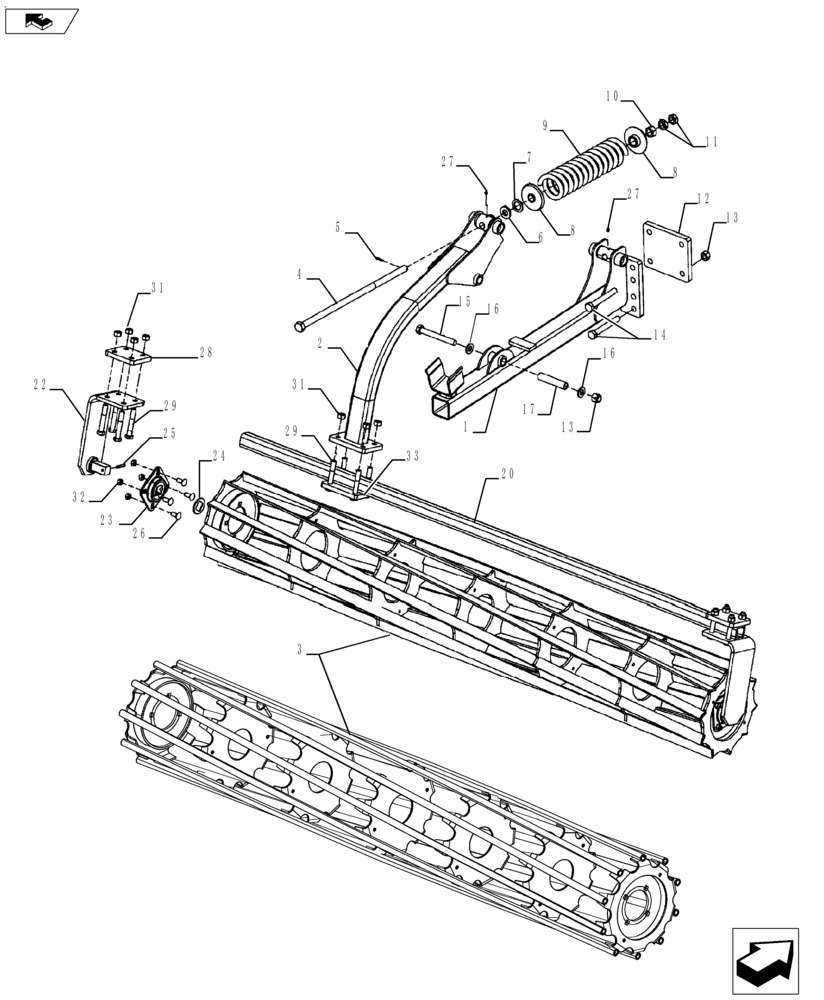

Запчасти Case IH 330 TRUE-TANDEM (75.200.18) - BASKET HARROW PARTS BREAKDOWN 2009 AND AND AFTER MODELS (75) - SOIL PREPARATION

1

87731452

MOUNT

Arm Assembly

1шт.

2

87731453

SUPPORTING ARM

Rear Mount

1шт.

3

06407365

BASKET ASSY

60 Inch, Round

1шт.

3

84288353

BASKET

67 Inch, Flat

1шт.

3

84296836

BASKET

67 Inch, Round

1шт.

3

06407375

BASKET ASSY

75 Inch, Round

1шт.

3

87441583

BASKET ASSY

75 Inch, Flat

1шт.

3

06407385

BASKET ASSY

90 Inch, Round

1шт.

3

87438199

BASKET ASSY,331.6mm OD x 2279mm L

90 Inch, Flat

1шт.

3

87438198

BASKET ASSY,331.6mm OD x 2657mm L

105 Inch, Flat

1шт.

3

06407395

BASKET ASSY

105 Inch, Round

1шт.

3

87438010

BASKET ASSY,331.6mm OD x 3038mm L

120 Inch, Flat

1шт.

3

06407315

BASKET ASSY

120 Inch, Round

1шт.

3

84499369

BASKET

60 Inch Flat HD

1шт.

3

84499372

BASKET

67 Inch Flat HD

1шт.

3

84499376

BASKET

75 Inch Flat HD

1шт.

3

84499379

BASKET

90 Inch Flat HD

1шт.

3

84499381

BASKET

105 Inch Flat HD

1шт.

3

84499383

BASKET

120 Inch Flat HD

1шт.

4

16901495

SPECIAL BOLT

7/8 x 23-1/2 NC

2шт.

5

87485007

COILED PIN

2шт.

6

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

4шт.

7

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 Machined

2шт.

8

20090120

SPRING BOX

Double Casting

4шт.

9

24162506

SPRING

Compression

2шт.

10

9849647

NUT,7/8"-9, G5

2шт.

11

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

12

87731168

PLATE

Mounting, 4- Bolt Narrow

2шт.

13

86992217

NUT

3/4 NC

10шт.

14

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

8шт.

15

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

16

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

17

06407149

BUSHING

Pivot

2шт.

19

87730782

PLATE

Basket End

2шт.

20

06407351

SUPPORT TUBE

60 Inch Basket

1шт.

20

84288356

SUPPORT TUBE,1689 mm L

67 Inch Basket

1шт.

20

06407371

SUPPORT TUBE,1892.3 mm Length

Support, 75 Inch Basket

1шт.

20

06407381

SUPPORT TUBE,2273.3 mm Length

Support, 90 Inch Basket

1шт.

20

06407391

SUPPORT TUBE,2648 mm Length

Support, 105 Inch Basket

1шт.

20

06407311

SUPPORT TUBE

Support, 120 Inch Basket

1шт.

21

86992216

NUT

5/8, NC Stover

8шт.

22

84211286

BRACKET, SUPPORTING

Plate Assembly, Mount Bearing Basket

2шт.

23

47451691

BEARING CONE

Maintenance Free

2шт.

23

84151226

BALL BEARING,33.02mm ID

Greasable With Zerk

2шт.

24

84151924

SHIM

Shim, Square Hole

2шт.

25

84221259

SLOTTED PIN

1 Inch

2шт.

26

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

8шт.

27

87414

LUBE NIPPLE,1/4" - 28

4шт.

28

87741924

PLATE

Basket Support

2шт.

29

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

8шт.

31

86992216

NUT

5/8 Stover

16шт.

32

86992215

LOCK NUT,1/2"-13, GC

8шт.

33

87729259

PLATE

4 Bolt

2шт.
