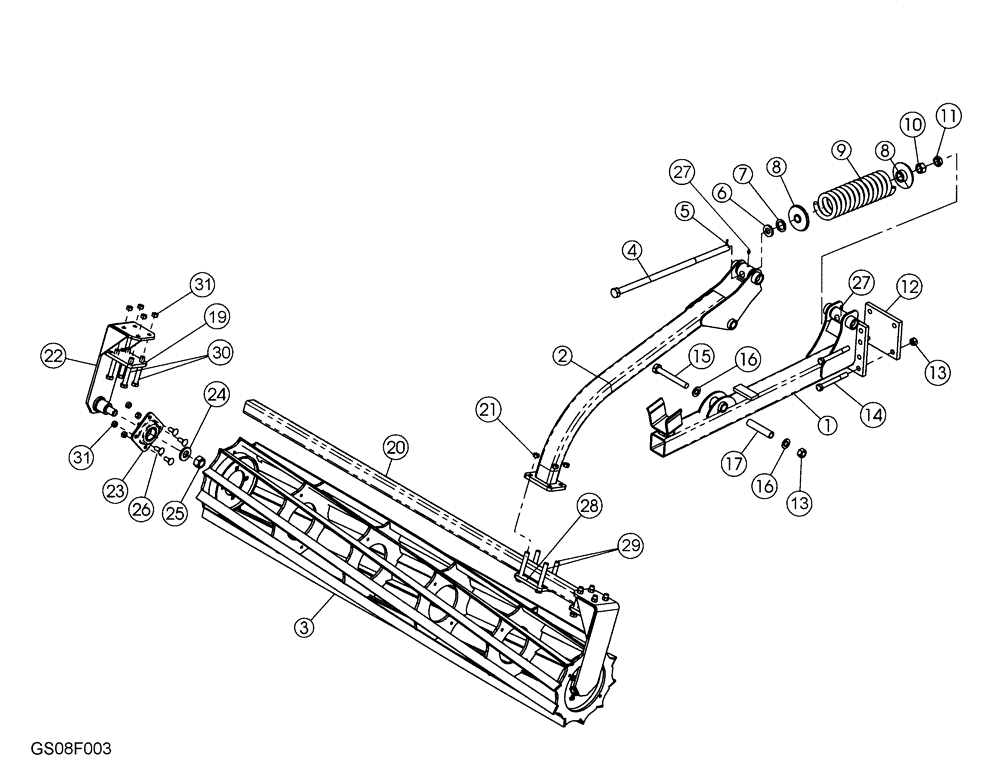

Запчасти Case IH 330 TRUE-TANDEM (75.200.17) - BASKET HARROW PARTS BREAKDOWN 2008 MODELS (75) - SOIL PREPARATION

1

87731452

MOUNT

Arm Assembly, Mounting

2шт.

2

87731453

SUPPORTING ARM

Rear Mount

2шт.

3

87438198

BASKET ASSY,331.6mm OD x 2657mm L

105 Inch, Flat

1шт.

3

87438010

BASKET ASSY,331.6mm OD x 3038mm L

120 Inch, Flat

1шт.

4

16901495

SPECIAL BOLT

7/8 x 23-1/2, NC

2шт.

5

438-31220

PIN,3/16" x 1 1/4", Coiled

2шт.

6

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

4шт.

7

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 Ga

2шт.

8

20090120

SPRING BOX

Casting, Double

4шт.

9

24162506

SPRING

Compression

2шт.

10

425-1014

NUT,7/8"-9, G5

2шт.

11

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

12

87731168

PLATE

Plate Mounting, 4-Bolt, Narrow

2шт.

13

280375

NUT,3/4"-10, GC

10шт.

14

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

8шт.

15

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

16

495-11081

WASHER,3/4", SAE

4шт.

17

06407149

BUSHING

Pivot

2шт.

19

87730782

PLATE

Plate Basket End

4шт.

20

06407391

SUPPORT TUBE,2648 mm Length

Support, 105 Inch Basket

1шт.

20

06407311

SUPPORT TUBE

Support, 120 Inch Basket

1шт.

21

85700693

NUT,5/8" - 11, Gr C

8шт.

22

06407300

PLATE ASSY.

Mount, Bearing Basket

2шт.

23

ST491A

BALL BEARING,45mm ID

2шт.

23

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

2шт.

24

17916100

WASHER

2шт.

25

86992219

LOCK NUT

1 Inch

2шт.

26

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

28

87729259

PLATE

Plate Basket Support

2шт.

29

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

8шт.

30

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

8шт.

Refer To Service Bulletin SB-4371 For Hardware Upgrade From Using 1/2 Inch U-Bolts

1шт.

Refer To Service Bulletin SB-4374 For Adding 7/8 Inch Jam Nut To Spring Bolt Assembly To Lock Spring From Rotating

1шт.

31

86992215

LOCK NUT,1/2"-13, GC

Stover

16шт.
