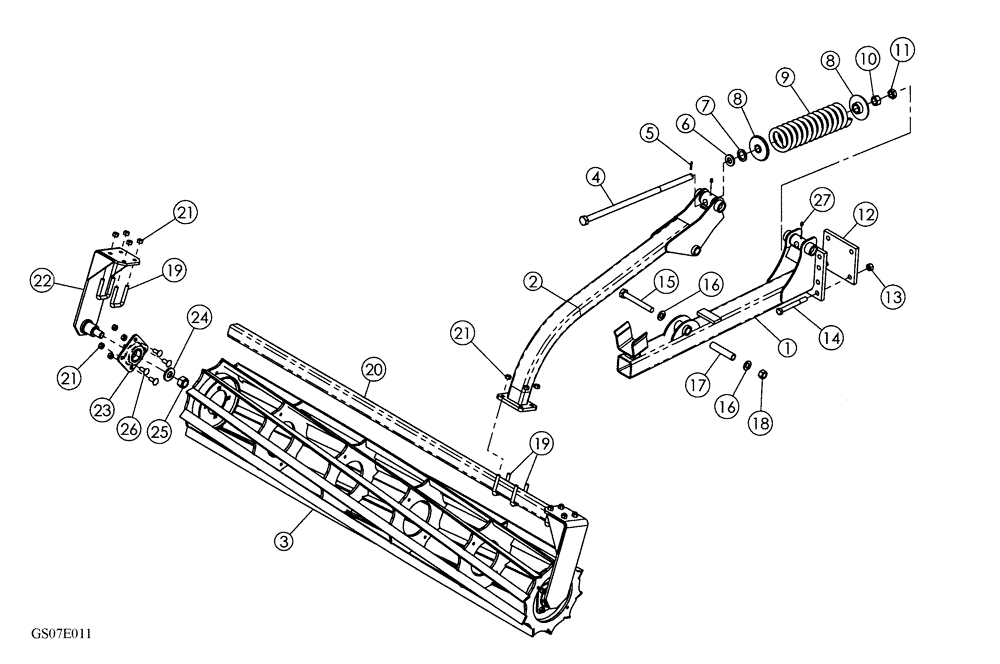

Запчасти Case IH 330 TRUE-TANDEM (75.200.16) - BASKET HARROW PARTS BREAKDOWN 2007 AND PRIOR MODELS (75) - SOIL PREPARATION

1

87610925

MOUNTING PARTS

Arm Assembly

2шт.

2

87610924

SUPPORT

Frame, Rear Mount

2шт.

3

87438198

BASKET ASSY,331.6mm OD x 2657mm L

105 Inch, Flat

1шт.

3

87438010

BASKET ASSY,331.6mm OD x 3038mm L

120 Inch, Flat

1шт.

4

16901495

SPECIAL BOLT

7/8 x 23-1/2, NC

2шт.

5

438-31220

PIN,3/16" x 1 1/4", Coiled

2шт.

6

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

4шт.

7

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 Ga

2шт.

8

20090120

SPRING BOX

Casting Double

4шт.

9

24162506

SPRING

Compression

2шт.

10

425-1014

NUT,7/8"-9, G5

2шт.

11

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

12

87610949

PLATE

Mounting, 4-Bolt

2шт.

13

86992216

NUT

5/8, NC

8шт.

14

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

8шт.

15

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

16

495-11081

WASHER,3/4", SAE

4шт.

17

06407149

BUSHING

Pivot

2шт.

18

86992217

NUT

3/4 Stover

2шт.

19

16308110

U-BOLT

1/2 NC x 2 x 3

4шт.

Refer To Service Bulletin SB-4371 For Hardware Upgrade From Using 1/2 Inch U-Bolts

1шт.

Refer To Service Bulletin SB-4374 For Adding 7/8 Inch Jam Nut To Spring Bolt Assembly To Lock Spring From Rotating

1шт.

20

06407391

SUPPORT TUBE,2648 mm Length

Support, 105 Inch Basket

1шт.

20

06407311

SUPPORT TUBE

Support, 120 Inch Basket

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

Stover

16шт.

22

06407300

PLATE ASSY.

Bolt On Bearing

2шт.

23

ST491

BEARING

2шт.

24

17916100

WASHER

2шт.

25

86992219

LOCK NUT

1 Inch, Stover, NC

2шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.
