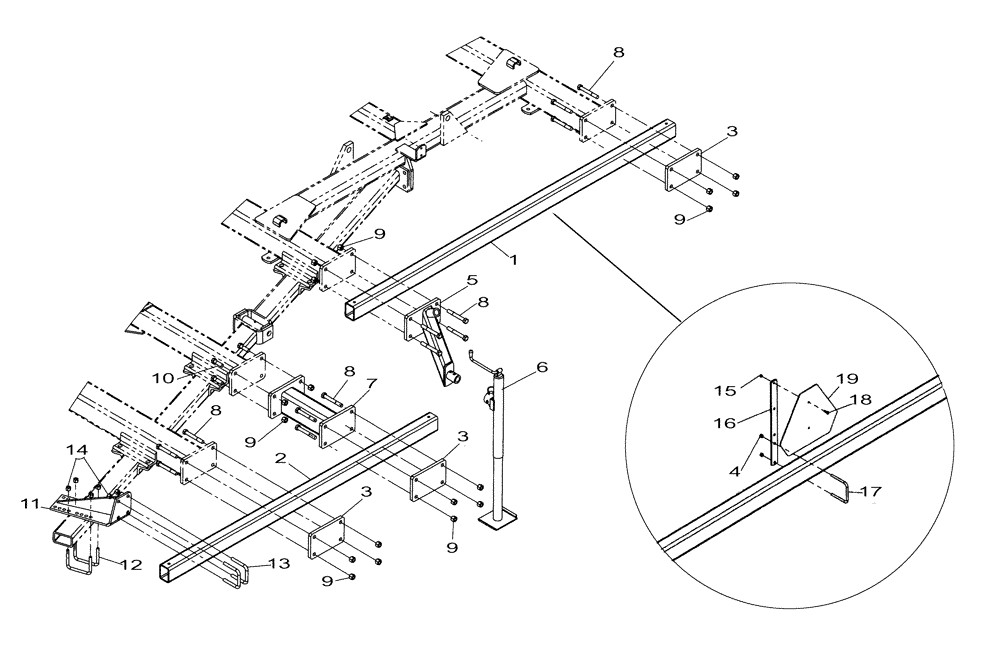

Запчасти Case IH 330 TRUE-TANDEM (75.200.15) - BASKET MOUNTING PARTS 2009 AND AFTER MODELS (75) - SOIL PREPARATION

1

86988424

TUBE,1499 mm L

Main, Harrow Mount, 59 Inch, 22 Foot

2шт.

1

86988845

TUBE,2210 mm L

Main, Harrow Mount, 87 Inch, 22 And 25 Foot

2шт.

1

86988847

TUBE,2972 mm L

Main Harrow Mount, 117 Inch, 31 Foot

2шт.

1

86988846

TUBE,2642 mm L

Main Harrow Mount, 104 Inch, 31 Foot

2шт.

1

86988846

TUBE,2642 mm L

Main Harrow Mount, 104 Inch, 34 Foot

2шт.

1

86988847

TUBE,2972 mm L

Main Harrow Mount, 117 Inch, 34 Foot

2шт.

1

86988846

TUBE,2642 mm L

Main Harrow Mount, 104 Inch, 34 Foot

2шт.

2

86988845

TUBE,2210 mm L

Wing Harrow Mount, Basket, 87 Inch, 22 Foot

1шт.

2

86988845

TUBE,2210 mm L

Wing Harrow Mount, Tine, 87 Inch, 22 Foot

1шт.

2

86988846

TUBE,2642 mm L

Wing Harrow Mount, Basket, 104 Inch, 25 And 31 Foot

1шт.

2

86988846

TUBE,2642 mm L

Wing Harrow Mount, Tine, 104 Inch, 25 And 31 Foot

1шт.

2

87635261

CROSSBAR

Wing Harrow Mount, Basket, 140 Inch, 34 Foot

1шт.

2

86988846

TUBE,2642 mm L

Wing Harrow Mount, Tine, 104 Inch, 34 Foot

1шт.

3

86989133

PLATE

Bolt, Harrow Mount

5шт.

4

86992213

NUT

2шт.

5

86991544

MOUNTING PARTS

1шт.

6

32230000

JACK

5000 lb

1шт.

7

451195A1

MOUNTING PARTS

Extension, 34 Foot

4шт.

7

86988422

MOUNTING PARTS

Extension, 25 Foot

4шт.

8

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

56шт.

9

86992217

NUT

34 Foot

32шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

34 Foot

8шт.

11

86984844

BRACKET

Harrow Mount Support, 25 - 34 Foot

2шт.

12

445844A1

U-BOLT

BOLT "U" 34 Foot

4шт.

13

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

BOLT "U" 34 Foot

4шт.

14

86992216

NUT

16шт.

15

86992211

NUT

2шт.

16

06000099

BRACE

1шт.

17

16306045

U-BOLT

2шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

19

311860A1

EMBLEM

SMV

1шт.
