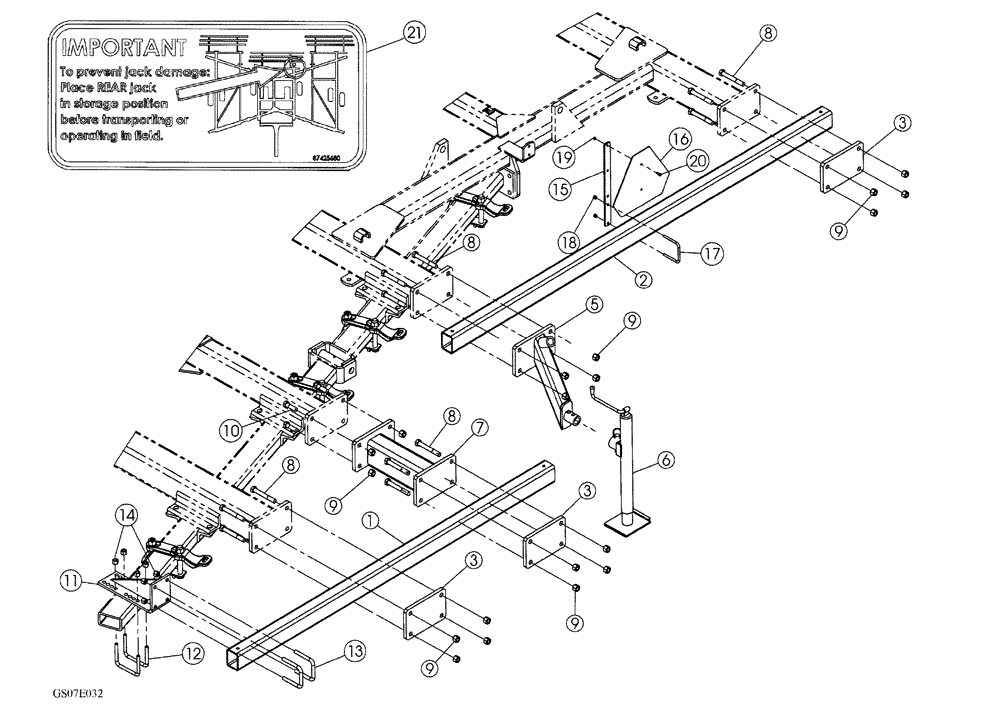

Запчасти Case IH 330 TRUE-TANDEM (75.200.14) - BASKET MOUNTING PARTS 2008 MODELS (75) - SOIL PREPARATION

1

86988846

TUBE,2642 mm L

Wing Harrow Mount, 104 in, 34 ft

2шт.

1

86988845

TUBE,2210 mm L

Wing Harrow Mount, 87 in, 25 ft

2шт.

2

87635261

CROSSBAR

Main Harrow Mount, 140 in, 34 ft

1шт.

3

86989133

PLATE

Bolt, Harrow Mount

5шт.

5

86991544

MOUNTING PARTS

1шт.

6

32230000

JACK

5000 lb

1шт.

7

451195A1

MOUNTING PARTS

Extension, 34 ft

2шт.

7

451195A1

MOUNTING PARTS

Extension, 34 ft

2шт.

8

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

25 ft

24шт.

8

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

34 ft

32шт.

8

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

42 ft

32шт.

9

280375

NUT,3/4"-10, GC

32шт.

9

85700693

NUT,5/8" - 11, Gr C

42 ft

32шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

25 - 34 ft

8шт.

11

86984844

BRACKET

Harrow Mount Support, 25 - 34 ft

2шт.

12

445844A1

U-BOLT

BOLT "U" 5/8 x 5-1/4 x 4-1/2, 25 - 34 ft

4шт.

13

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

BOLT "U" 5/8 X 4 X 4-1/2, 25 - 34 ft

4шт.

14

85700693

NUT,5/8" - 11, Gr C

16шт.

15

06000099

BRACE

1шт.

16

311860A1

EMBLEM

SMV

1шт.

17

16306045

U-BOLT

3/8 x 4 x 4

2шт.

18

86992213

NUT

3/8, Stover

2шт.

19

86992211

NUT

1/4, Stover

2шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

87425680

DECAL

Important, Rear Jack

1шт.
