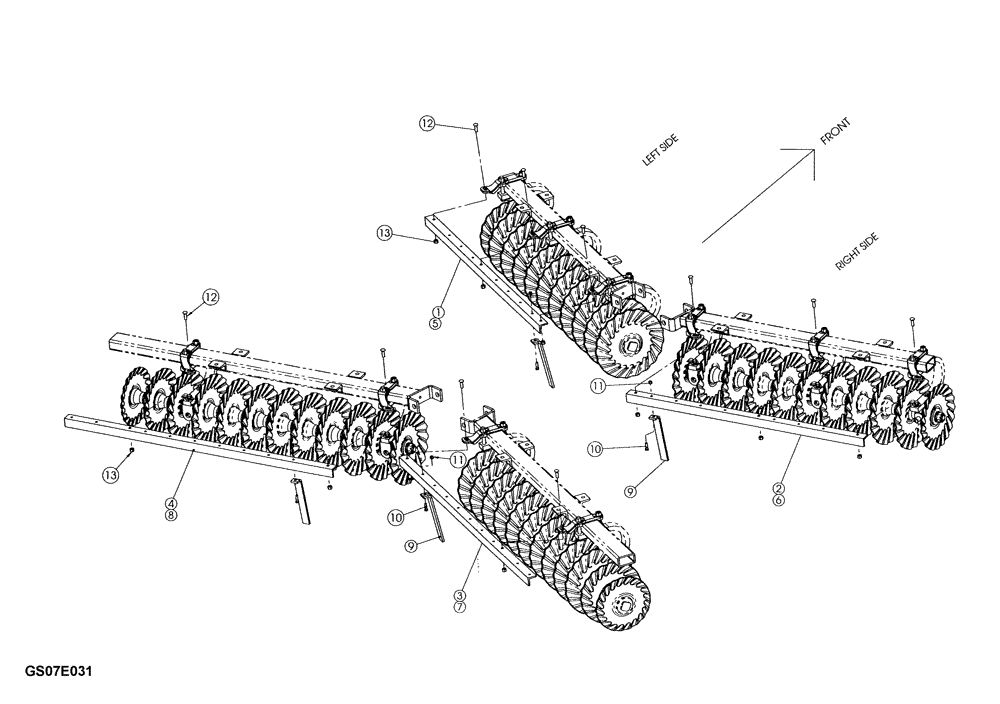

Запчасти Case IH 330 TRUE-TANDEM (75.200.12) - 7-1/2 INCH WING GANG SCRAPER PARTS - SERIAL NUMBER JFH0043969 AND PRIOR (75) - SOIL PREPARATION

1

87590731

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Front, Lh

1шт.

1

87612279

SCRAPER BLADE

Scraper, 11 Blades, 25 Foot, Front, Lh

1шт.

2

87590729

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Front, Rh

1шт.

2

87612280

SCRAPER BLADE

Scraper, 11 Blades, 25 Foot, Front, Rh

1шт.

3

87590728

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Rear, Rh

1шт.

3

87612282

SCRAPER BLADE

Scraper, 12 Blades, 25 Foot, Rear, Rh

1шт.

4

87590730

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Rear, Lh

1шт.

4

87612281

SCRAPER BLADE

Scraper, 12 Blades, 25 Foot, Rear, Lh

1шт.

5

87590731

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Front, Lh

1шт.

6

87590729

SCRAPER BLADE

Scraper, 8 Blades, 34 Foot, Front, Rh

1шт.

7

87612278

SCRAPER BLADE

Scraper, 10 Blades, 34 Foot, Rear, Rh

1шт.

8

87612277

SCRAPER BLADE

Scraper, 10 Blades, 34 Foot, Rear, Lh

1шт.

9

87590727

SCRAPER

Scraper

1шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

11

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

12

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 - 11 X 2, Gd 5

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.
