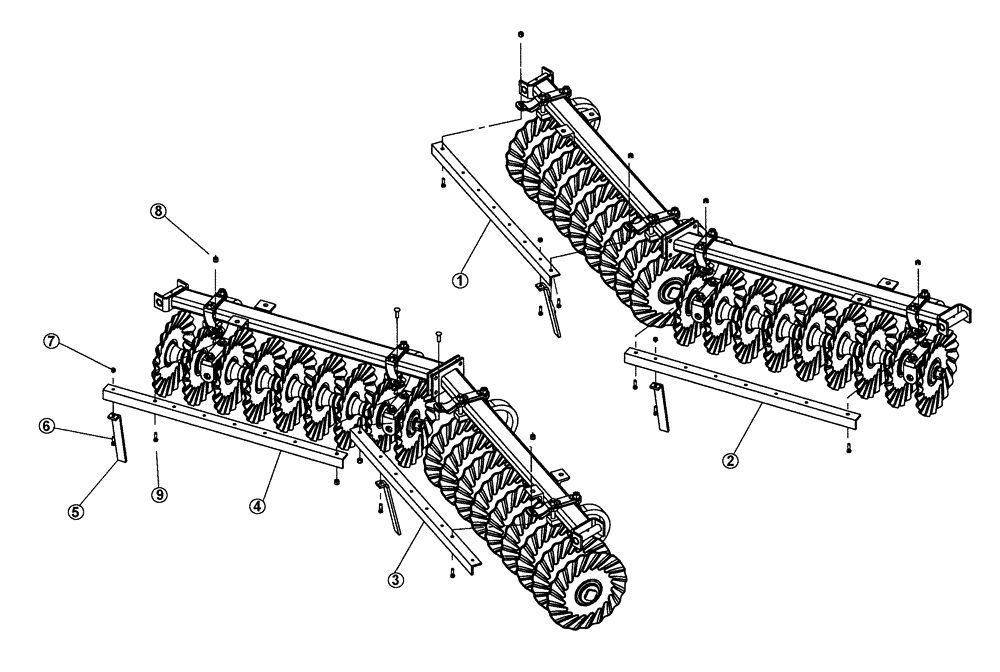

Запчасти Case IH 330 TRUE-TANDEM (75.200.11) - 7-1/2 INCH MAIN GANG SCRAPER PARTS - SERIAL NUMBER JFH0043970 AND AFTER (75) - SOIL PREPARATION

1

84272061

ANGLE

Blade Scraper, 8 Blade, Front, Lh, 22 Foot 1087 mm

1шт.

1

84151440

SCRAPER BLADE

Angle, 8 Blade, Front, Lh, 25 1464 mm

1шт.

1

84151438

SCRAPER BLADE

Angle, 10 Blade, Front, Lh, 34 Foot 1850 mm

1шт.

1

84151439

SCRAPER BLADE

Angle Blade 8 Front LH 31 Foot 1657 mm

1шт.

2

84272061

ANGLE

Blade Scraper, 8 Blade, Front, Rh, 22 Foot 1087 mm

1шт.

2

84151440

SCRAPER BLADE

Angle, 8 Blade, Front, Rh, 25 1464 mm

1шт.

2

84151438

SCRAPER BLADE

Angle, 10 Blade, Front, Rh, 34 Foot 1850 mm

1шт.

2

84151439

SCRAPER BLADE

Angle Blade 8 Front LH 31 Foot 1657 mm

1шт.

3

84151442

SCRAPER BLADE

Angle, 9 Blade, Rear, Rh, 22 Foot 1271 mm

1шт.

3

84151439

SCRAPER BLADE

Angle, 9 Blade, Rear, Rh, 25 And 31 Foot 1657 mm

1шт.

3

84202265

ANGLE

Blade Scraper, 11 Blade, Rear, Rh, 34 Foot 2084 mm

1шт.

4

84151442

SCRAPER BLADE

Angle, 9 Blade, Rear, Lh, 22 Foot 1271 mm

1шт.

4

84151439

SCRAPER BLADE

Angle, 9 Blade, Rear, Lh, 25 And 31 Foot 1657 mm

1шт.

4

84202265

ANGLE

Blade Scraper Angle, 11 Blade, Rear, Lh, 34 Foot 2084 mm

1шт.

5

84151445

SCRAPER BLADE

Scraper 419 mm

1шт.

6

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

7

85700693

NUT,5/8" - 11, Gr C

1шт.

8

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

9

84180923

FLANGE NUT

P/T, 5/8"-11 GR G, ZND

1шт.
