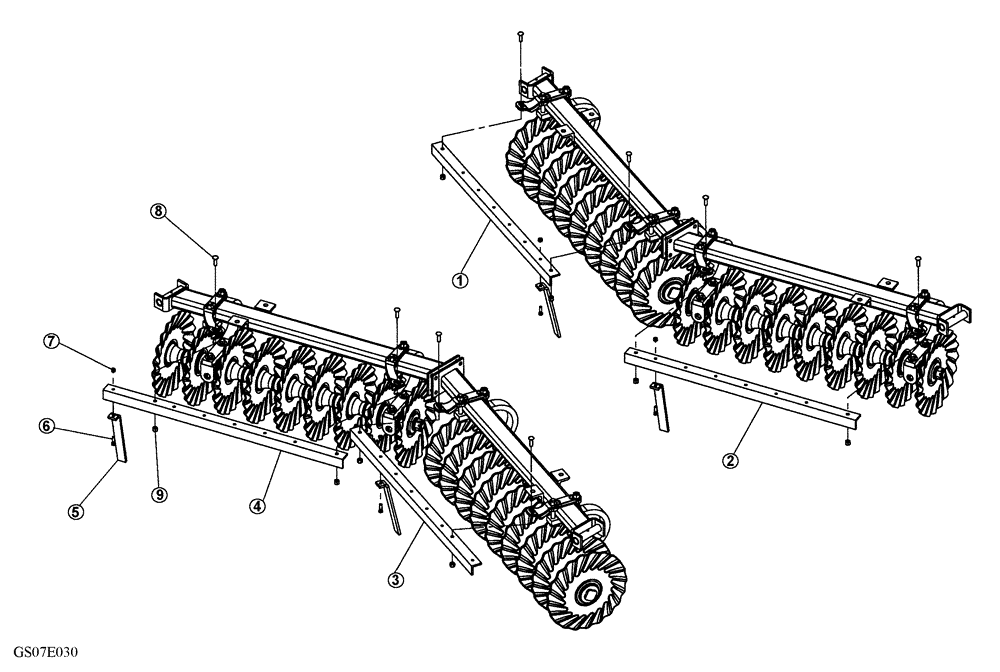

Запчасти Case IH 330 TRUE-TANDEM (75.200.10) - 7-1/2 INCH MAIN GANG SCRAPER PARTS - SERIAL NUMBER JFH0043969 AND PRIOR (75) - SOIL PREPARATION

1

87612275

SCRAPER BLADE

Scraper, 9 Blades, 25 Foot, Front, Lh

1шт.

1

87590742

SCRAPER BLADE

Scraper 12 Blades, 34 Foot, Front, Lh

1шт.

2

87612276

SCRAPER BLADE

Scraper, 9 Blades, 25 Foot, Front, Rh

1шт.

2

87590741

SCRAPER BLADE

Scraper, 12 Blades, 34 Foot, Front, Rh

1шт.

3

87612274

SCRAPER BLADE

Scraper, 9 Blades, 25 Foot, Rear, Rh

1шт.

3

87590736

SCRAPER BLADE

Scraper, 11 Blades, 34 Foot, Rear, Rh

1шт.

3

84202265

ANGLE

Scraper 11 Blades Turbo

1шт.

4

87612272

SCRAPER BLADE

Scraper, 9 Blades, 25 Foot, Rear, Lh

1шт.

4

87590738

SCRAPER BLADE

Scraper, 11 Blades, 34 Foot, Rear, Lh

1шт.

5

87590727

SCRAPER

Scraper

1шт.

6

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

8

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

9

85700693

NUT,5/8" - 11, Gr C

1шт.
