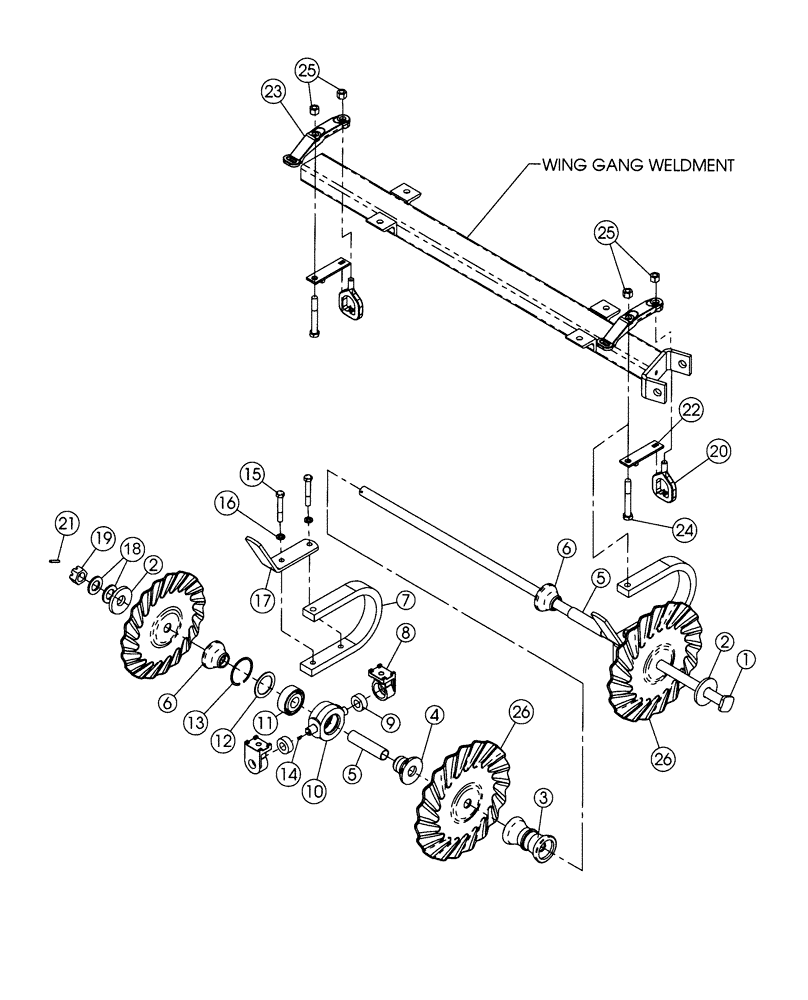

Запчасти Case IH 330 TRUE-TANDEM (75.200.09) - 7-1/2 INCH CUSHION WING GANG PARTS - SERIAL NUMBER JFH0043970 AND AFTER (75) - SOIL PREPARATION

1

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

Arbor, 8 Blades, 31 & 34 ft

1шт.

1

1986246C5

SPECIAL BOLT,Square Head, 1-1/2" - 6 x 71.85", Carbon Steel

Arbor, 10 Blades, 31 & 34 ft

1шт.

1

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

Arbor, 11 Blades, 22 & 25 ft

1шт.

1

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

Arbor, 12 Blades, 22 & 25 ft

1шт.

2

139773C1

WASHER

End

2шт.

3

1263631C1

SPOOL

Spacing, 7-1/2

1шт.

4

101190C1

SPOOL

Bearing, Long

1шт.

5

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Spacing Support

1шт.

6

1263636C1

SPOOL

Bearing, Short

1шт.

7

193831A1

SPRING

Bearing

1шт.

8

195109A1

TRUNNION

Pivot

1шт.

9

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special

1шт.

10

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

11

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

1шт.

12

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

1шт.

13

101-21433

SNAP RING,#433, 4.641", Int

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

16

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

17

84206125

ANGLE

Deflector

1шт.

18

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

19

425-1224

SLOTTED NUT,1 1/2"-6, G5

Hex

1шт.

20

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT, EYE

1шт.

21

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

22

244620A1

RETAINER

Bolt, Bar

1шт.

23

86988730

MOUNTING PARTS

1шт.

24

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.

25

87012309

LOCK NUT,7/8"-9, GB

1шт.

26

87630573

TILLAGE BLADE

Turbo Blade, 20, LH

1шт.

26

87574699

TILLAGE BLADE

Turbo Blade, 18, LH

1шт.

26

87574695

TILLAGE BLADE

Turbo Blade, 16, LH

1шт.

26

87630572

TILLAGE BLADE

Turbo Blade, 20, RH

1шт.

26

87574703

TILLAGE BLADE,466mm OD x 6.5mm Thk

Turbo Blade, 18, RH

1шт.

26

87574698

TILLAGE BLADE

Turbo Blade, 16,RH

1шт.
