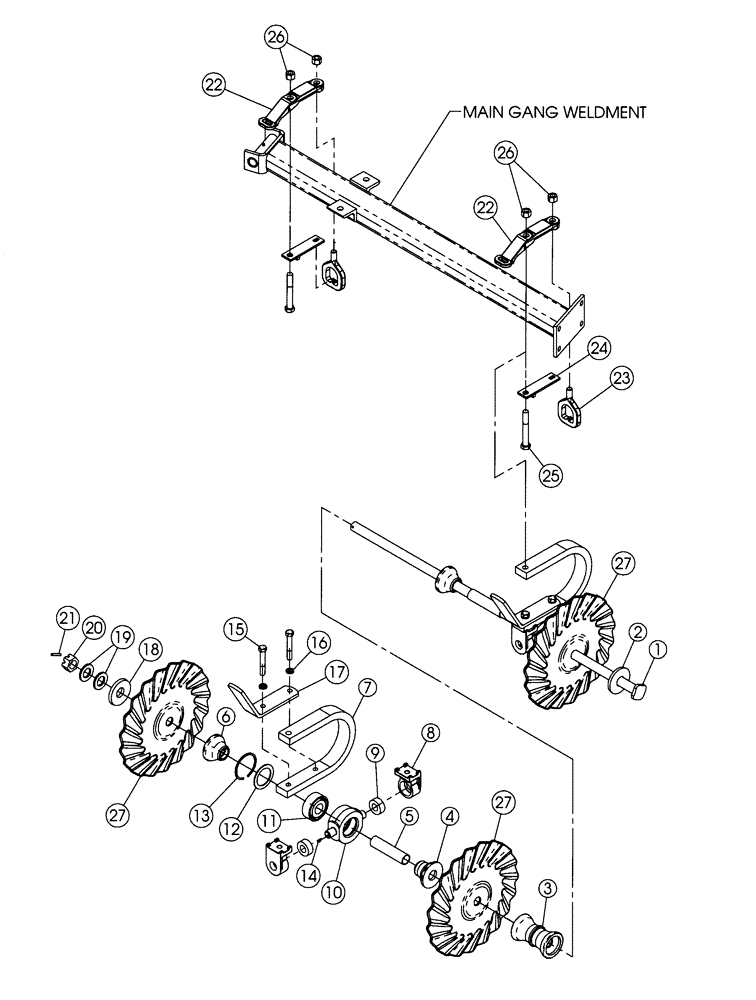

Запчасти Case IH 330 TRUE-TANDEM (75.200.07) - 7-1/2 CUSHION MAIN GANG PARTS - SERIAL NUMBER JFH0043970 AND AFTER (75) - SOIL PREPARATION

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

Arbor, 7 Blades, 22 & 25 ft

1шт.

1

1263613C5

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

Arbor, 9 Blades, 25 & 31 ft

1шт.

1

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

Arbor, 11 Blades, 34 ft

1шт.

1

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

Arbor, 12 Blades, 34 ft

1шт.

2

139773C1

WASHER

End

1шт.

3

1263631C1

SPOOL

Spacing, 7-1/2

1шт.

4

101190C1

SPOOL

Bearing, Long

1шт.

5

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Spacing Support

1шт.

6

1263636C1

SPOOL

Bearing, Short

1шт.

7

193831A1

SPRING

Standard Bearing

1шт.

8

195109A1

TRUNNION

Pivot

1шт.

9

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special

1шт.

10

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

Trunnion

1шт.

11

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

1шт.

12

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

1шт.

13

101-21433

SNAP RING,#433, 4.641", Int

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

16

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

17

84206125

ANGLE

Deflector, Shield

1шт.

18

139773C1

WASHER

End

1шт.

19

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

20

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

21

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

22

86988730

MOUNTING PARTS

1шт.

23

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT, EYE

1шт.

24

244620A1

RETAINER

Bolt

1шт.

25

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.

26

87012309

LOCK NUT,7/8"-9, GB

1шт.

27

87630572

TILLAGE BLADE

20 Inch, Rh, Turbo Disk Blade

1шт.

27

87630573

TILLAGE BLADE

20 Inch, Lh, Turbo Disk Blade

1шт.
