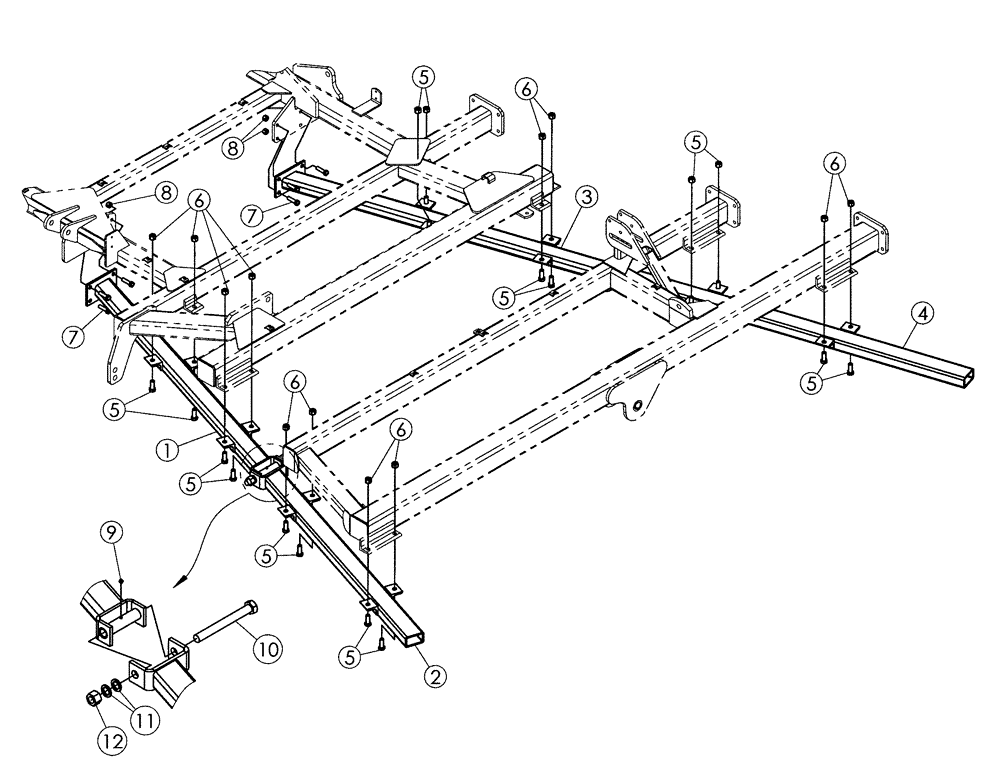

Запчасти Case IH 330 TRUE-TANDEM (75.200.05) - GANG TUBE PARTS 31 & 34 FT 330 TRUE-TANDEM (75) - SOIL PREPARATION

1

441758A1

BAR ASSY.

Main Gang, Front, LH, 31 ft

1шт.

1

441759A1

BAR ASSY.

Main Gang, Front, RH, 31 ft

1шт.

1

448644A1

TUBE

Main Gang, Front, LH, 34 ft

1шт.

1

448645A1

TUBE

Main Gang, Front, RH, 34 ft

1шт.

2

86985984

TUBE,3086 mm L

Wing Gang, Front, LH, 31 & 34 ft

1шт.

2

86985985

TUBE,3086 mm L

Wing Gang, Front, RH, 31 & 34 ft

1шт.

3

441758A1

BAR ASSY.

Main Gang, Rear, RH, 31 ft

1шт.

3

441759A1

BAR ASSY.

Main Gang, Rear, LH, 31 ft

1шт.

3

87403194

TUBE,2140 mm L

Main Gang, Rear, LH, 34 ft

1шт.

3

87403195

TUBE,2140 mm L

Main Gang, Rear, RH, 34 ft

1шт.

4

443230A1

TUBE

Wing Gang, Rear, LH, 31 & 34 ft

1шт.

4

443231A1

TUBE

Wing Gang, Rear, RH, 31 & 34 ft

1шт.

5

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

7/8 x 2-1/4, NC, gr 5

32шт.

6

87681198

NUT,Hex, 7/8"-9, 0.45 high

32шт.

7

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 X 2-3/4, NC, gr 5

8шт.

8

280375

NUT,3/4"-10, GC

8шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

396921A1

BOLT

1-1/4 x 11-1/2, NC, gr 5

4шт.

11

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1.312 x .183 thk

8шт.

12

86992220

NUT

1-1/4, NC

4шт.
