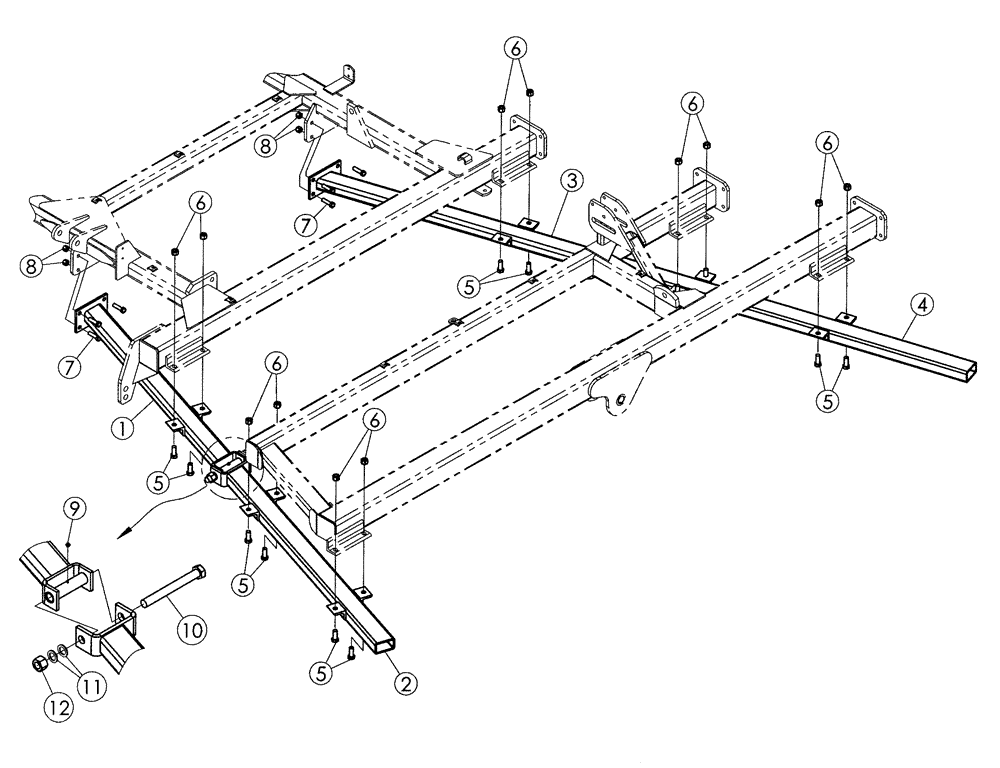

Запчасти Case IH 330 TRUE-TANDEM (75.200.04) - GANG TUBE PARTS 22 & 25 FOOT 330 TRUE-TANDEM (75) - SOIL PREPARATION

1

443126A1

TUBE

Main Gang, Front, LH, 22 Foot

1шт.

1

443127A1

TUBE

Main Gang, Front, Rh, 22 Foot

1шт.

1

441758A1

BAR ASSY.

Main Gang, Front, LH, 25 Foot

1шт.

1

441759A1

BAR ASSY.

Main Gang, Front, RH, 25 Foot

1шт.

2

87400466

TUBE,1930mm L

Wing Gang, Front, LH, 22 And 25 Foot

1шт.

2

87400467

TUBE,1930mm L

Wing Gang, Front, RH, 22 And 25 Foot

1шт.

3

443128A1

TUBE

Main Gang, Rear, LH, 22 Foot

1шт.

3

443129A1

TUBE

Main Gang, Rear, RH, 22 Foot

1шт.

3

441758A1

BAR ASSY.

Main Gang, Rear, RH, 25 Foot

1шт.

3

441759A1

BAR ASSY.

Main Gang, Rear, LH, 25 Foot

1шт.

4

443212A1

TUBE

Wing Gang, Rear, LH, 22 And 25 Foot

1шт.

4

443213A1

TUBE

Wing Gang, Rear, RH, 22 And 25 Foot

1шт.

5

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

7/8 x 2-1/4, NC, gr 5

24шт.

6

87681198

NUT,Hex, 7/8"-9, 0.45 high

24шт.

7

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5

8шт.

8

280375

NUT,3/4"-10, GC

8шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

396921A1

BOLT

1-1/4 x 11-1/2, NC, gr 5

4шт.

11

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1.312 x .183 thk

8шт.

12

86992220

NUT

1-1/4, NC

4шт.
