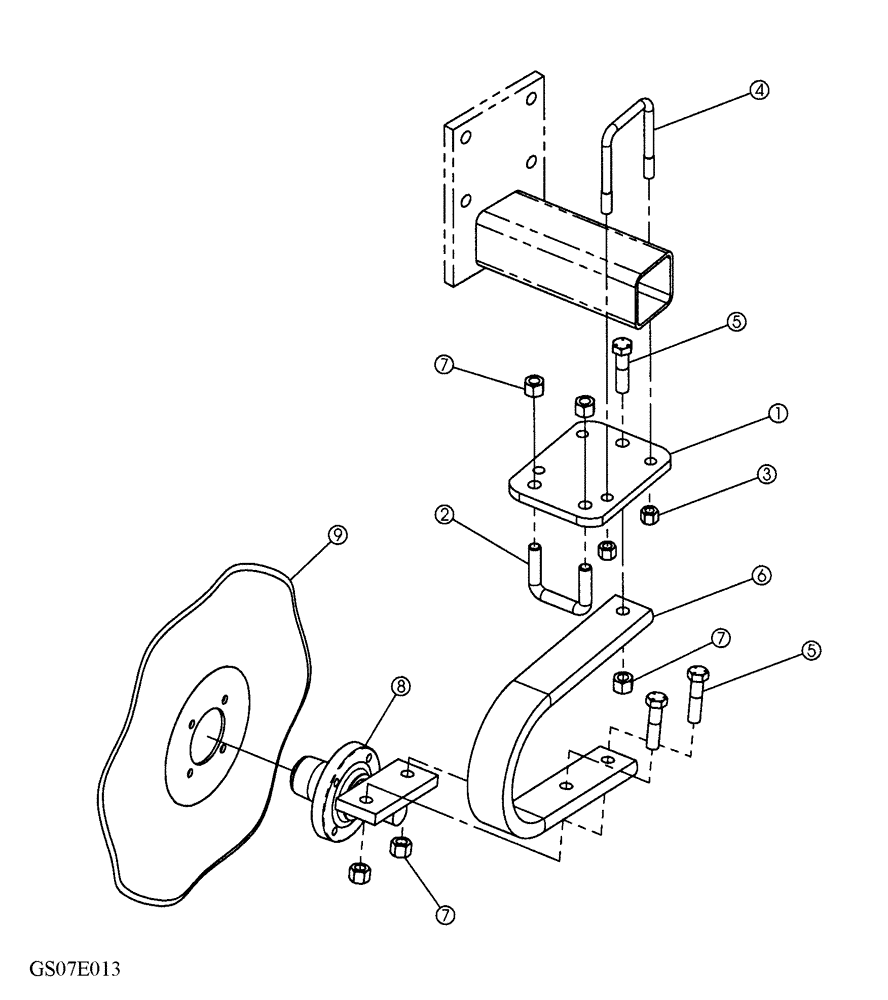

Запчасти Case IH 330 TRUE-TANDEM (75.200.03) - CENTER COULTER ASSEMBLY (75) - SOIL PREPARATION

1

87614378

PLATE

Plate, Coutler Hanger

1шт.

2

16312085

U-BOLT

3/4 x 3 x 3

1шт.

3

85700693

NUT,5/8" - 11, Gr C

4шт.

4

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2

2шт.

5

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

6

33090001

HANGER

Bearing

1шт.

7

280375

NUT,3/4"-10, GC

5шт.

8

87614379

MOUNTING PARTS

633 Hub And Spindle, Coutler Mount

1шт.

9

47674759

DISC

Thick Wavy Blade, Coulter, 22"

1шт.

9

443637A1

PLOW DISC

Original Wavy Blade, Coulter, 22"

1шт.

10

87847

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

Hub Disc

4шт.
