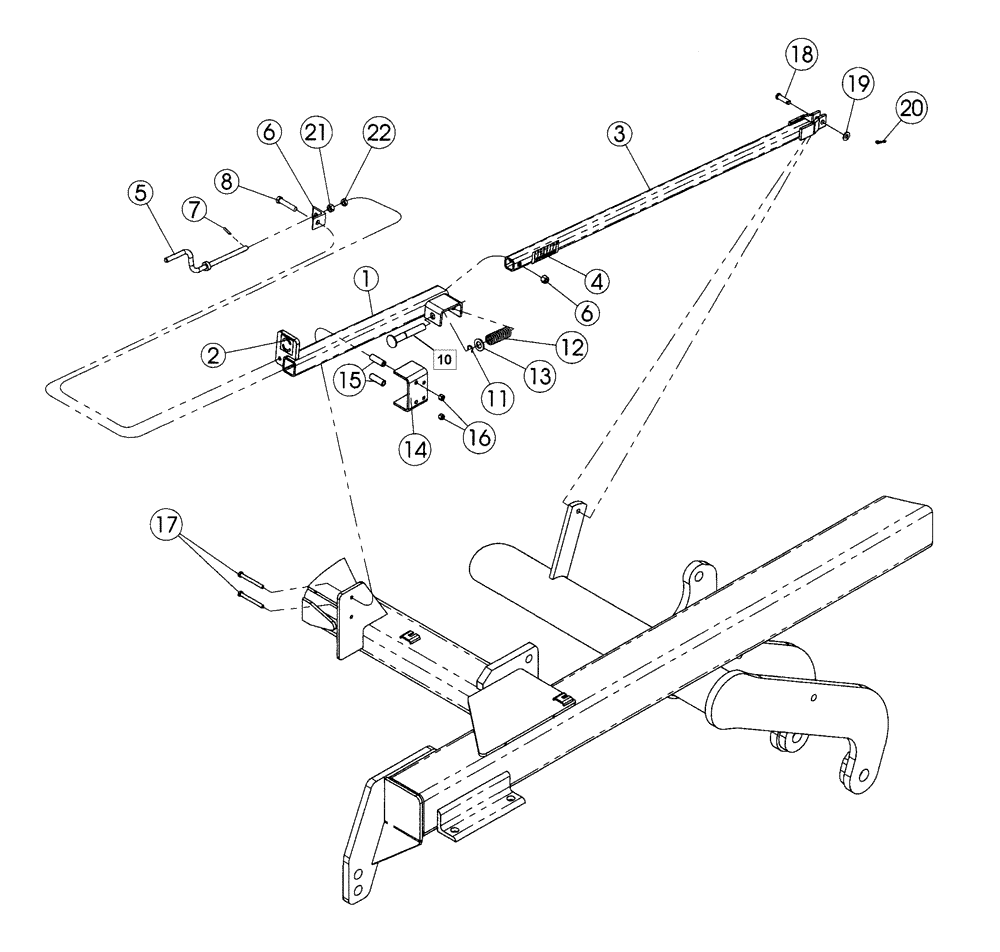

Запчасти Case IH 330 TRUE-TANDEM (75.200.02) - SINGLE POINT DEPTH CONTROL PARTS (75) - SOIL PREPARATION

1

441965A1

TUBE

Inc. 2

1шт.

2

87414072

DECAL

Depth

1шт.

3

87419276

TUBE,1398 mm L

Depth Control, 19ft and 22ft

1шт.

3

87419275

TUBE,1283 mm L

Depth Control, 25 ft.

1шт.

3

441967A1

TUBE

Depth Control, 34 ft, Inc. 4

1шт.

4

197881C2

FILLER

Depth Control

1шт.

5

87635395

CRANKED HANDLE

1шт.

6

87412462

ANGLE

Bolt On

1шт.

7

38-11220

LOCK PIN,3/16" x 1 1/4", Slotted

1шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

1шт.

10

396153A1

PIN

Hydraulic Depth Valve

1шт.

11

100-3375

SNAP RING,#75, .574" Dia, E-Type

1шт.

11

50526

SPARE PART

1шт.

Used On 2008 And After Models

1шт.

12

396152A1

COMPRESSION SPRING

Hydraulic Depth Valve

1шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

14

87519377

U-BRACKET

Depth Control

1шт.

15

87417259

SPACER

2шт.

16

86992213

NUT

3/8

2шт.

17

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

18

439-5828

HEADED PIN,1/2" x 1 3/4"

1шт.

19

495-11053

WASHER,1/2", SAE

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.
