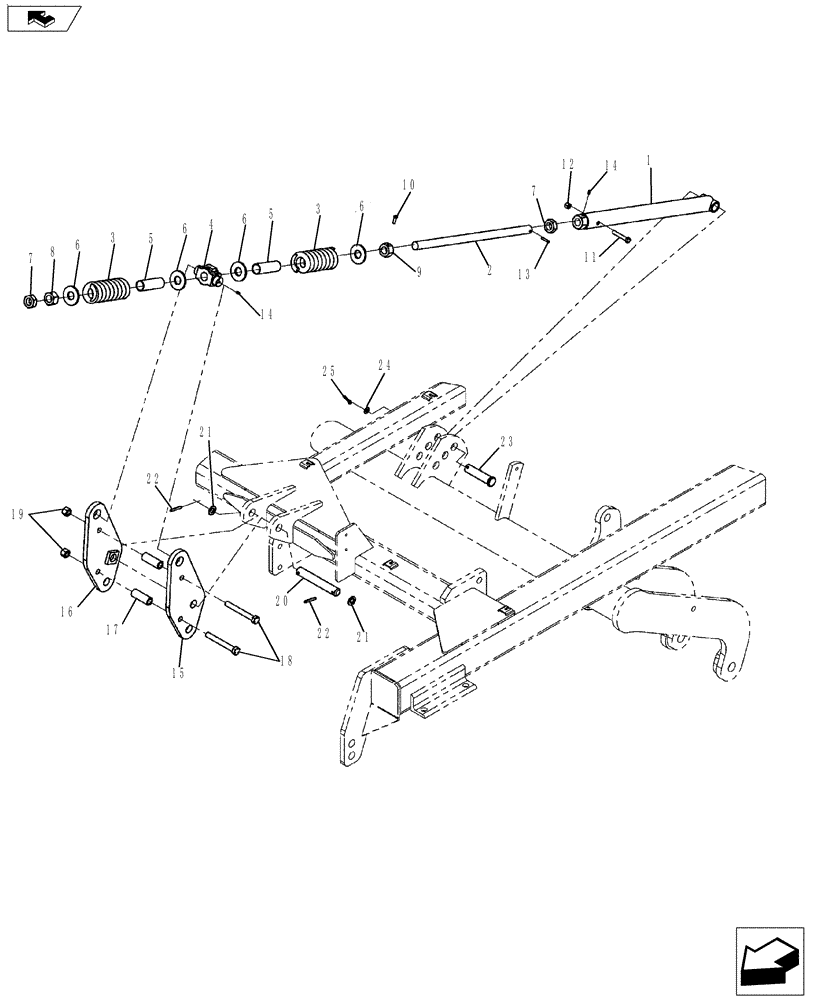

Запчасти Case IH 330 TRUE-TANDEM (75.200.01) - SPRING LEVELING PARTS (75) - SOIL PREPARATION

1

443059A1

TUBE

Leveling, 19 - 22 ft

1шт.

1

441624A1

TUBE

Leveling, 25 - 31 ft

1шт.

1

450543A1

TUBE

Leveling, 34 ft

1шт.

2

450541A1

ADJUSTMENT SCREW,M2 x 1.25 x 670mm

Threaded, Leveling

1шт.

3

446677A1

SPRING

Hitch

2шт.

4

446676A1

TRUNNION

Hitch Screw

1шт.

5

147968C1

SPACER

Spring

2шт.

6

495-81301

WASHER,1 9/32" x 3" x 1/4"

1-1/4

4шт.

7

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1-1/4, Jam

2шт.

8

425-1020

NUT,1 1/4"-7, G5

1-1/4, Hex

1шт.

9

447406A1

SLOTTED NUT

1-1/4, Hex with set screw hole

1шт.

10

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head

1шт.

11

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3, NC, gd 5

1шт.

12

86992215

LOCK NUT,1/2"-13, GC

1шт.

13

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1/4" x 1 1/2", Slotted

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

87401106

CRANK

Bell, LH

1шт.

16

87401107

CRANK

Bell, RH

1шт.

17

447862A1

TUBE

Leveling

2шт.

18

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4 x 6, NC, gr 5

2шт.

19

280375

NUT,3/4"-10, GC

2шт.

20

86989785

PIN

1-1/4 x 187 mm

1шт.

21

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1-1/4

2шт.

22

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

5/16" x 2 1/4", Slotted

2шт.

23

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

Clevis, 1-1/4 x 5

1шт.

24

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1-1/4

1шт.

25

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.
