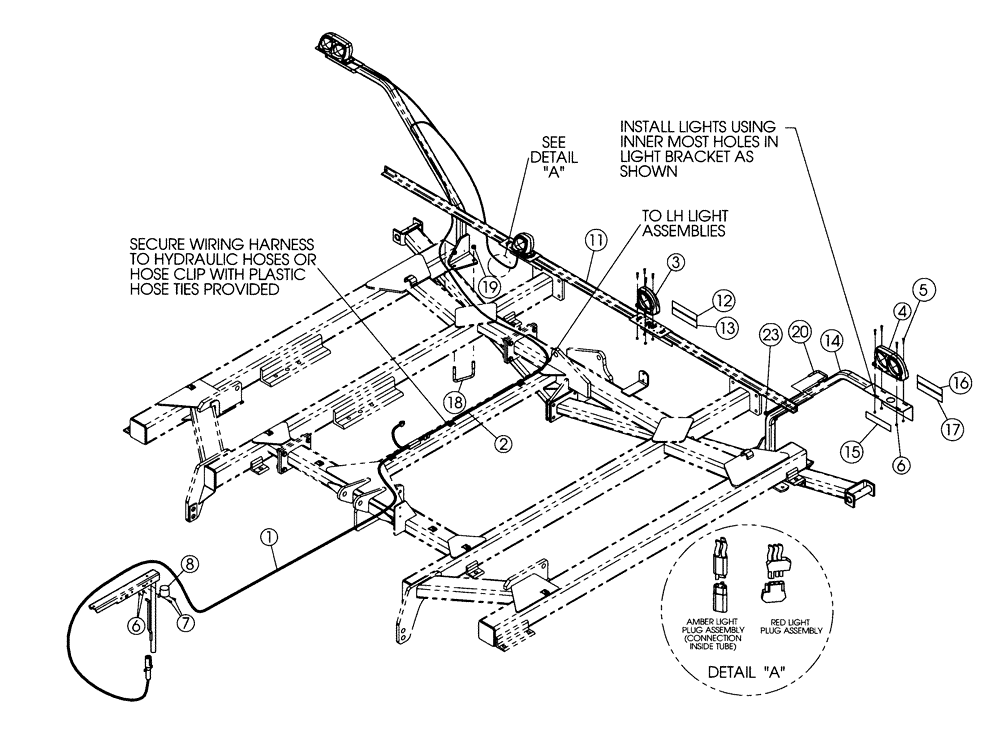

Запчасти Case IH 330 TRUE-TANDEM (55.404.06) - 34 FOOT LIGHT PARTS 2009 AND AFTER MODELS (55) - ELECTRICAL SYSTEMS

1

84161908

WIRE HARNESS

Front

1шт.

2

84141928

WIRE HARNESS

Rear

1шт.

3

87520382

LIGHT

Rh, Red

1шт.

3

87519398

LIGHT

Lh, Red

1шт.

4

87519394

LIGHT,12V, 21W, Amber

Amber

2шт.

5

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

6

86992211

NUT

1/4, NC

6шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

27601214

HOLDER

Seven Pin Connector Storage

1шт.

9

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Not Shown

1шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Not Shown

1шт.

11

84207339

FRAME

Inc. 12 - 13

1шт.

12

311863A1

REFLECTOR

Red

1шт.

13

311865A1

REFLECTOR

Flourescent

1шт.

14

84188459

BRACKET

Lh, Inc. 15 - 17

1шт.

14

84207340

FRAME

Lh, Inc. 15 - 17

1шт.

2010 And After Models

1шт.

14

84188463

BRACKET

Lh, Inc. 15 - 17

1шт.

14

84207341

FRAME

Rh, Inc. 15 - 17

1шт.

2010 And After Models

1шт.

15

311864A1

REFLECTOR

Yellow

1шт.

16

311863A1

REFLECTOR

Red

1шт.

17

311865A1

REFLECTOR

Flourescent

1шт.

18

409848A1

U-BOLT,5/8" - 11 x 127.80mm W x 107.81mm L, Spcl

BOLT "U" 5/8, Special

2шт.

19

86992216

NUT

5/8, NC

4шт.

20

87638853

U-BOLT

1/2 x 3 x 3

2шт.

23

86992215

LOCK NUT,1/2"-13, GC

Stover

4шт.
