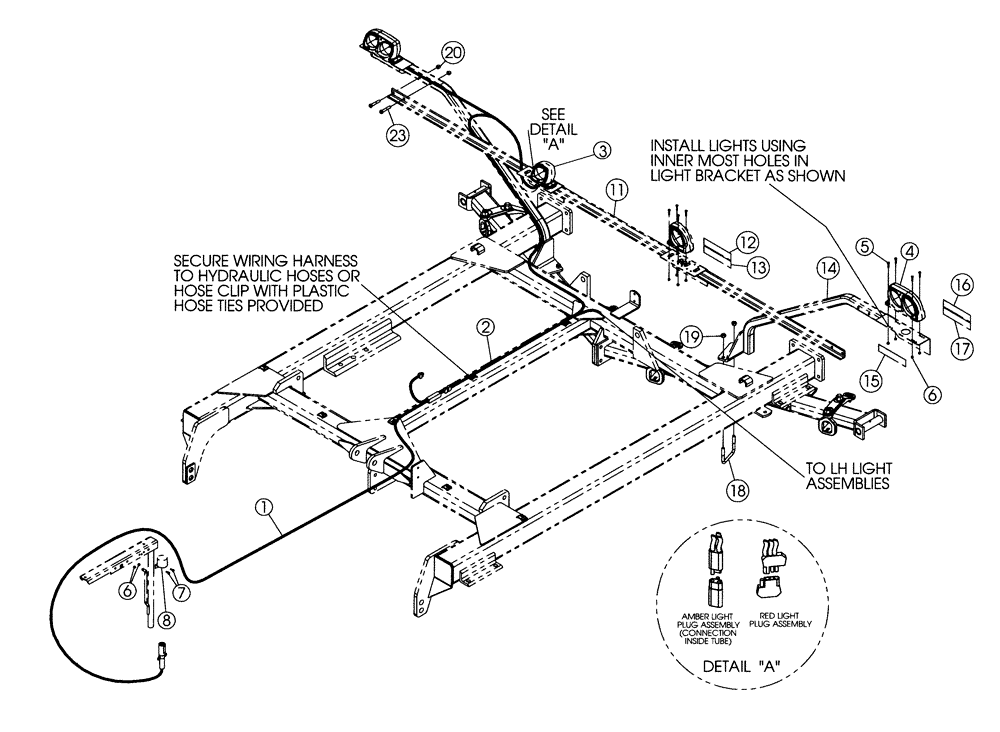

Запчасти Case IH 330 TRUE-TANDEM (55.404.04) - 31 FOOT LIGHT PARTS 2010 MODELS AND AFTER (55) - ELECTRICAL SYSTEMS

1

84161908

WIRE HARNESS

Front

1шт.

2

84141928

WIRE HARNESS

Rear

1шт.

3

87520382

LIGHT

Red, Right Hand

1шт.

3

87519398

LIGHT

Red, Left Hand

1шт.

4

87519394

LIGHT,12V, 21W, Amber

Amber

1шт.

5

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

16шт.

6

86992211

NUT

6шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

8

27601214

HOLDER

Seven Pin Connector Storage

1шт.

9

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Not Shown

1шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Not Shown

1шт.

11

84207339

FRAME

Inc. 12 - 13

1шт.

12

311863A1

REFLECTOR

Red

1шт.

13

311865A1

REFLECTOR

Flourescent

1шт.

14

84209394

FRAME

Left Hand, Inc. 15 - 17

1шт.

14

84209395

FRAME

Right Hand, Inc. 15 - 17

1шт.

15

311864A1

REFLECTOR

Yellow

1шт.

16

311863A1

REFLECTOR

Red

1шт.

17

311865A1

REFLECTOR

Flourescent

1шт.

18

409848A1

U-BOLT,5/8" - 11 x 127.80mm W x 107.81mm L, Spcl

BOLT "U" 5/8 x 5 x 4-1/4

2шт.

19

86992216

NUT

5/8 Stover

4шт.

20

86992215

LOCK NUT,1/2"-13, GC

4шт.

21

05302150

STAND

Not Shown

1шт.

23

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

25

30026030

TUBE

Manual Canister, Not Shown

1шт.
