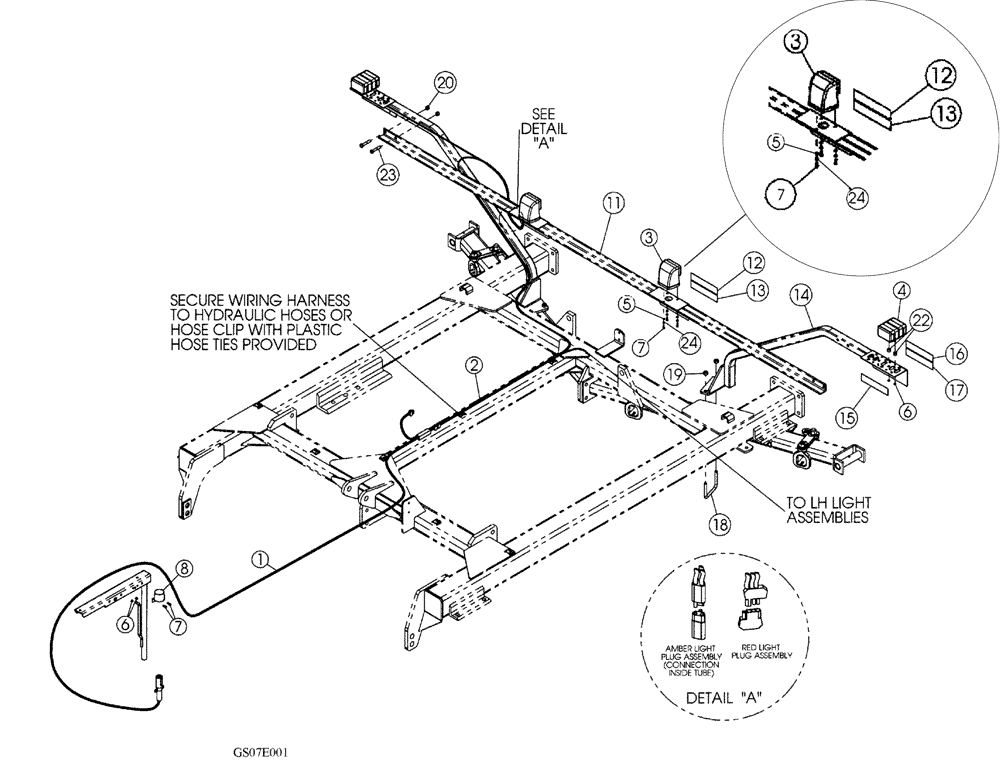

Запчасти Case IH 330 TRUE-TANDEM (55.404.02) - 25 FOOT LIGHT PARTS FOR 2008 AND PRIOR UNITS (55) - ELECTRICAL SYSTEMS

1

87446680

WIRE HARNESS

Front

1шт.

2

87635409

WIRE HARNESS

Rear

1шт.

3

87446791

LAMP

Red

2шт.

4

87446792

LAMP,12V, 21W, Amber

Amber

2шт.

5

495-81102

WASHER,.266" x 1/2" x .060"

1/4, Flat

6шт.

6

86992211

NUT

1/4, NC

6шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

8

27601214

HOLDER

Seven Pin Connector Storage

1шт.

9

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Not Shown

1шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 28", Black, Not Shown

1шт.

11

87634045

CROSSBAR

Crossbar, Assembly Tailight, Inc. 12 - 13

1шт.

12

311863A1

REFLECTOR

Red

1шт.

13

311865A1

REFLECTOR

Flourescent

1шт.

14

84209394

FRAME

Assembly Light Bracket, Lh, Inc. 15 - 17

1шт.

14

84209395

FRAME

Assembly Light Bracket, Rh, Inc. 15 - 17

1шт.

15

311864A1

REFLECTOR

Yellow

1шт.

16

311863A1

REFLECTOR

Red

1шт.

17

311865A1

REFLECTOR

Flourescent

1шт.

18

409848A1

U-BOLT,5/8" - 11 x 127.80mm W x 107.81mm L, Spcl

BOLT "U" 5/8 x 5 x 4-1/4

2шт.

19

85700693

NUT,5/8" - 11, Gr C

4шт.

20

86992215

LOCK NUT,1/2"-13, GC

Stover

4шт.

22

87449661

SPACER

Bushing Amber Light

4шт.

23

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

24

492-11025

LOCK WASHER,1/4"

6шт.

25

87459024

LENS

Red, Not Shown

1шт.

Used On 87446791 Lamp

1шт.

25

87459023

LENS

Amber, Not Shown

1шт.

Used On 87446792 Lamp

1шт.
