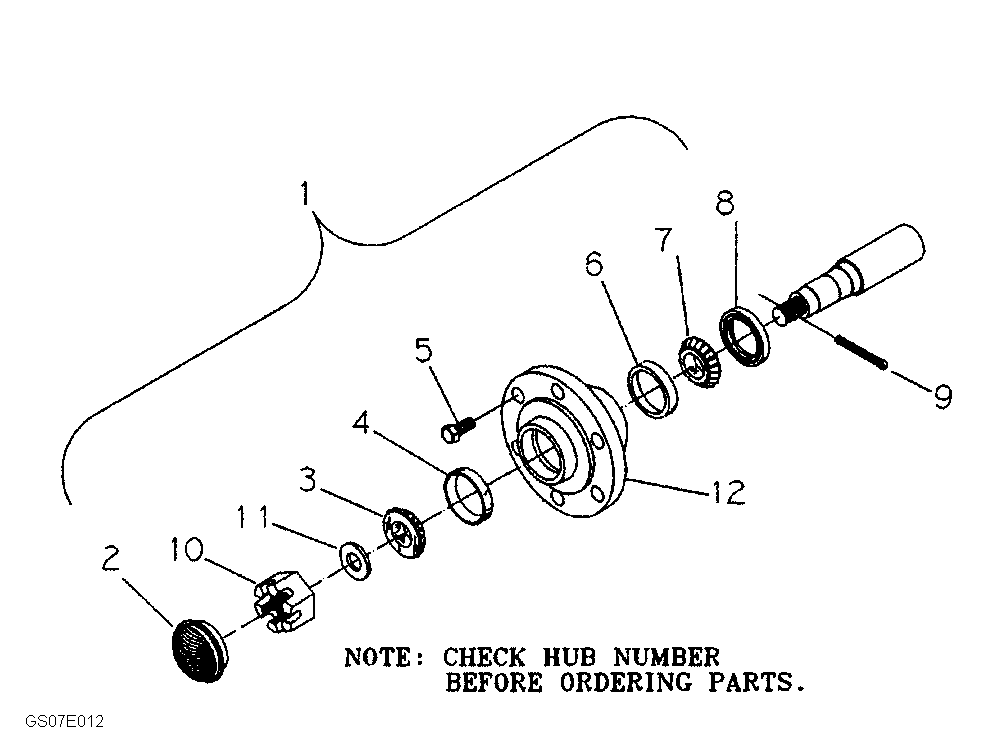

Запчасти Case IH 330 TRUE-TANDEM (44.100.07) - 710 HUB AND SPINDLE ASSEMBLY, GAUGE WHEEL (44) - WHEELS

1

28171000

HUB ASSY.

Q-710, 6-Bolt, Inc. 2 - 12

1шт.

2

28477700

HUB CAP

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken LM67048

1шт.

4

651817R1

BEARING CUP

2.33 OD, Timken LM67010

1шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2, NF, Lug

6шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56 OD, Timken, LM48510

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1.38, Timken LM48548

1шт.

8

614410R91

SEAL

1.63 ID x 2.63 OD, CR16322

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

11

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

1шт.

12

28270900

HUB ASSY.

1шт.

13

87327569

STUB AXLE/STEERING S

710, 1.875 OD

1шт.
