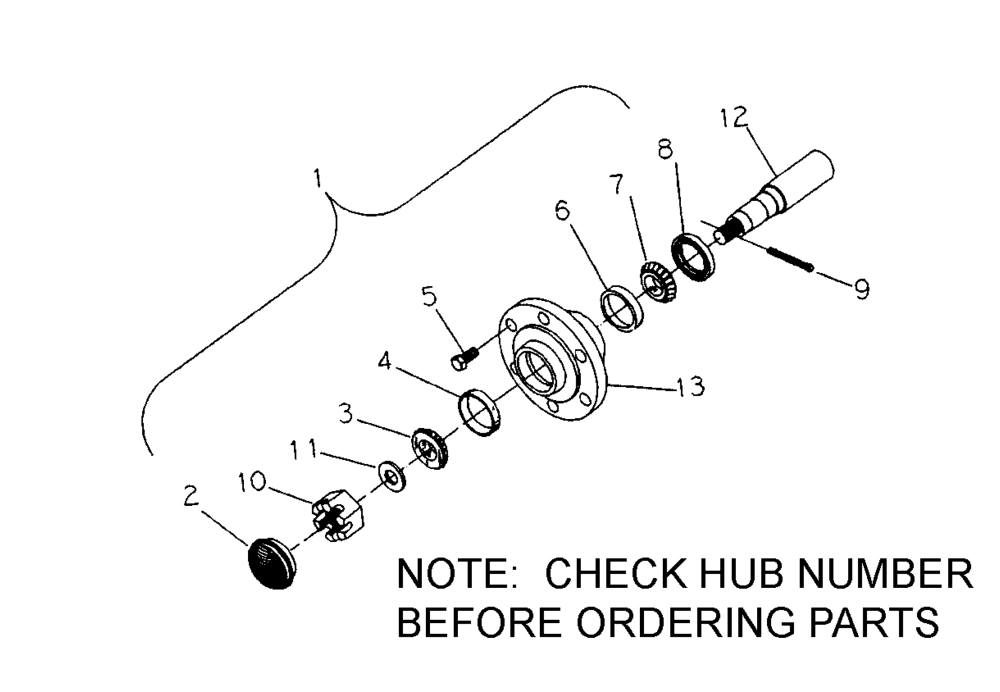

Запчасти Case IH 330 TRUE-TANDEM (44.100.06) - 633 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28163311

HUB ASSY.

633, 4-Bolt With Flat Head Bolts, Inc. 2 - 8, Coulter Hub

1шт.

2

28463300

HUB CAP

Coulter Hub

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

Bore .75, Timken LM11949, Coulter Hub

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

4

651814R1

BEARING CUP

1.78 OD, Timken LM11910, Coulter Hub

1шт.

5

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2 x 1-1/4, Hex, gd 5, Coulter Hub

4шт.

6

651817R1

BEARING CUP

2.33 OD, Timken LM67010, Coulter Hub

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore, Timken LM67048, Coulter Hub

1шт.

8

126621C1

SEAL

1.50 ID x 2.33 OD, CR1497, Coulter Hub

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

Coulter And Gauge Wheel 5/32" x 1 1/2"

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

3/4, NF, Slotted, Coulter Hub

1шт.

11

17413001

WASHER

3/4, Special Heavy, Coulter Hub

1шт.

12

28363331

SPINDLE

Coulter Hub

1шт.

13

28263340

HUB

633 With Cups, Coulter Hub

1шт.

14

28063331

HUB ASSY.

633 And Spindle, Coulter Hub

1шт.
