Запчасти Case IH 330 TRUE-TANDEM (44.100.02) - WING TANDEM 6-BOLT PARTS 22 AND 25 FOOT (44) - WHEELS

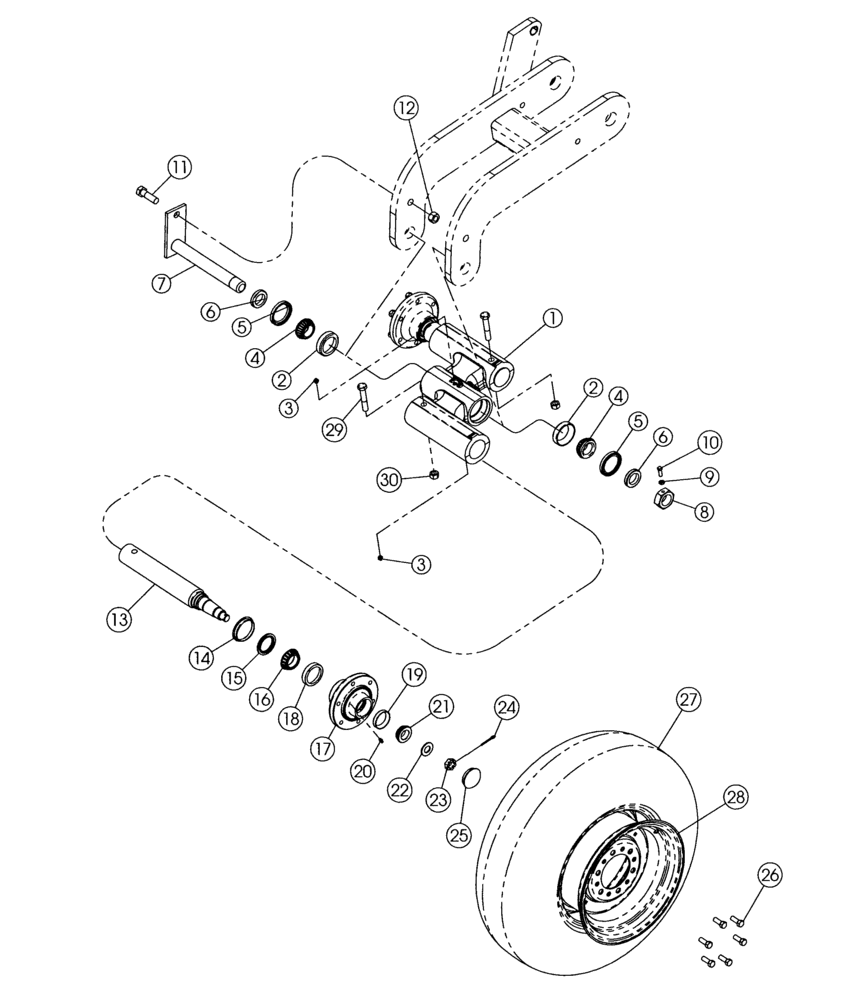

Схема запчастей Case IH 330 TRUE-TANDEM - (44.100.02) - WING TANDEM 6-BOLT PARTS 22 AND 25 FOOT (44) - WHEELS
6
9
24
18
16
5
23
28
26
4
30
25
12
14
6
3
20
21
2
13
3
1
19
15
11
4
27
7
10
22
5
29
17
8
2

Артикул

Название

Примечание

Количество

1

87561153

CASTING

6 Bolt Tandem Axle

1шт.

2

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

3шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 ID

2шт.

5

21932510

SEAL

2.29 ID

2шт.

6

06400573

SPACER

Bearing

2шт.

7

87401183

PIN,38.07mm OD x 325mm L

1-1/2, Tandem

1шт.

8

14032409

NUT

1-1/2, Jam

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Set, Square Head

1шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

13

87517011

STUB AXLE/STEERING S

6 Bolt

2шт.

14

594703R1

SLEEVE

Wear

2шт.

15

594702R91

SEAL

Type X15

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 ID

2шт.

17

87426111

HUB

Machined, Inc. 18, 19

2шт.

18

663558R1

BEARING CUP

2.892 OD

2шт.

19

651817R1

BEARING CUP

2.33 OD

2шт.

19

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 ID

2шт.

22

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

23/32 ID

2шт.

23

70120D

SLOTTED NUT,7/8"-14

7/8, Jam

2шт.

24

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

2шт.

25

224066C1

HUB CAP

2шт.

26

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

12шт.

27

NSS

NOT SOLD SEPARAT

12.5 L x 15 (10 Ply) I-1 Tubeless

2шт.

27

NSS

NOT SOLD SEPARAT

11L x 15 (8 Ply) I-1 Tubeless

2шт.

28

10110254

WHEEL ASSY.

15 x 10 lb SAE, Silver

2шт.

28

10108254

WHEEL

15 x 8 lb, Silver

2шт.

29

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

30

85700693

NUT,5/8" - 11, Gr C

2шт.

Выбрано товаров: 33
