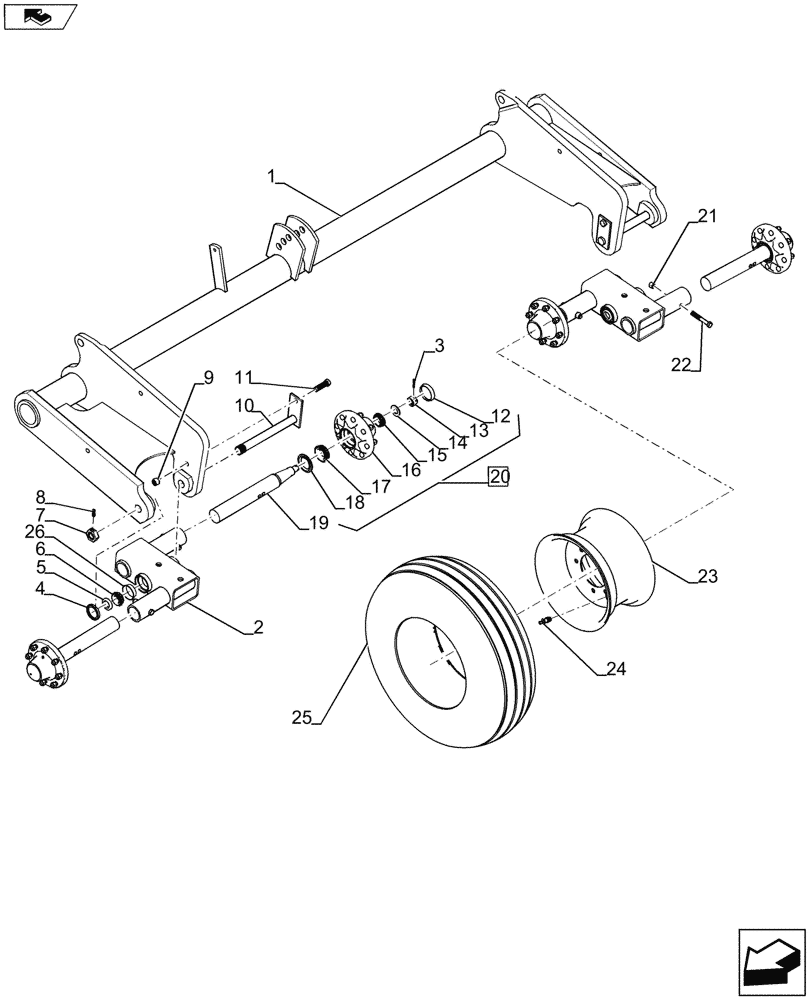

Запчасти Case IH 330 TRUE-TANDEM (44.100.01[02]) - MAIN FRAME ROCKSHAFT TANDEM 8-BOLT 34 ONLY (44) - WHEELS

1

84360623

ROCKSHAFT

1шт.

2

84359848

AXLE

Right Hand

1шт.

2

84359847

AXLE

Left Hand

1шт.

3

87400

COTTER PIN,3/16" x 2"

4шт.

4

21932510

SEAL

4шт.

5

06400573

SPACER

4шт.

6

21871501

BEARING CONE,38.1mm ID x 25.65mm W

4шт.

7

14032409

NUT

1.5"- with 3/8-16 thread for set screw

2шт.

8

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

2шт.

9

280375

NUT,3/4"-10, GC

4шт.

10

87484798

PIN

Pin O.A.L. Of 15.940, Dia Of Pin 1.500, Top Of Pin To Top Of Plate 15.00

2шт.

11

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

12

560950R1

HUB CAP

4шт.

13

86632555

SLOTTED NUT,1 1/8"-12, G5

4шт.

14

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

4шт.

15

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

4шт.

16

87407202

HUB

4шт.

17

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

4шт.

18

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

4шт.

19

86990944

SPINDLE,557mm L

4шт.

20

86989139

HUB

4шт.

21

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

22

85700693

NUT,5/8" - 11, Gr C

4шт.

23

84145657

RIM

Wheel, 16.5 X 9.75, Silver

1шт.

24

810769C1

VALVE

1шт.

25

Tire, 3 Ply, 12.5L-16.5 SL 14PR, Procure Locally

1шт.

26

21883000

BEARING, CUP,76.2125 mm OD x 23.9135 mm

Race

1шт.
