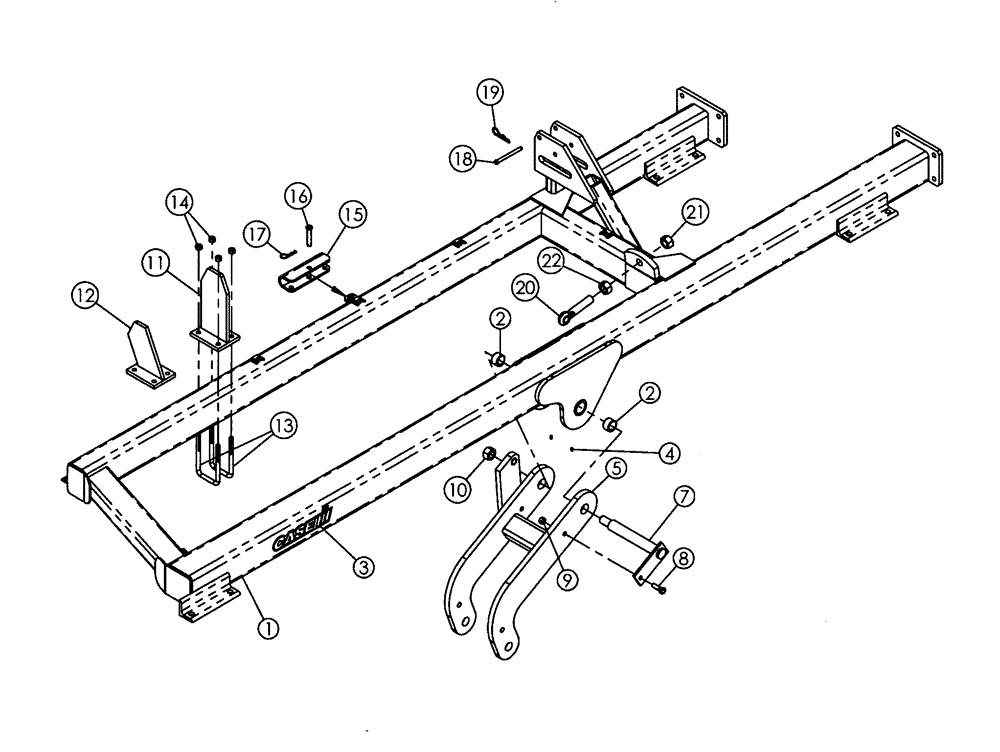

Запчасти Case IH 330 TRUE-TANDEM (39.100.05) - WING FRAME PARTS (QUANTITY PER WING) (39) - FRAMES AND BALLASTING

1

451360A1

FRAME ASSY

Wing, Lh, 22 Foot, Inc. 2 - 4

1шт.

1

451357A1

FRAME ASSY

Wing, Rh, 22 Foot, Inc. 2 - 4

1шт.

1

451357A1

FRAME ASSY

Wing, Rh, 25 Foot, Inc. 2 - 4

1шт.

1

451360A1

FRAME ASSY

Wing, Lh, 25 Foot, Inc. 2 - 4

1шт.

1

87376951

FRAME ASSY

Wing, Rh, 31 Foot, Inc. 2 - 4

1шт.

1

87376964

FRAME ASSY

Wing, Lh, 31 Foot, Inc. 2 - 4

1шт.

1

87376951

FRAME ASSY

Wing, Rh, 34 Foot, Inc. 2 - 4

1шт.

1

87376964

FRAME ASSY

Wing, Lh, 34 Foot, Inc. 2 - 4

1шт.

2

380134A1

BUSHING,44.65mm ID x 51.61mm OD x 31.75mm L

Connex, 2 x 1-3/4 x 1-1/4

2шт.

3

87595770

DECAL

CIH Logo

1шт.

Used On 2007 And Prior Models

1шт.

3

87594280

DECAL

CIH Logo

1шт.

Used On 2008 And After Models

1шт.

3

87653276

DECAL

CIH Logo

1шт.

Used on 2009 and After Models

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

441856A1

ARM ASSY.

Wing Tandem Wheel, Lh

1шт.

5

441857A1

ARM ASSY.

Wing Tandem Wheel, Rh

1шт.

7

441862A1

PIN

Tandem, 1-1/4, NC

1шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

9

85700693

NUT,5/8" - 11, Gr C

1шт.

10

86992220

NUT

1-1/4, NC

1шт.

11

87343610

STOP

Wing, 22 And 25, 340 mm

1шт.

12

87343574

STOP

Wing, 34 Foot Short, 229mm

1шт.

13

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 6

4шт.

14

85700693

NUT,5/8" - 11, Gr C

8шт.

15

87404919

STOP

Transport

1шт.

16

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/4

1шт.

17

14720411

COTTER PIN

PIN, COTTER 1/8 x 2

1шт.

18

439-5892

HEADED PIN,1/2" x 5 3/4", G5

1шт.

19

1978738C1

HAIR PIN COTTER

3/16" x 3

1шт.

20

87568977

EYEBOLT

1-1/4, NC

1шт.

21

425-1020

NUT,1 1/4"-7, G5

1шт.

22

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.
