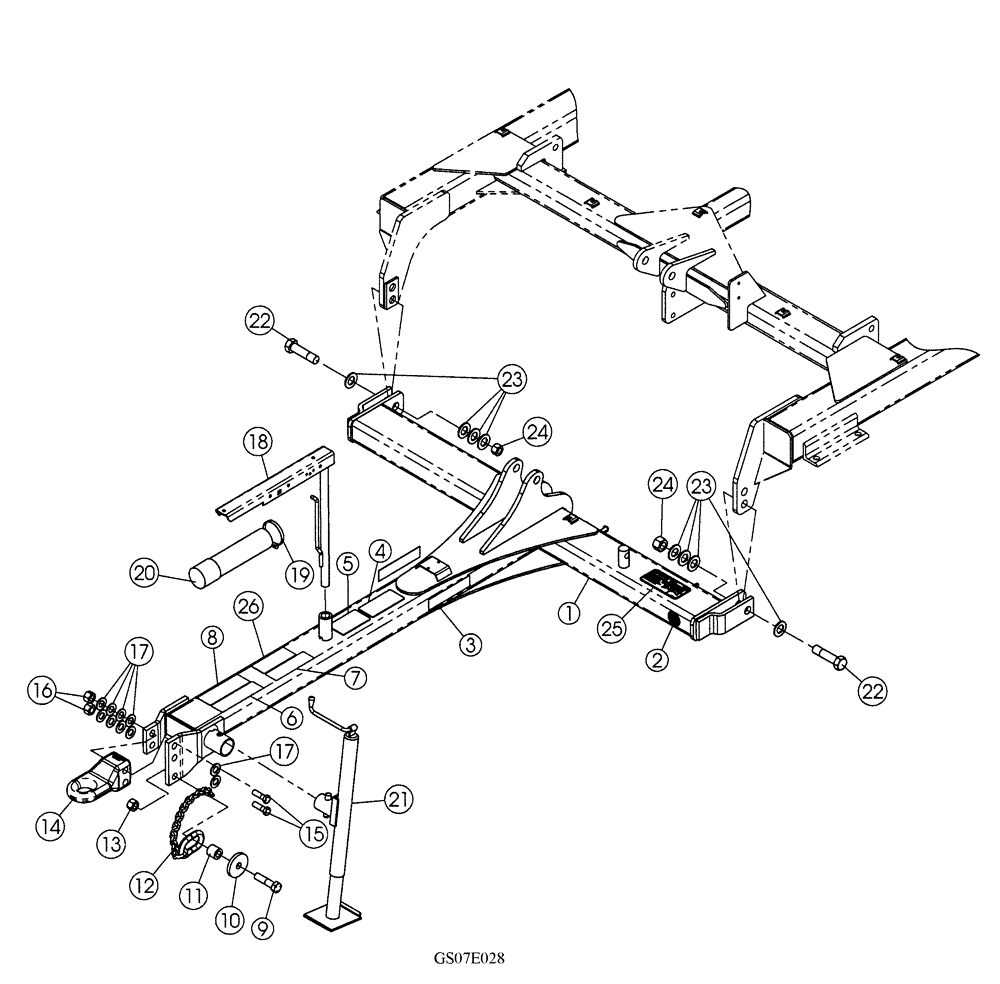

Запчасти Case IH 330 TRUE-TANDEM (39.100.04) - PULL FRAME PARTS 2010 AND AFTER MODELS (39) - FRAMES AND BALLASTING

1

84302874

U-FRAME

Hitch, 22 Foot

1шт.

1

84305544

U-FRAME

Hitch, 25 Foot

1шт.

1

84299723

U-FRAME

Hitch, 31 Foot

1шт.

1

84328060

U-FRAME

Hitch, 34 Foot

1шт.

2

147782C1

DECAL

1шт.

3

311864A1

REFLECTOR

Amber

2шт.

4

18534228

DECAL

Caution

1шт.

5

18534282

WARNING DECAL

1шт.

6

87673548

DECAL

Overhead Powerlines

1шт.

7

87673549

DECAL

Tipping Hazard

1шт.

8

87672316

DECAL

Towing Hazard

1шт.

9

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

10

06400065

WASHER

Heavy, Safety Chain

1шт.

11

340324A1

BUSHING

Safety Chain

1шт.

12

87393082

CHAIN

20, 200 lb, 19-25 ft

1шт.

12

87389757

CHAIN

30.400 lb, 31-34 ft

1шт.

13

86992219

LOCK NUT

Stover

1шт.

14

362933A1

HITCH

Perfect, Cat III 19-25 ft

1шт.

14

362934A1

HITCH ASSY

Perfect, Cat IV, 28-34 ft

1шт.

14

87432117

HITCH ASSY

Double, Cat II, Not Shown

1шт.

15

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

14

9602203

BOLT,Hex, 3/4" x 5", Gr 8

Double, Cat II, Not Shown, Mounting Hardware

1шт.

16

86992219

LOCK NUT

2шт.

14

86992217

NUT

Double, Cat II, Not Shown, Mounting Hardware

1шт.

17

495-11106

WASHER,1", SAE

10шт.

18

05302150

STAND

Hose

1шт.

19

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

20

30026030

TUBE

Manual Canister

1шт.

21

32252000

JACK ASSY.

1шт.

21

32230000

JACK

5000 lb

1шт.

22

252079A1

BOLT

1-1/4 x 5, NC, gr 8

2шт.

23

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

8шт.

24

86992220

NUT

1-1/4, NC

2шт.

25

87425680

DECAL

Important, Jack Damage

1шт.

26

87668160

DECAL

Warning, Transport Turning Hazard

1шт.
